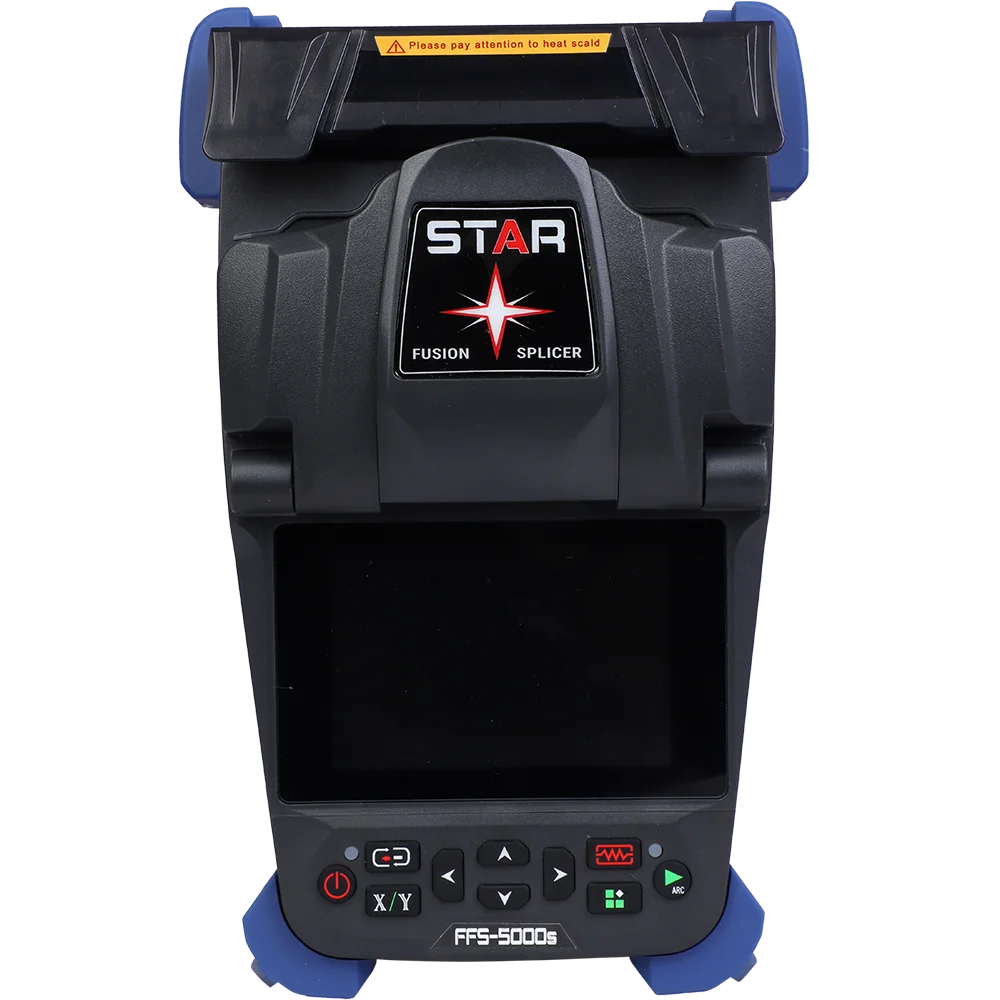

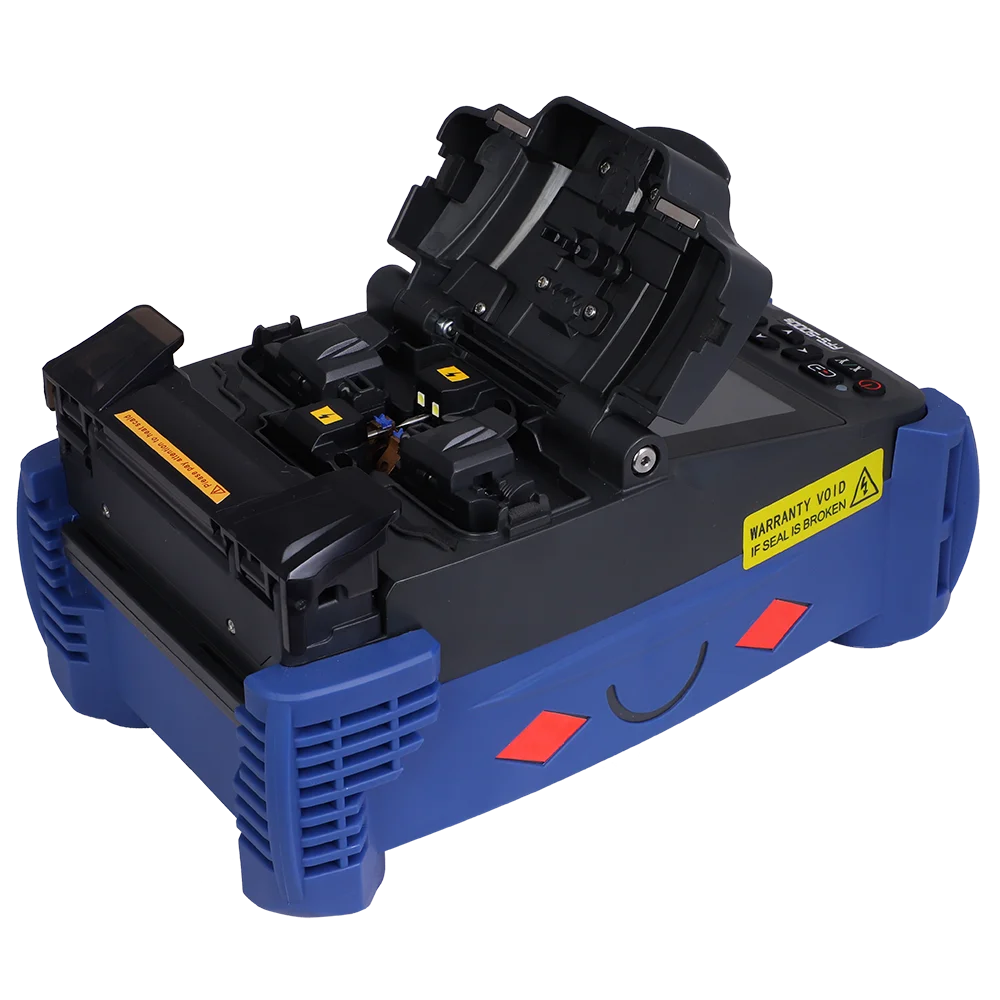

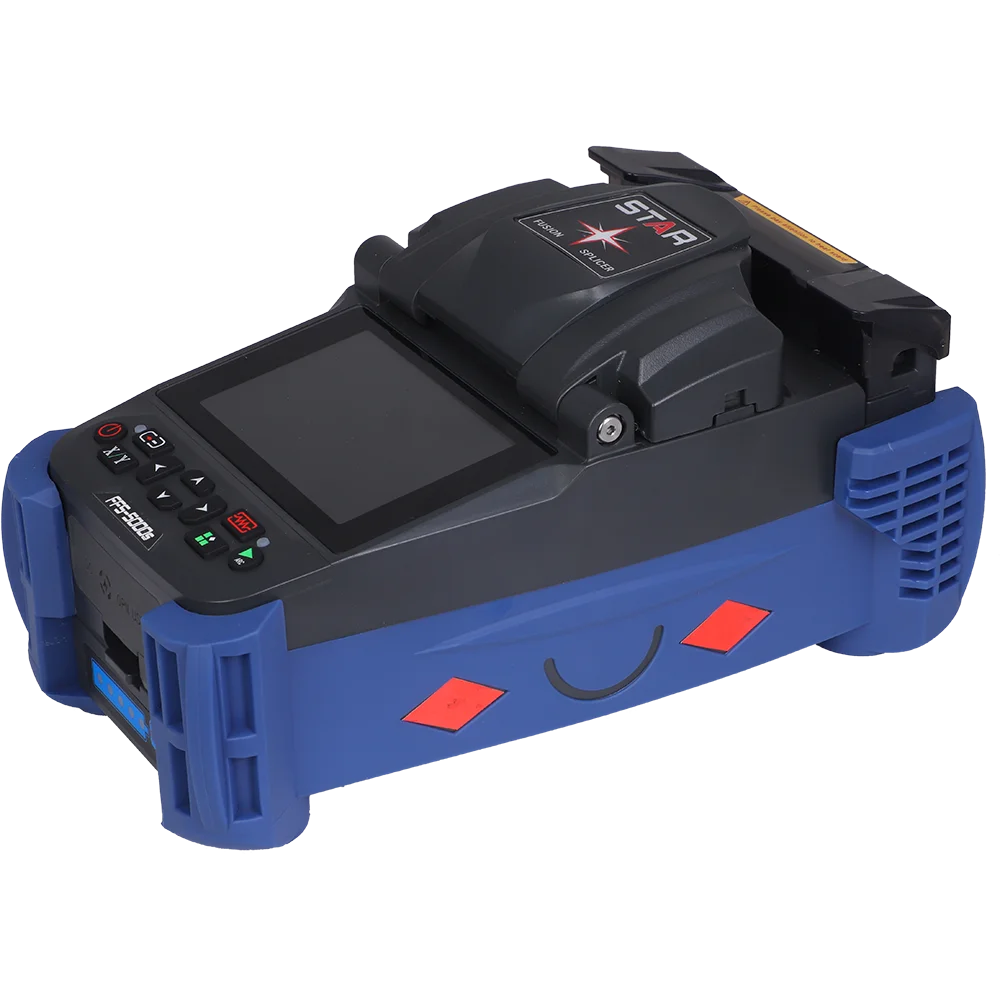

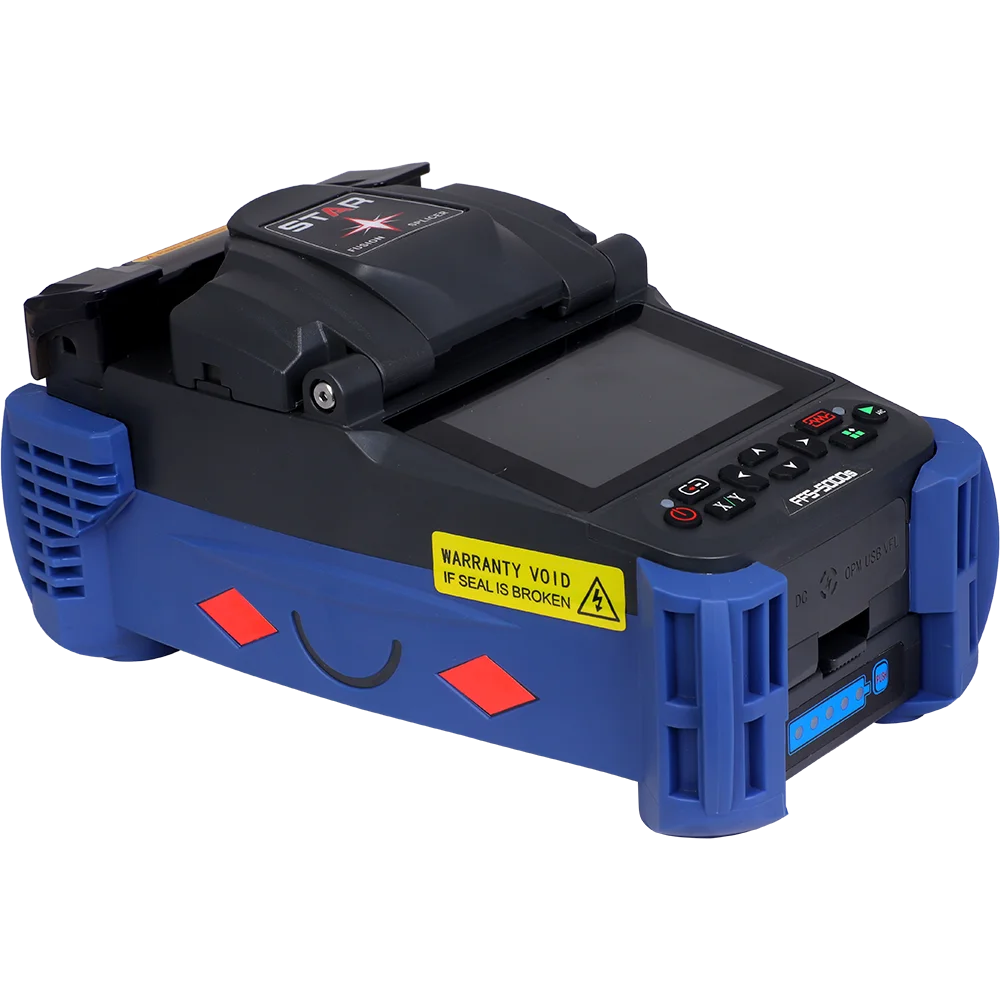

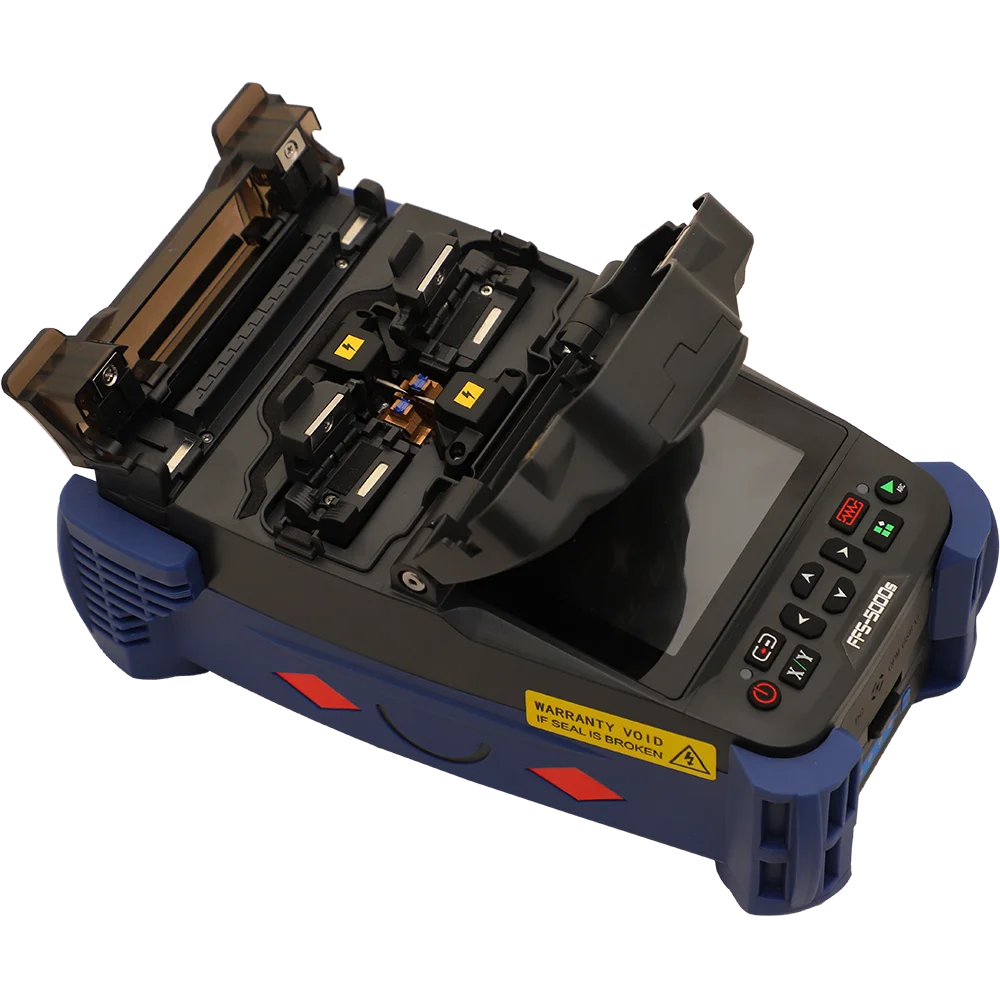

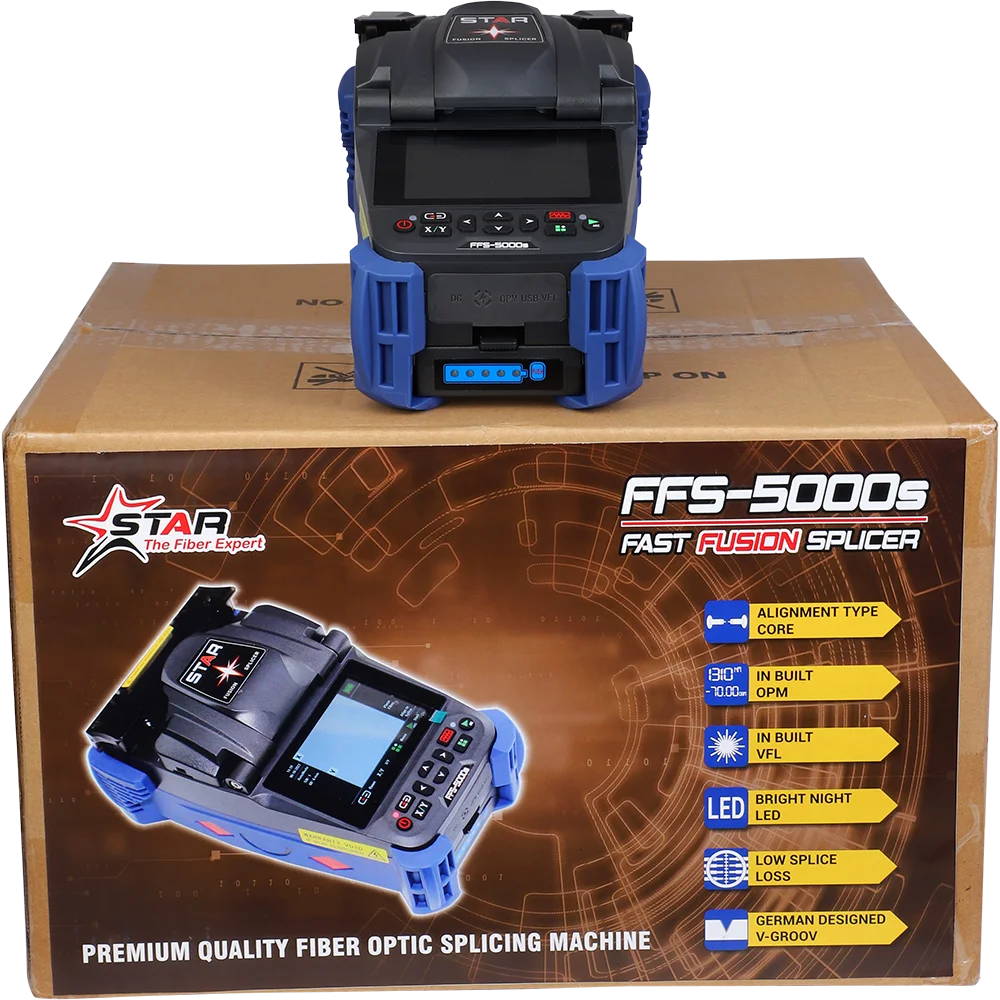

FFS-5000s Fusion Splicer

The Star FFS-5000s Fusion Splicer is a groundbreaking FTTX fusion splicer, it is a flat-screen machine with an integrated optical power meter and VFL (Visual Fault Locator). This advanced splicing machine boasts an ergonomic design and a compact, smaller size, enhancing portability and ease of use.

Equipped with a high-power lithium-ion rechargeable battery, the FFS-5000 supports up to 200 continuous splices and heating cycles on a single charge. As one of the most innovative flat-screen fusion splicers available, it features a built-in digital camera for precise optical power measurements, making it a top choice for modern fiber optic splicing needs.

Category: Fusion Splicers

Description

The Star FFS-5000s Fusion Splicer is a revolutionary splicing machine featuring an integrated optical power meter and an ergonomic flat-screen design. This advanced fusion splicer utilizes the German V-Groove Core Alignment Splicing Method, offering precise core-to-core alignment with strong wind and dust resistance.

Lightweight and compact, the FFS-5000s includes an adjustable strap hanger and exceptional magnification for ease of use. Its high-resolution screen provides a crystal-clear display, enhancing user experience. The setup is designed for durability, low maintenance, and efficient performance, ensuring a long service life. Developed in collaboration with experienced technicians and engineers, the Star FFS-5000s offers superior operation compared to other splicing machines on the market.

Specifications

Splicer Type	Single Fiber Fast Fusion Splicer
Fiber Alignment	High Precision PAS Alignment
Applicable Fibers	Single / SMF (G.652/652D), MMF (G.651), DSF (G.653), NZDSF (G.655), G657A, G657B etc.
Splicing Time	9 Sec. [SM Fast] Program
Heating Time	13 Sec. (Adjustable) Sleeve 60mm, Sleeve 40mm Coating
Splice Loss	Low Loss Joining: Average – 0.02db (SMF), 0.01db (MMF), 0.04db (NZ/DS)
Heating Programs	30 Pre Set Program & User Definable
Cleave Length	5mm to 16mm
Splicing Programs	30 Pre Set Program & 100 User Definable
Splice Data Storage	10000 Results
Tension	2N
Screen	4.3 inch High Definition LCD Colour Screen
Fiber Magnification	300x for X or Y single axis view, 150x for both X&Y dual axis view
Loss Estimation	Provided
Electrode Life	5000 arc discharges
Operating Condition	Altitude 0~5500m, Humidity 0~95%, Temperature -20 to +60 Degrees Centigrade & Wind Velocity up to 15 m/sec
Power Supply	AC to DC Adaptor 100-240v, 50/60Hz & 12V Car Charger Type Power Adaptor

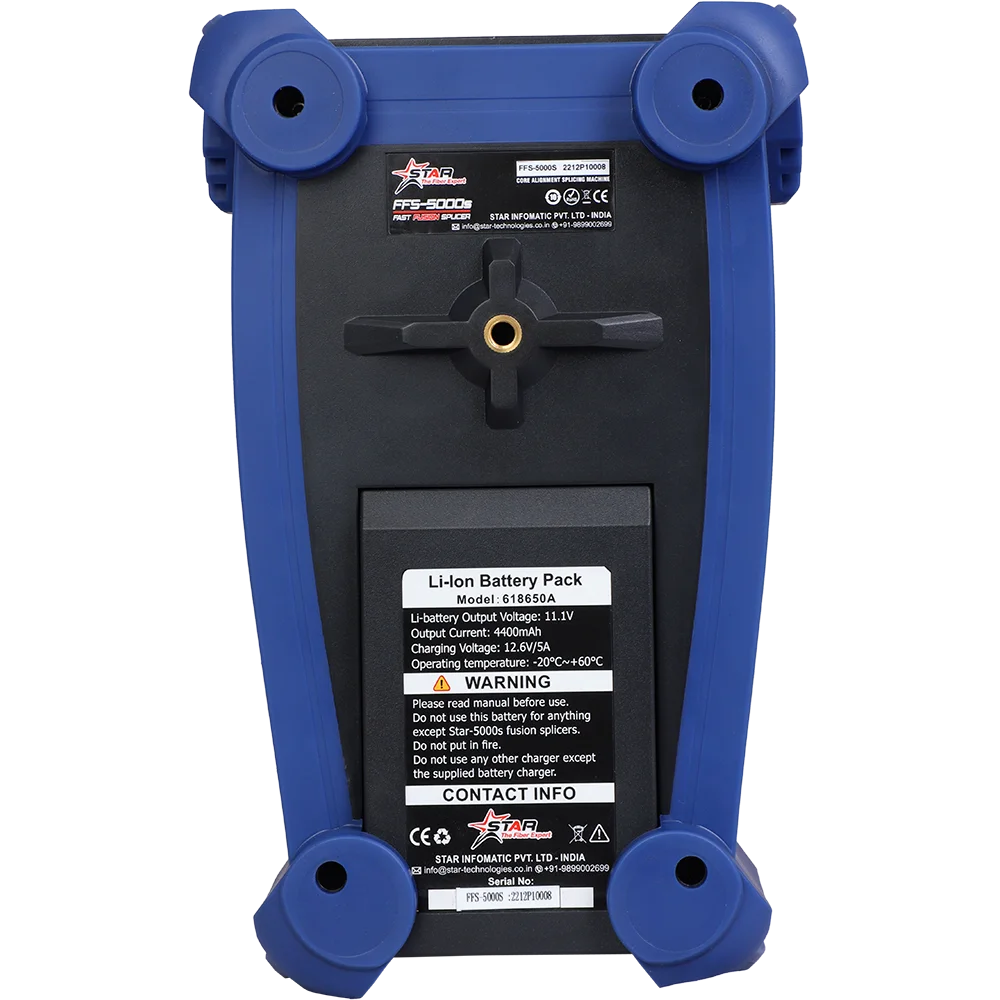

Battery Parameters	4400mAh High Capacity Li-Ion Battery
Port	DC Charging, USB 2.0
Size & Weight	(210x130x145) mm (1.1)kg (1.3kg with battery)
Holder Type	Multi-functional Fiber Holder for Easy Splice of Couplers, Patch Cords & All Fiber Types
Durability	Shock Resistance, Dust Resistance and Water Resistance
Battery Usage	Typical Operating More than 150 (splice / heat shrink) on a Single Charge of 3 hours
