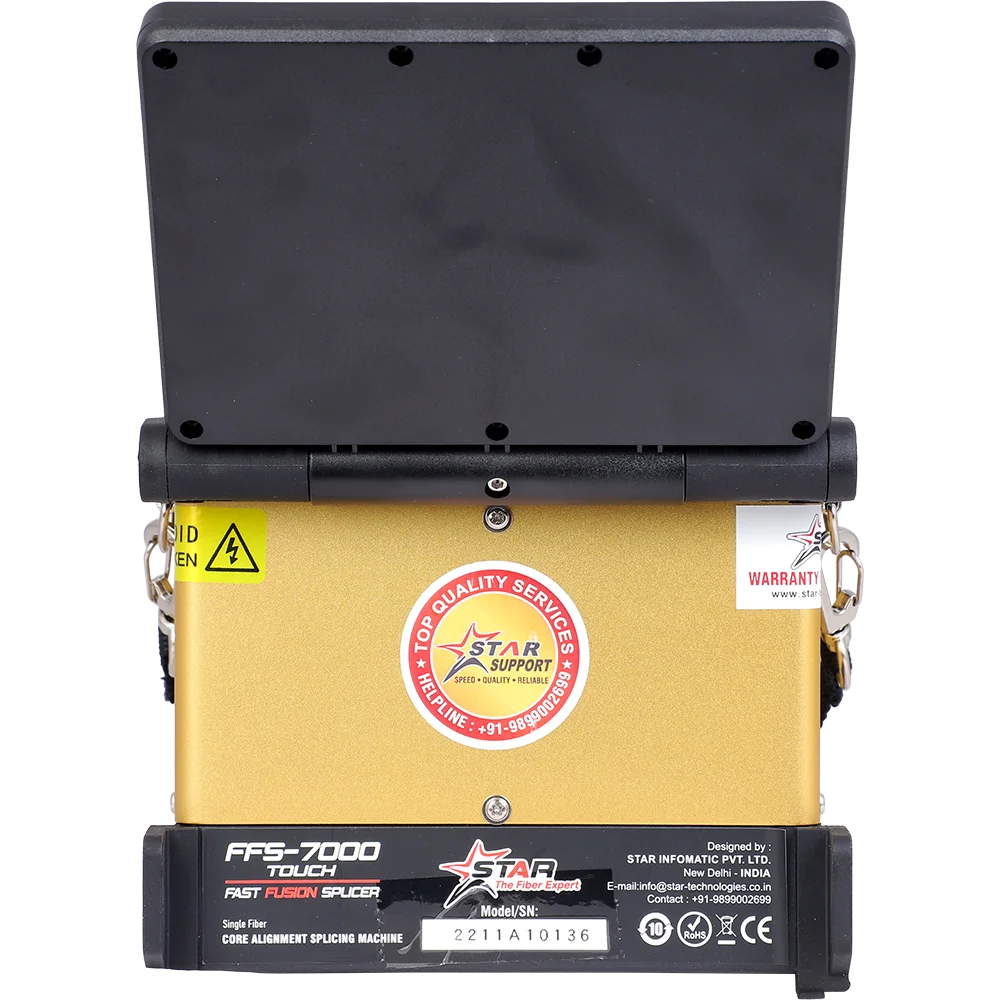

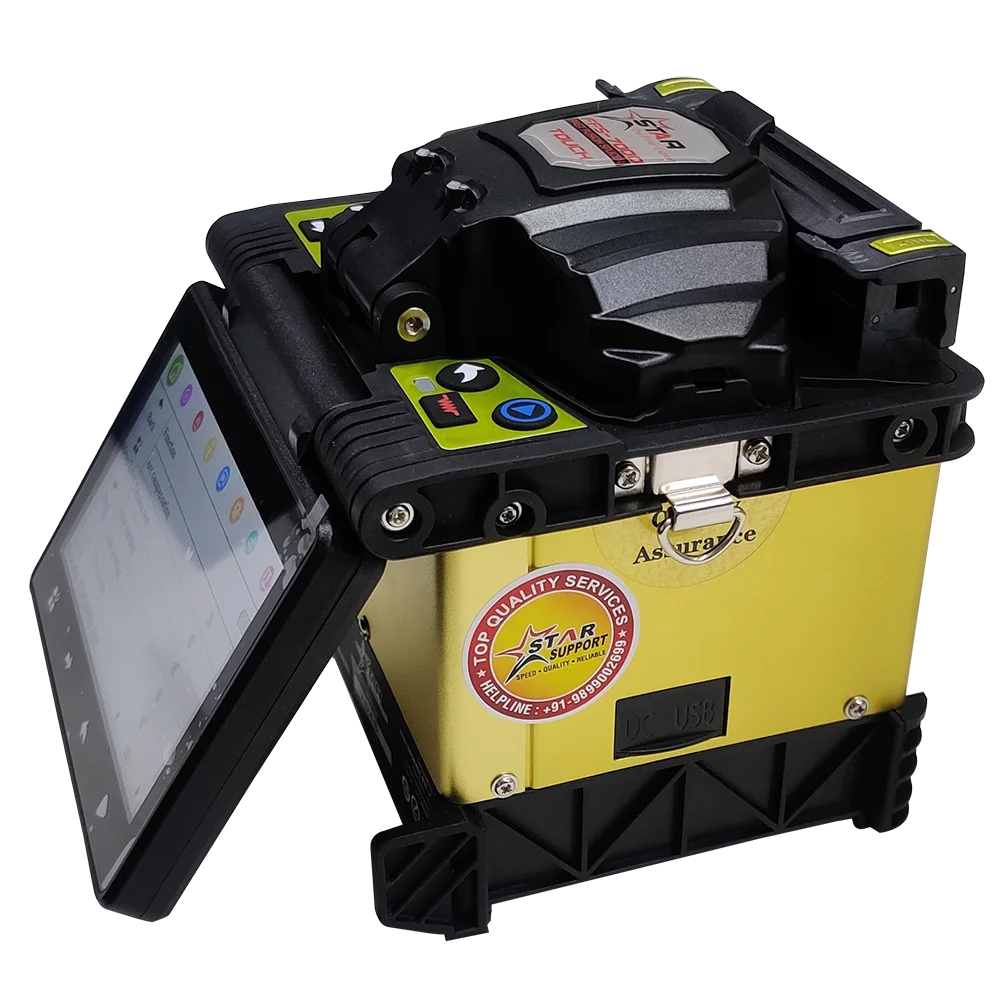

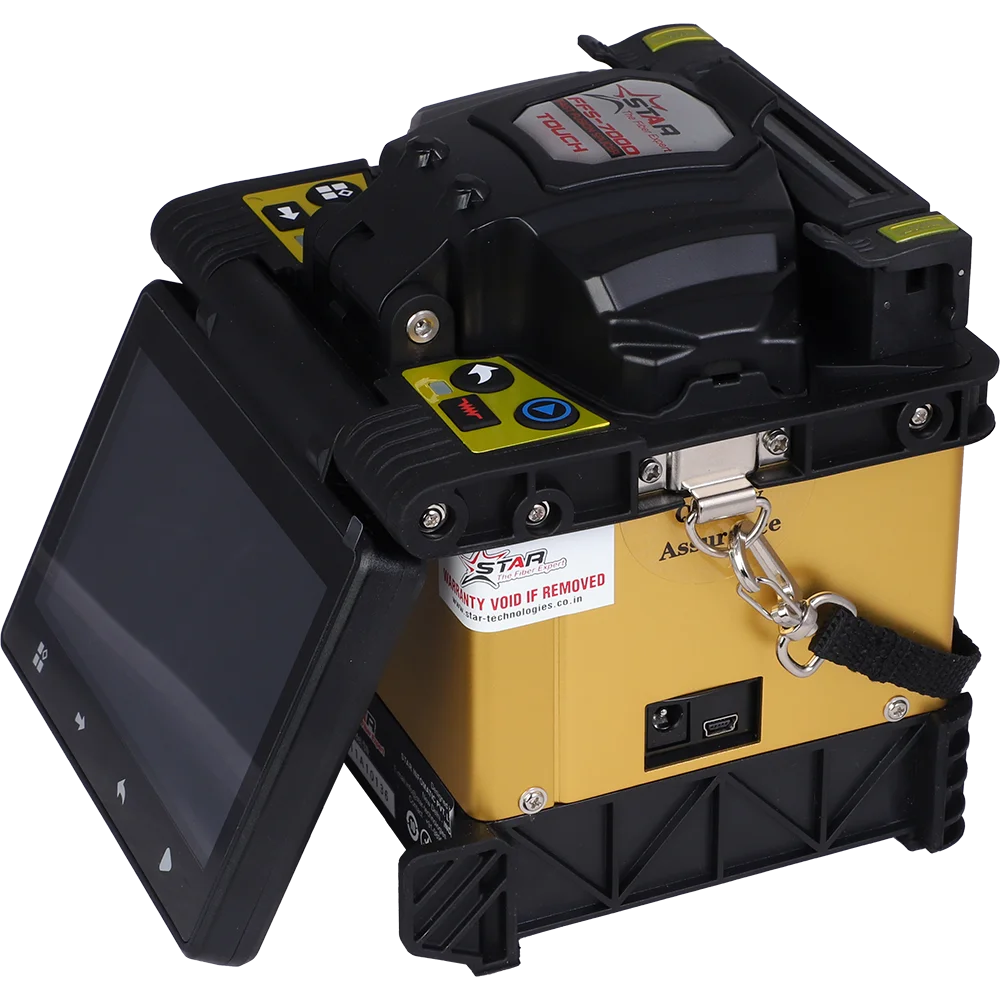

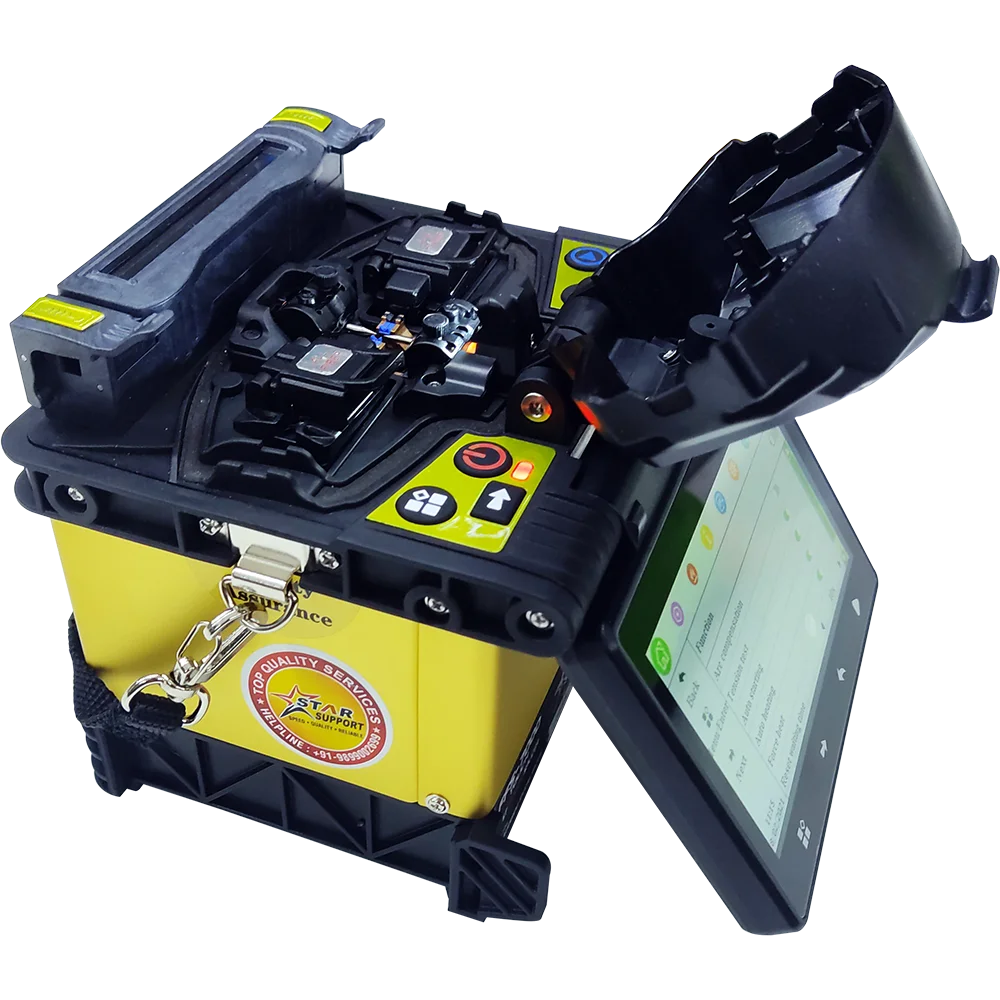

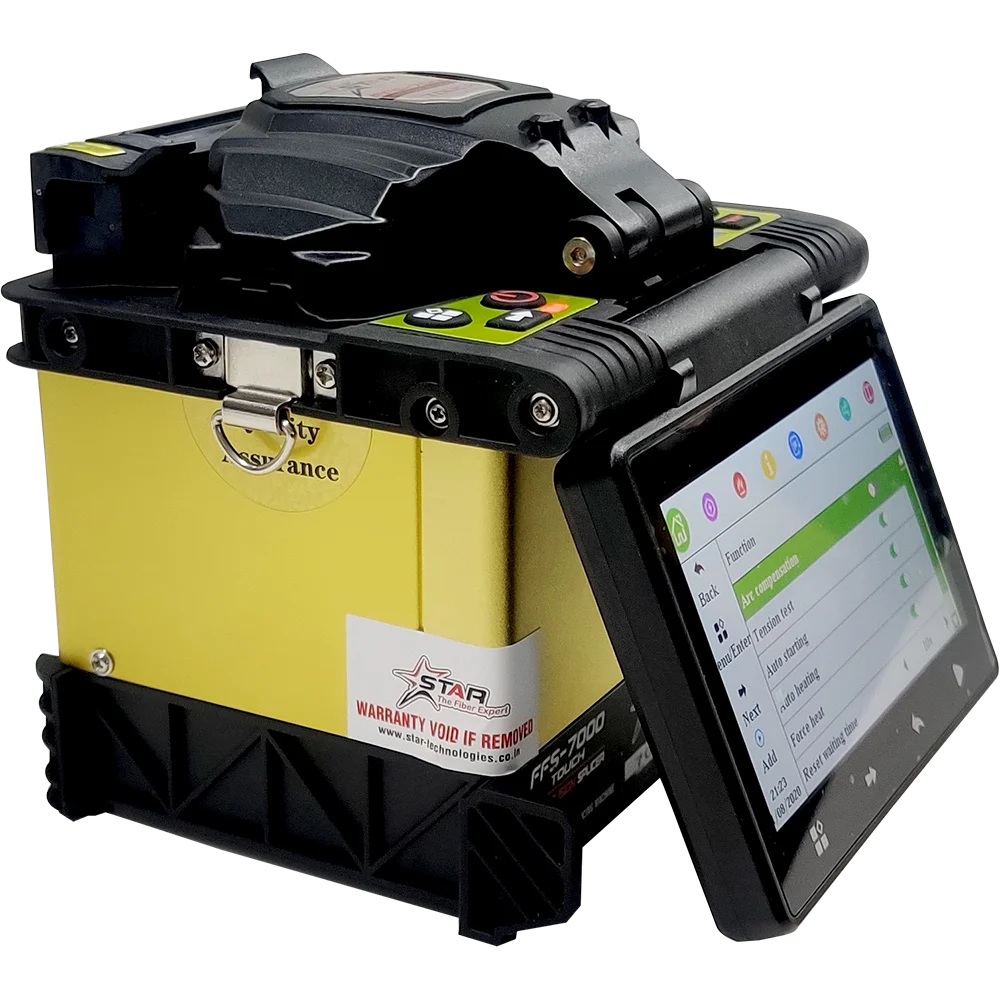

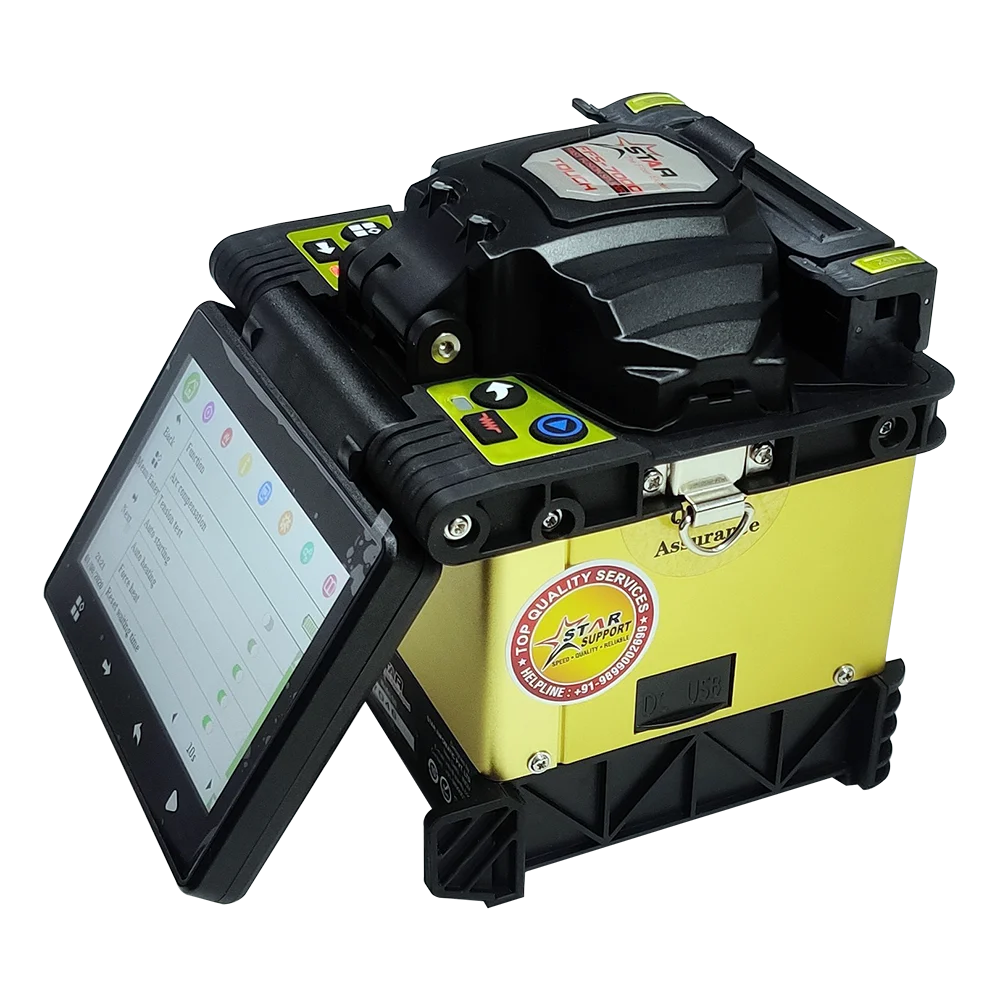

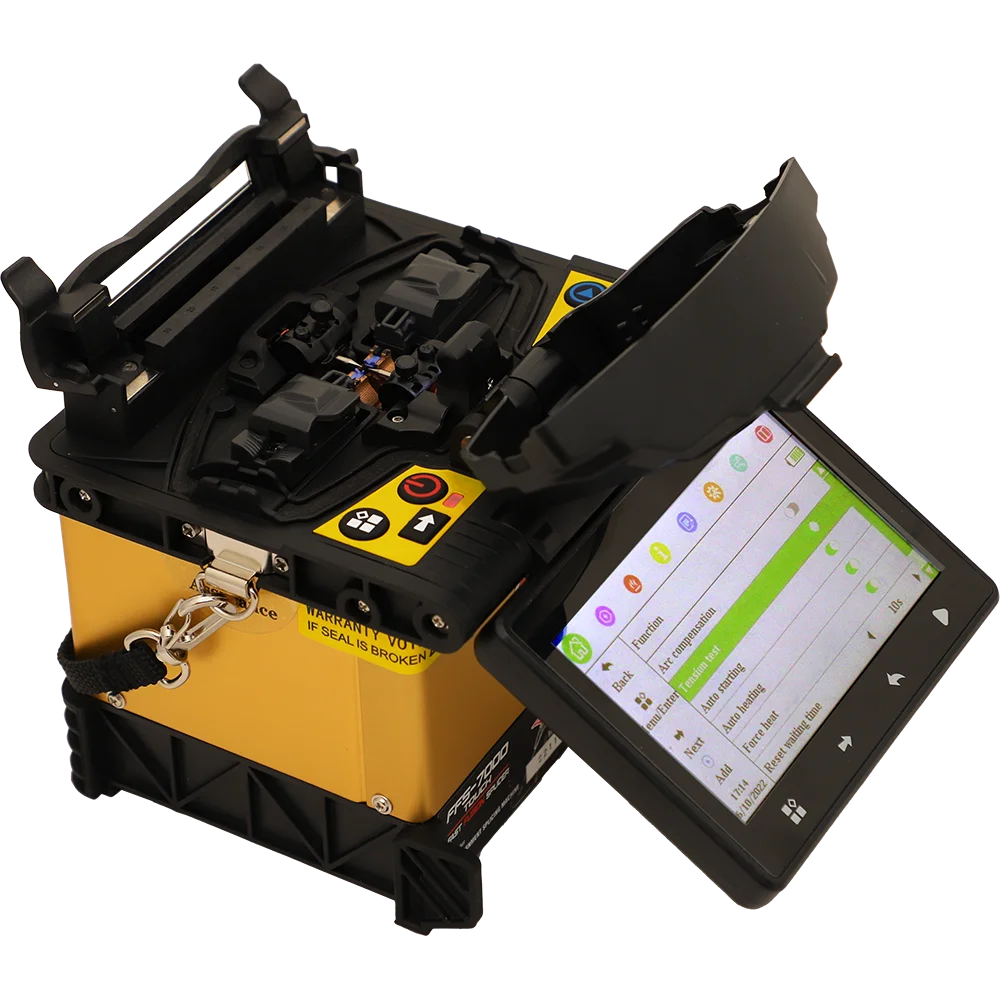

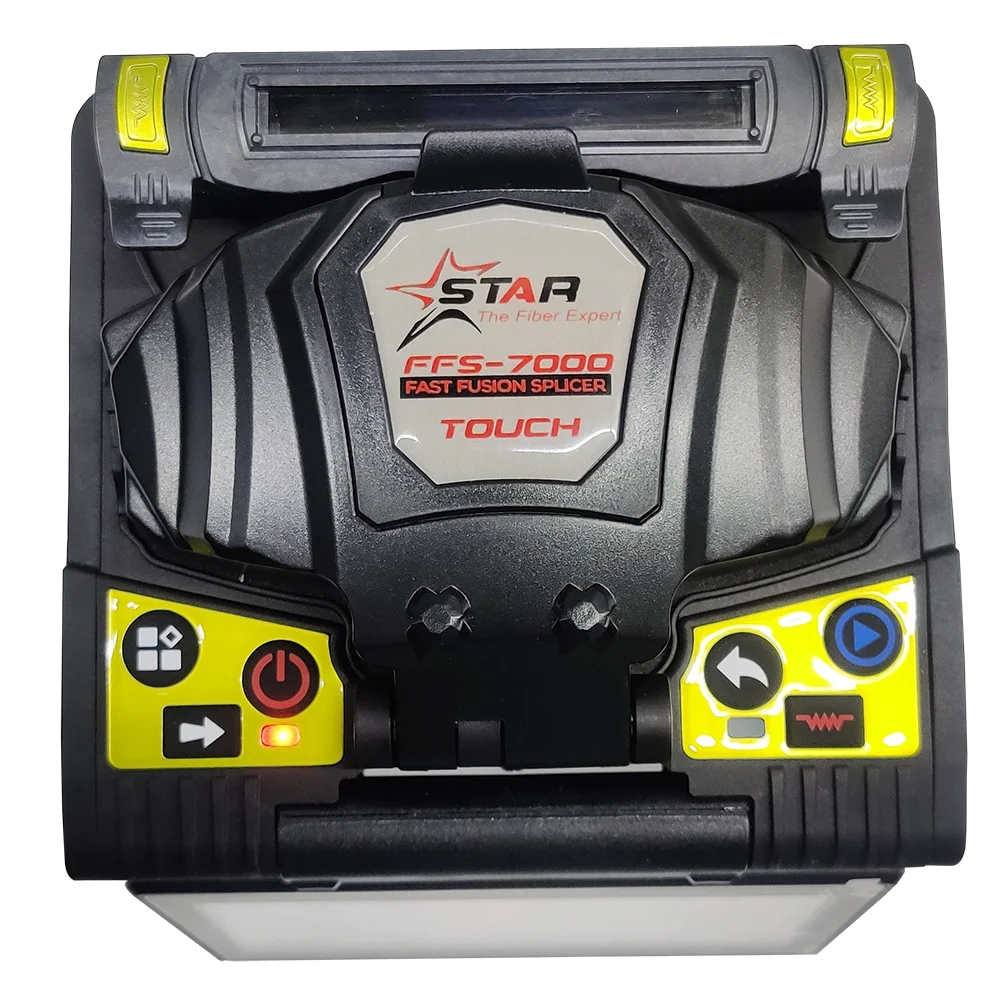

FFS-7000 Fusion Splicer

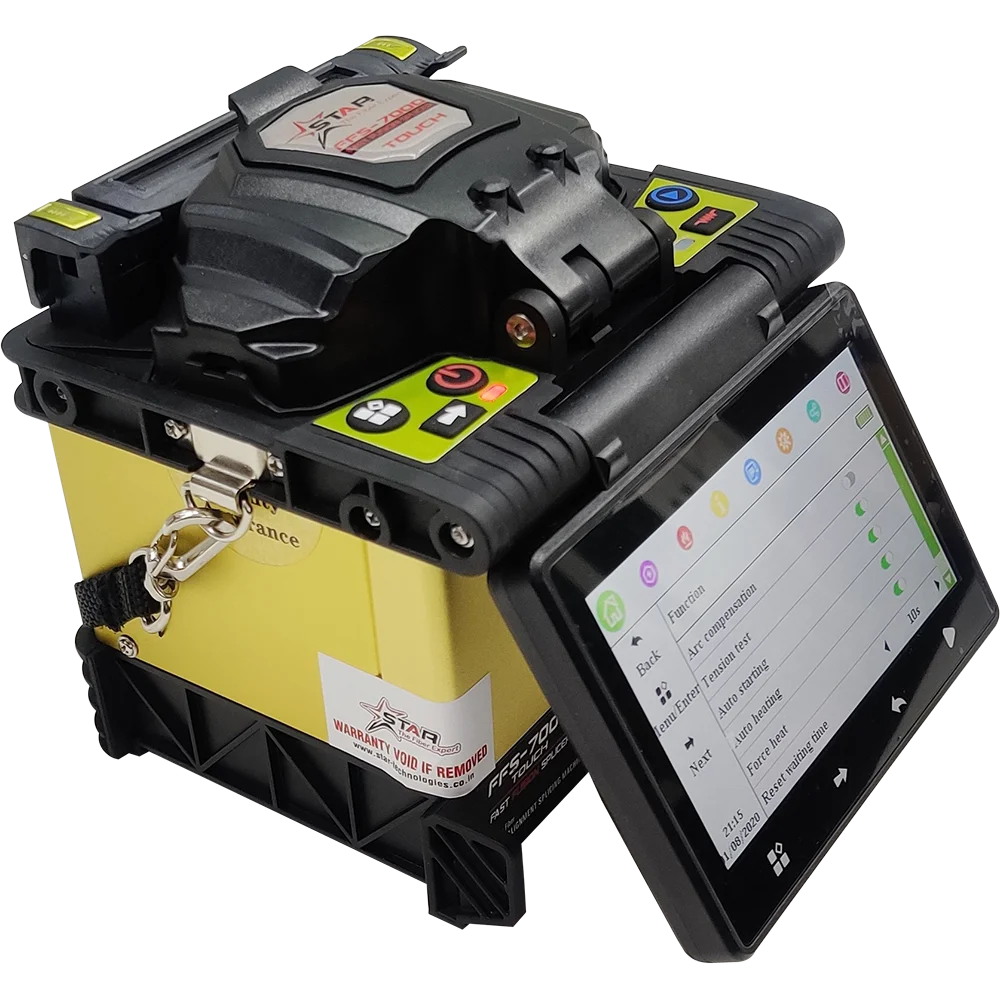

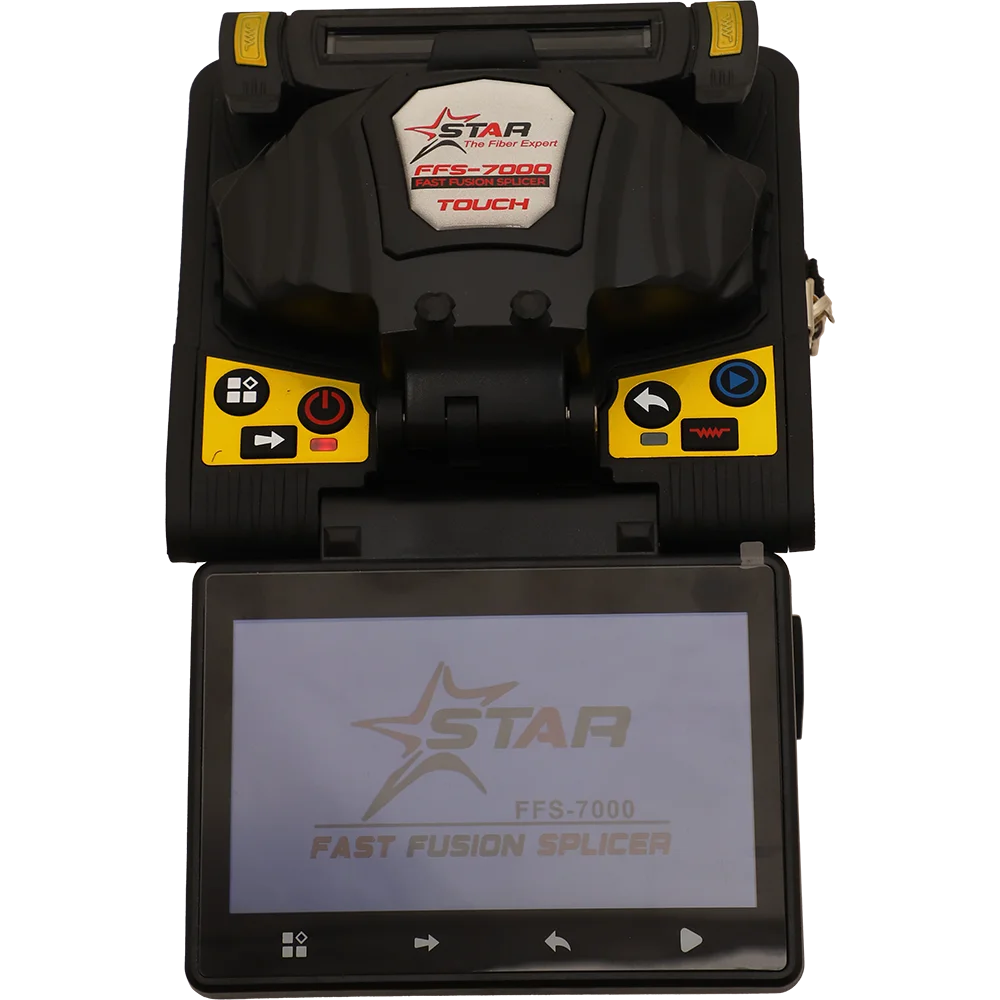

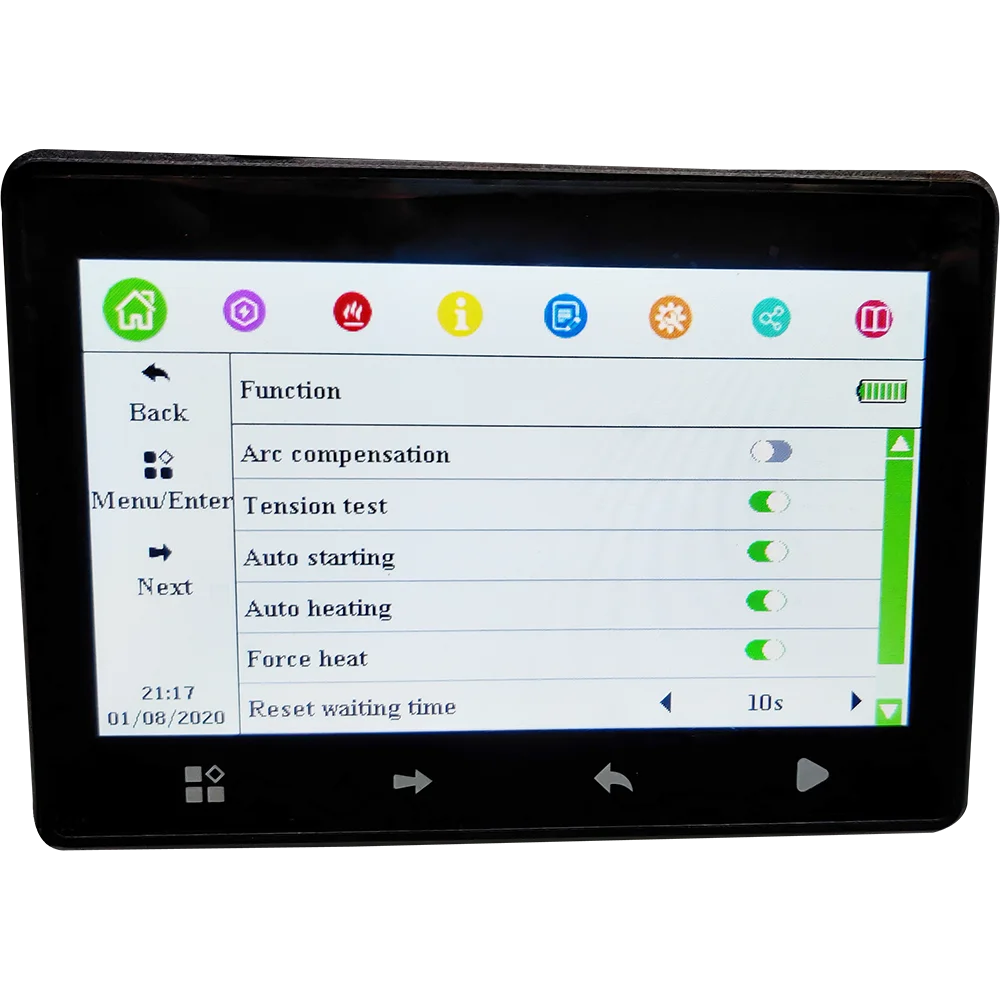

The Star FFS-7000 Optical Fiber Fusion Splicer is a cutting-edge splicing machine featuring a sharp, high-definition 5-inch LCD touch screen that displays all parameters and data, simplifying operation and reducing time consumption. Designed for outdoor use, this fusion splicer has a powerful output light visible even at night.

With its 3D fiber view and built-in automatic fiber type identification, the FFS-7000 stands out as one of the most advanced splicing machines available. Its high-tech features ensure efficient and effective performance, making it a top choice for modern fiber optic splicing needs.

Category:

Description

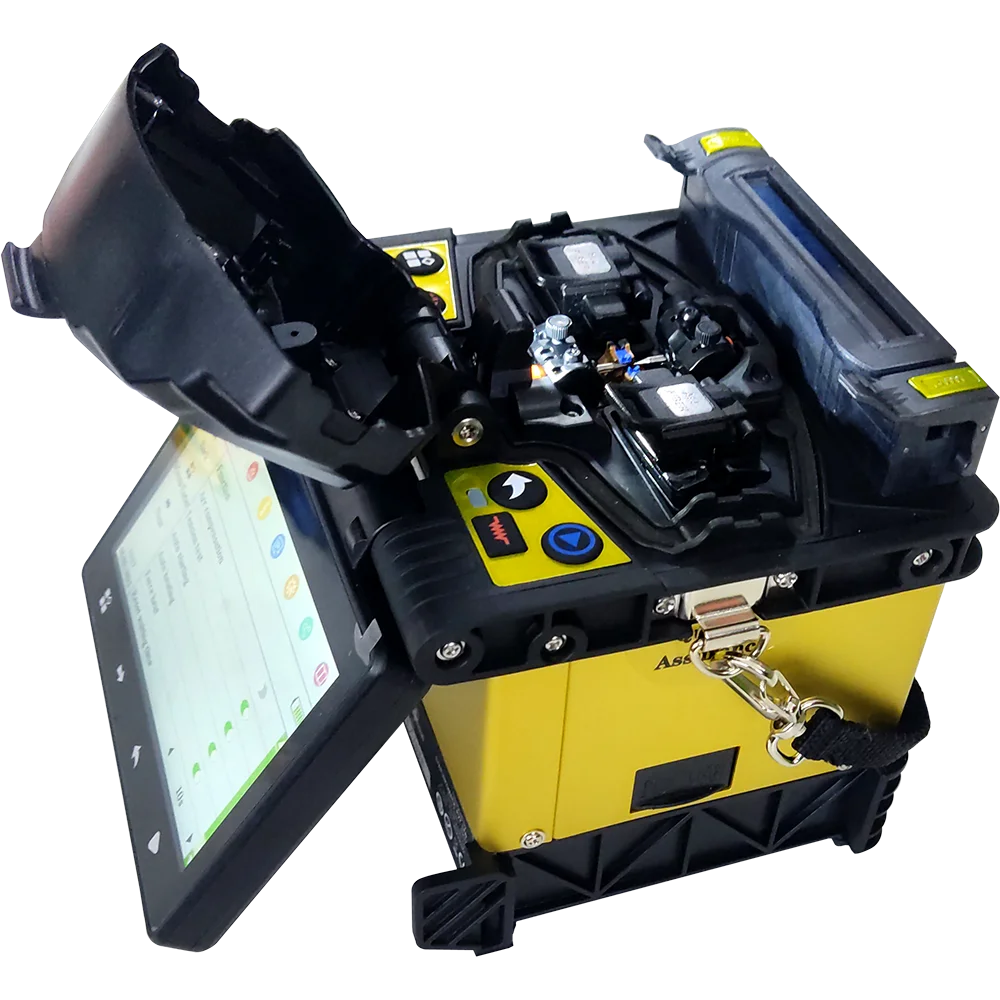

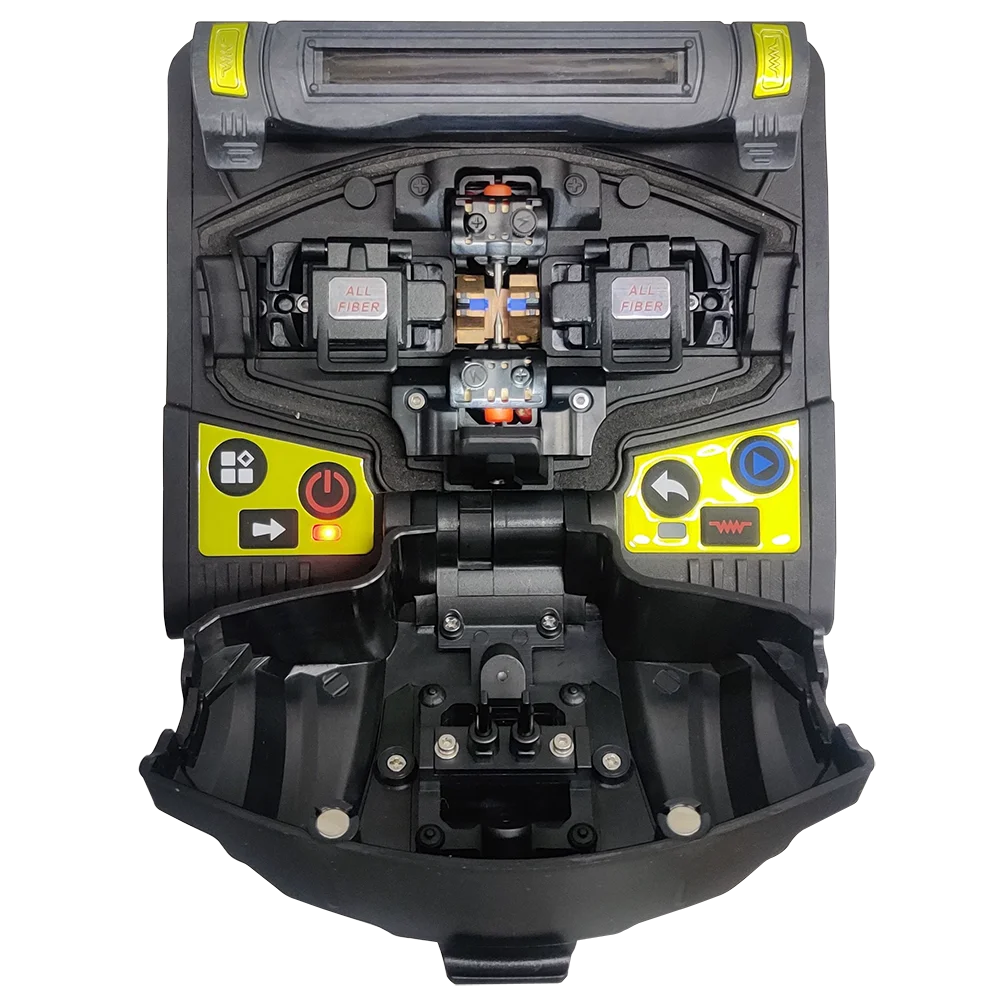

The Star FFS-7000 Fusion Splicer is a high-precision splicing machine featuring a 6-motor core alignment system with a German-designed durable ceramic V-Groove. Equipped with a large-capacity pluggable lithium battery, it provides reliable power for extended field work in telecommunications and FTTX projects.

This advanced fusion splicer includes intelligent functions such as SD card and USB support, automatic core identification, 100 splicing modes, and password protection for secure operations. The FFS-7000 is designed for low maintenance and long-term efficiency, featuring metallic gears for extended product life. Optional GPS tracking is available for tracking splice counts and machine location, adding an extra layer of safety. These cutting-edge features make the FFS-7000 one of the top-selling splicing machines on the market, backed by Star’s extensive service network and offering unbeatable performance in fusion splicing.

Specifications

Size and Weight Size: (136x141x136)mm, Weight: 1.5 Kg, 1.8 kg with battery
Fiber Alignment HIGH Precision PAS Core Alignment
Fiber Type Single / SMF(G.652/652D), MMF(G.651), DSF(G.653), NZDSF(G.655), G657A, G657B etc.
Splice Mode Single Fiber
Fiber Diameter Cladding diameter 80-150 µm, coating 100-1000µm
Cleave Length 5mm to 16mm
Splicing Programs 100 preset programs & user definable
Splicing Cycle Time 6 sec. [SM Fast] program
Heating Programs 30 preset programs & user definable
Heating Cycle Time 13 sec (Adjustable) Slim 60mm, Slim 40mm Coating
Splice Protector 10 – 60mm
Splice Image Capture Max.100
Splice Data Storage 20000 results
Splice Loss Low Loss Joining: Average – 0,02dB (SMF), 0.01dB (MMF), 0.04dB (NZ/DS)
Return Loss 60dB
Loss Estimation Provided
Operating Condition Altitude 0-5500m, Humidity 0-95% Temperature -20-+60 °C, Wind velocity up to 15m/s
Storage Condition Humidity 0-95%, Temperature -40-+80°C
Tension 2.0 – 2.25N
Fiber View Two cameras observation.
4.1 inch high-light color screen
Fiber Magnification 320 x for X or Y single axis view.
150x for both X&Y dual axis view

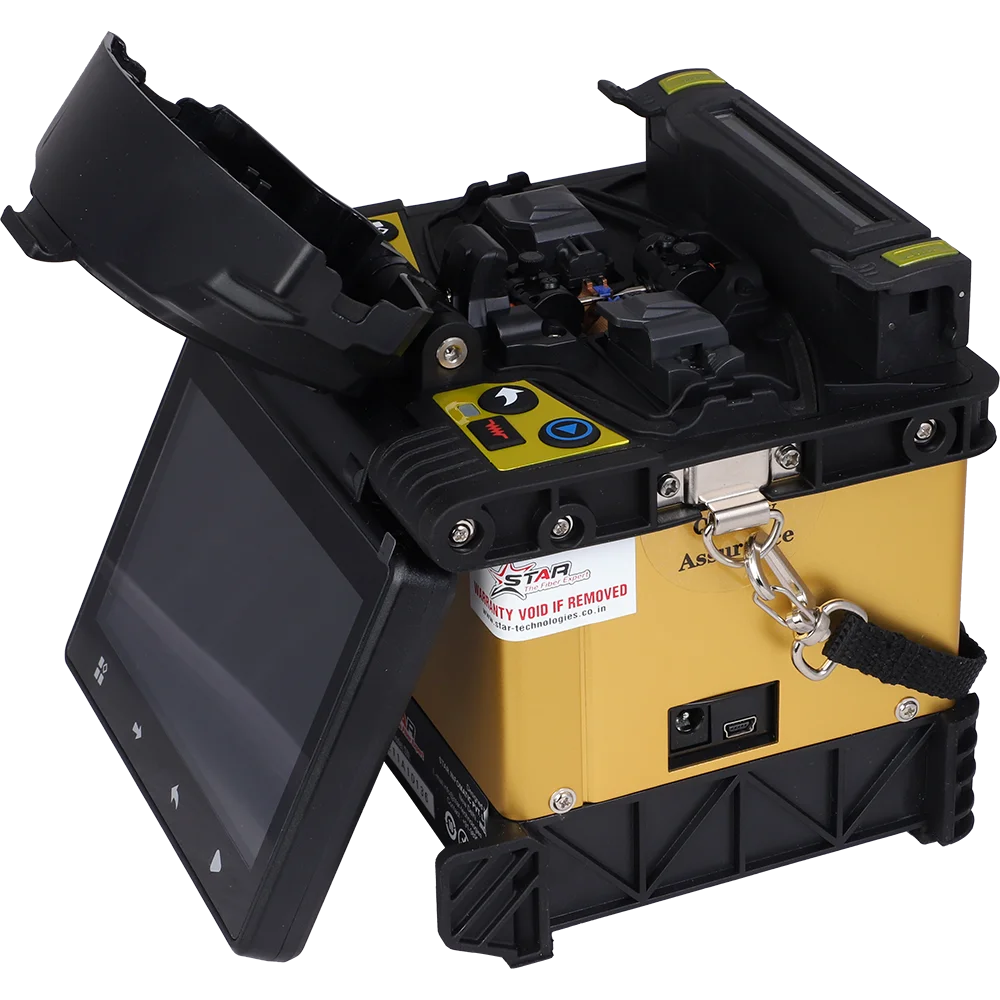

Port DC Charging, USB 2.0
Electrode Life 5000 arc discharges (suggested usage)
Power Supply AC to DC Adapter 100-240V, 50/60Hz & 12V Car Charger Type Adapter
Battery Module 6800mAh High capacity Li-Ion battery

Features

  • High Precision PAS Core Alignment
  • Fast: 6sec splice time & 13 sec heating time
  • Quick Start to Splice
  • Low Splice Loss
  • Core Alignment System
  • Long Life Electrodes – 5000 Splices
  • High Capacity Battery for 350+ Splice

Standard Package

  • Optical fiber fusion splicer
  • AC Power Adapter/Charger
  • Battery Pack
  • High Precision Fiber Cleaver
  • Alcohol Dispenser
  • Fiber Stripper
  • Spare Electrodes
  • Cooling Tray

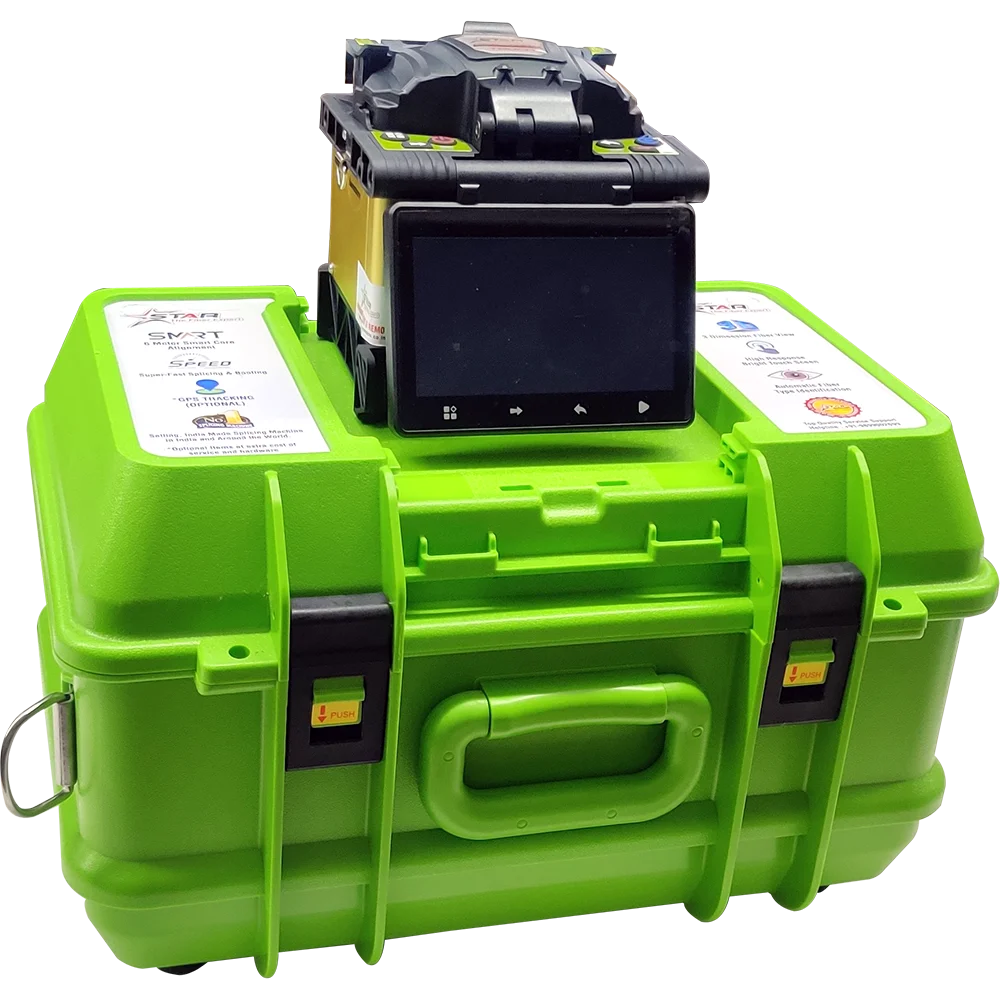

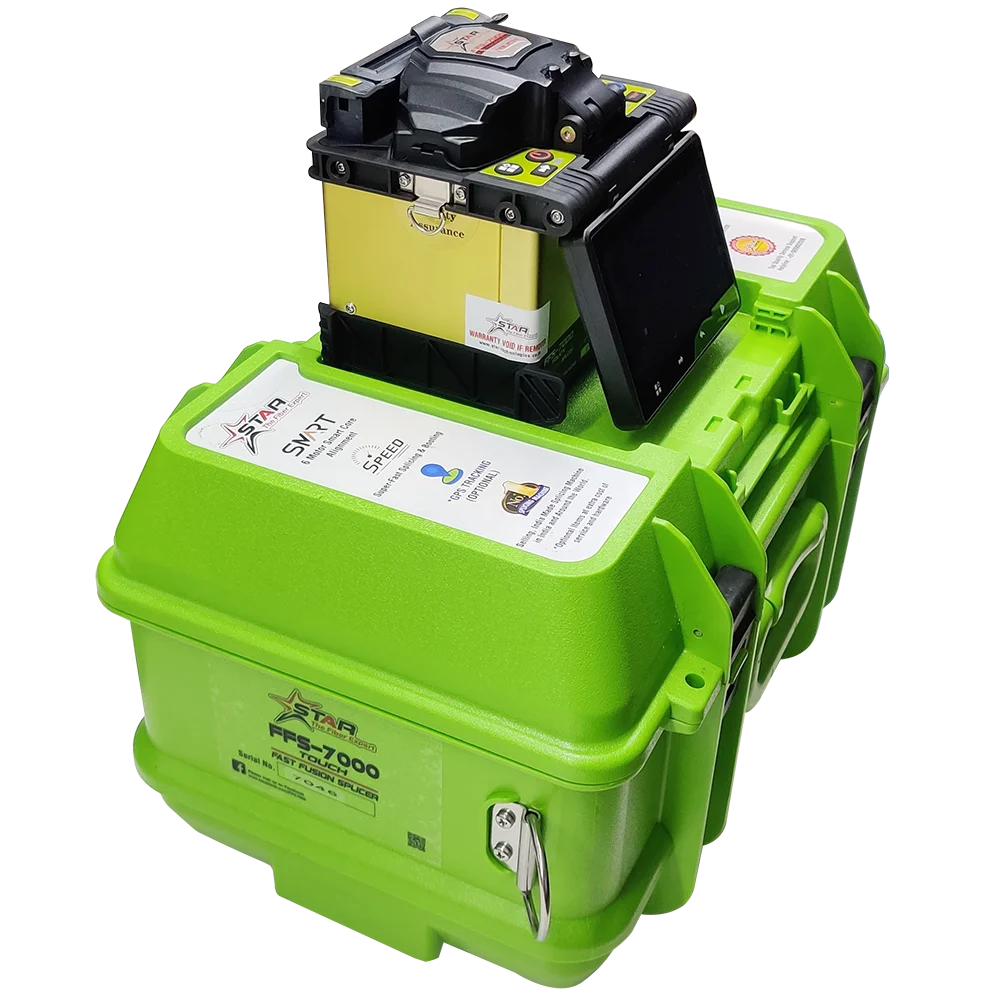

  • Hard Carrying Case
