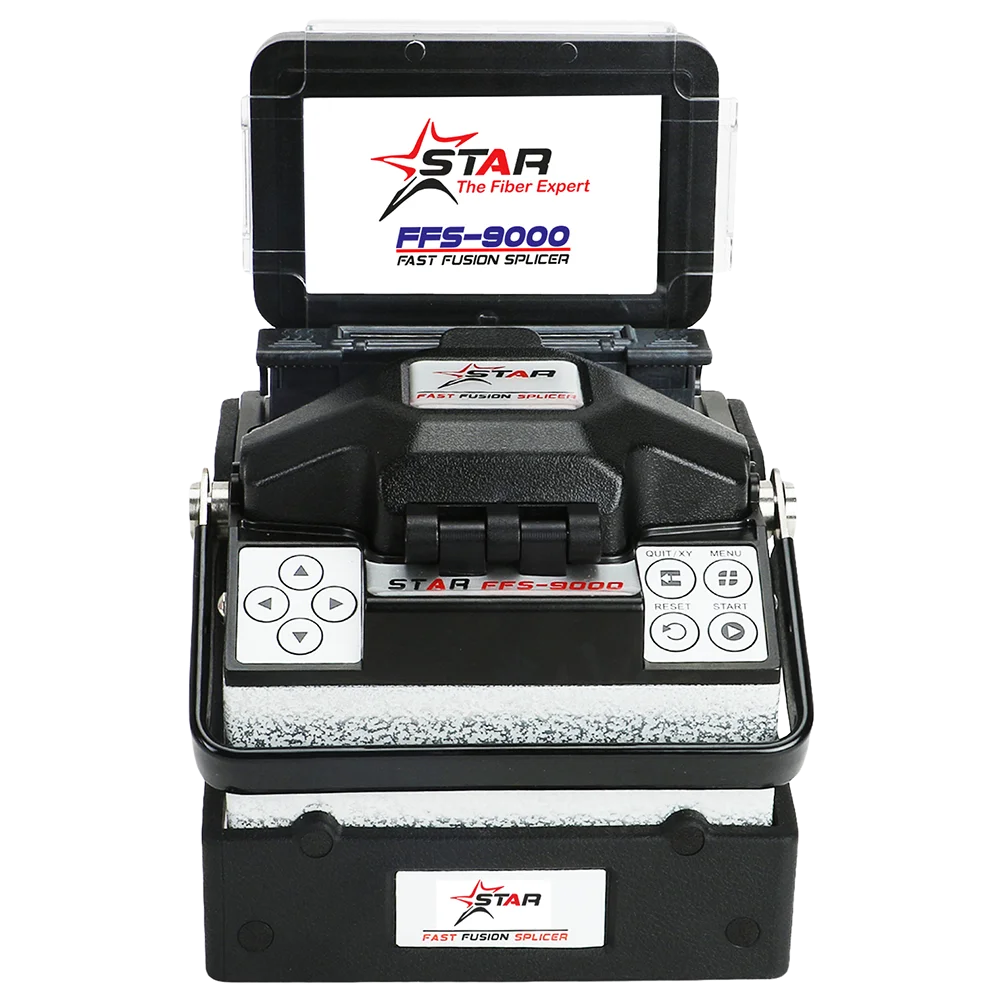

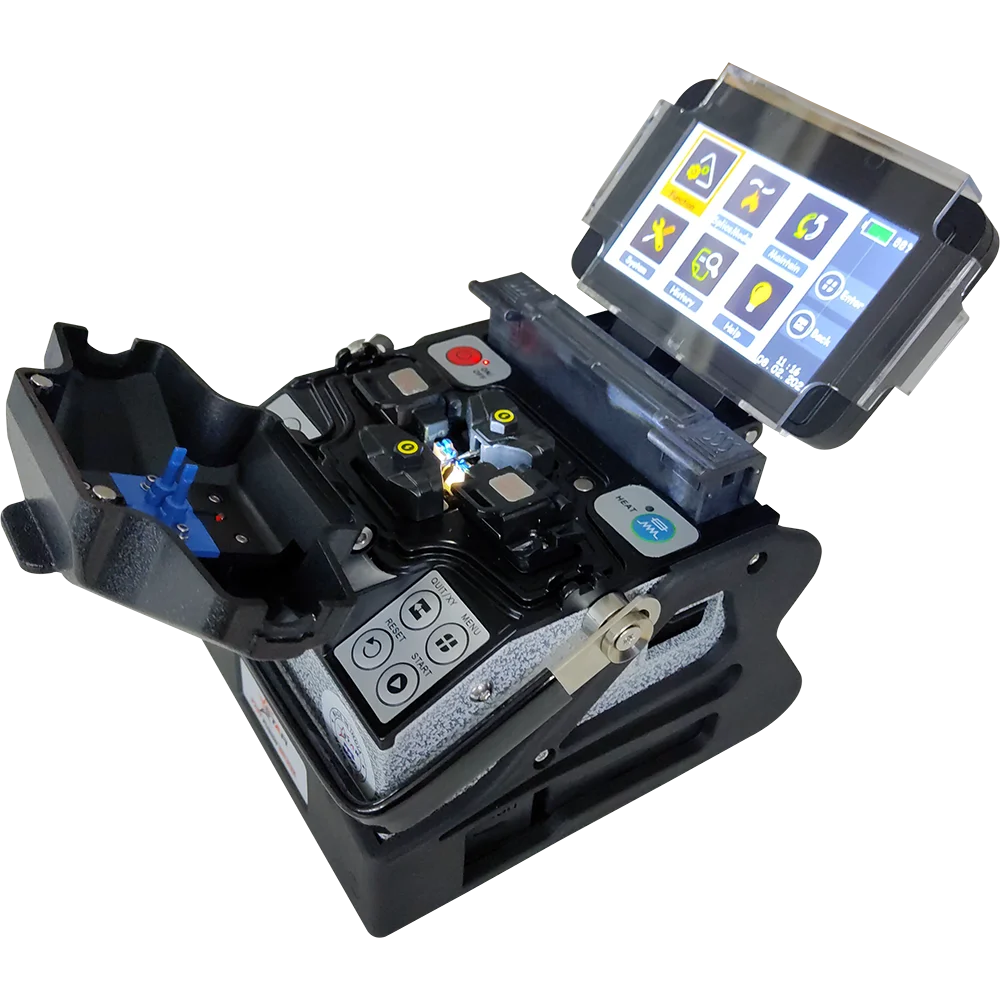

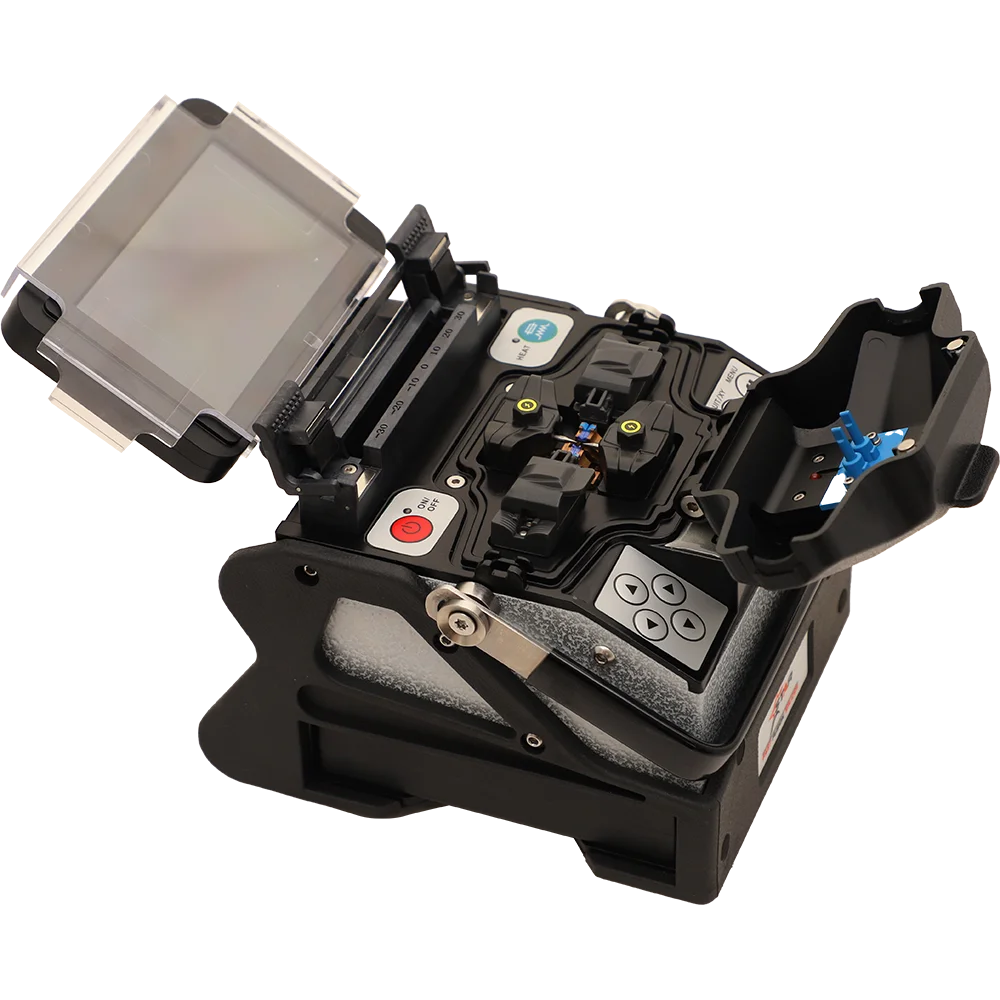

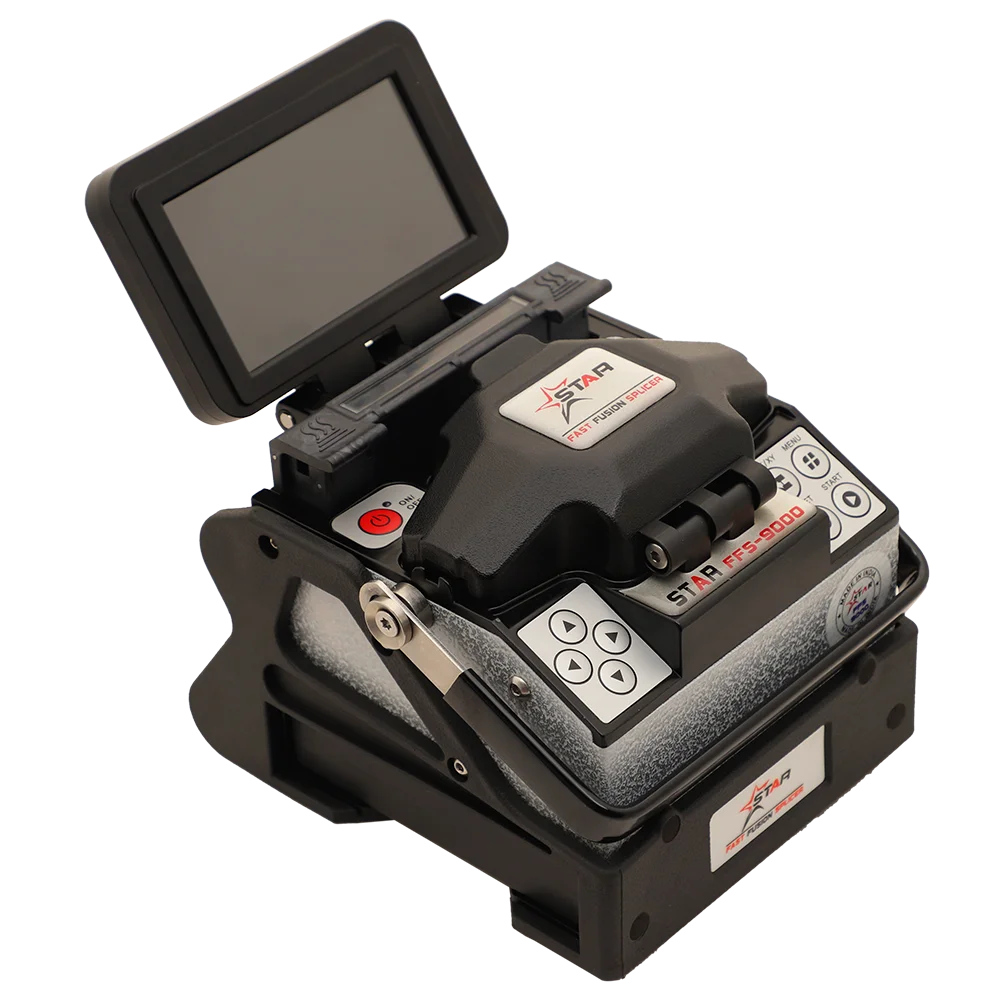

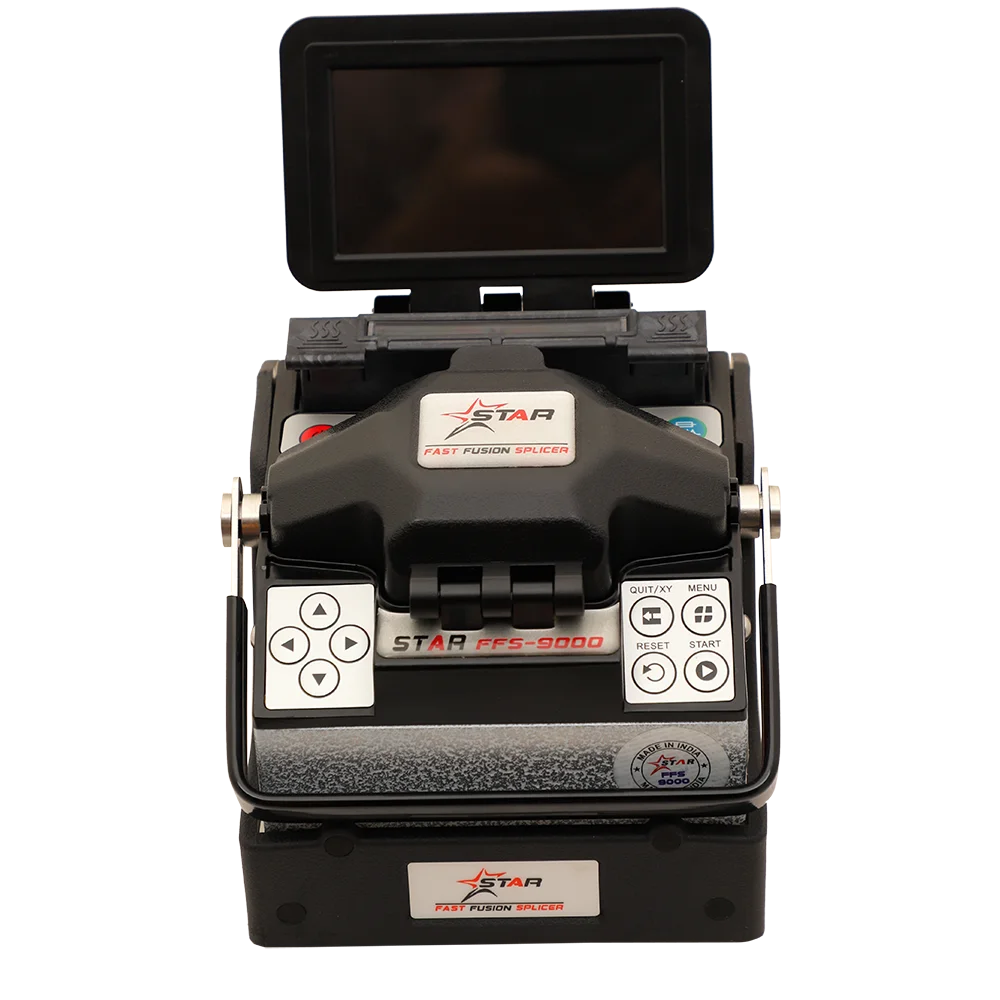

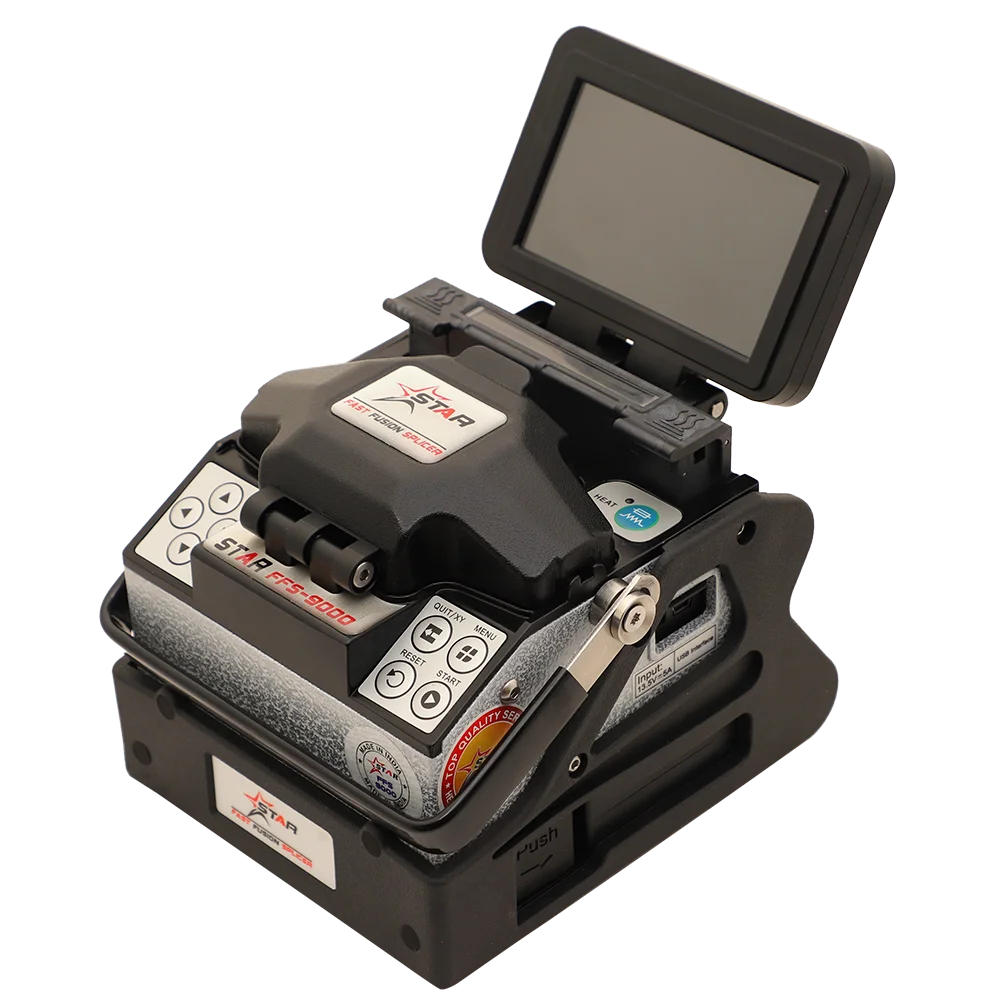

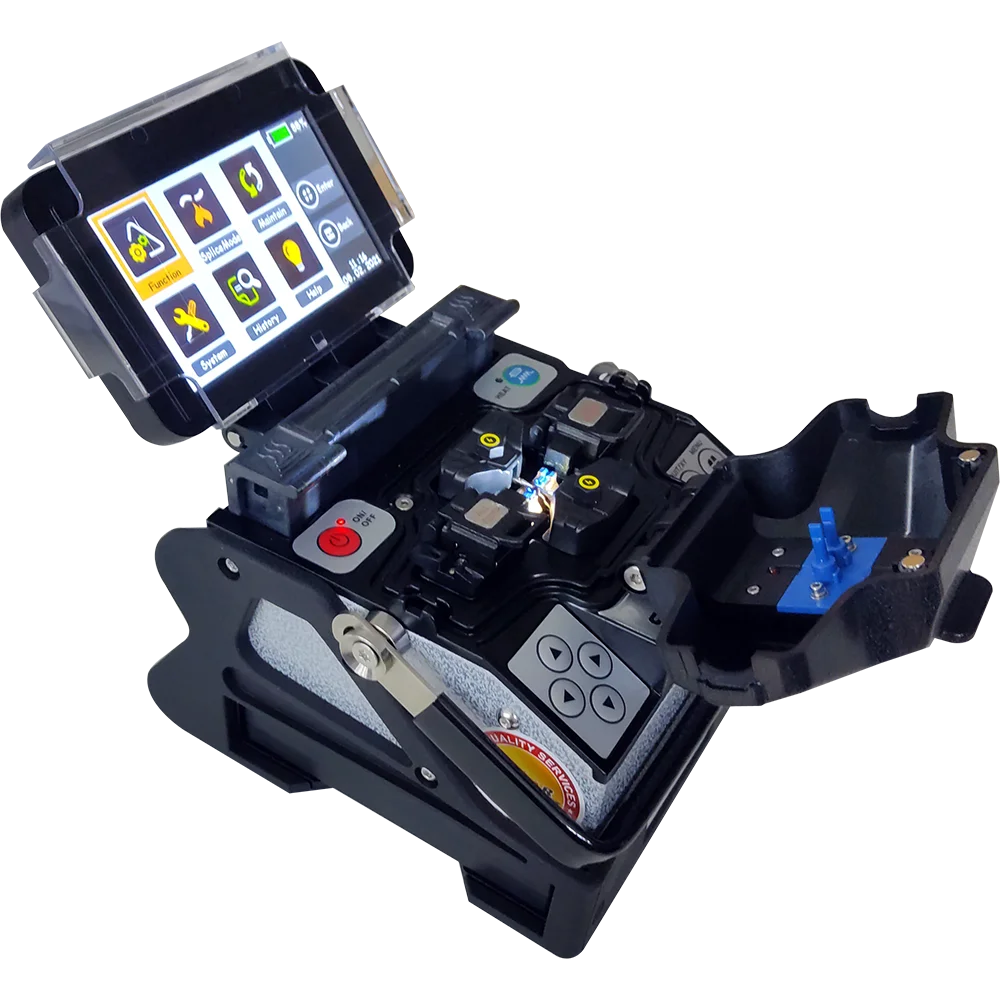

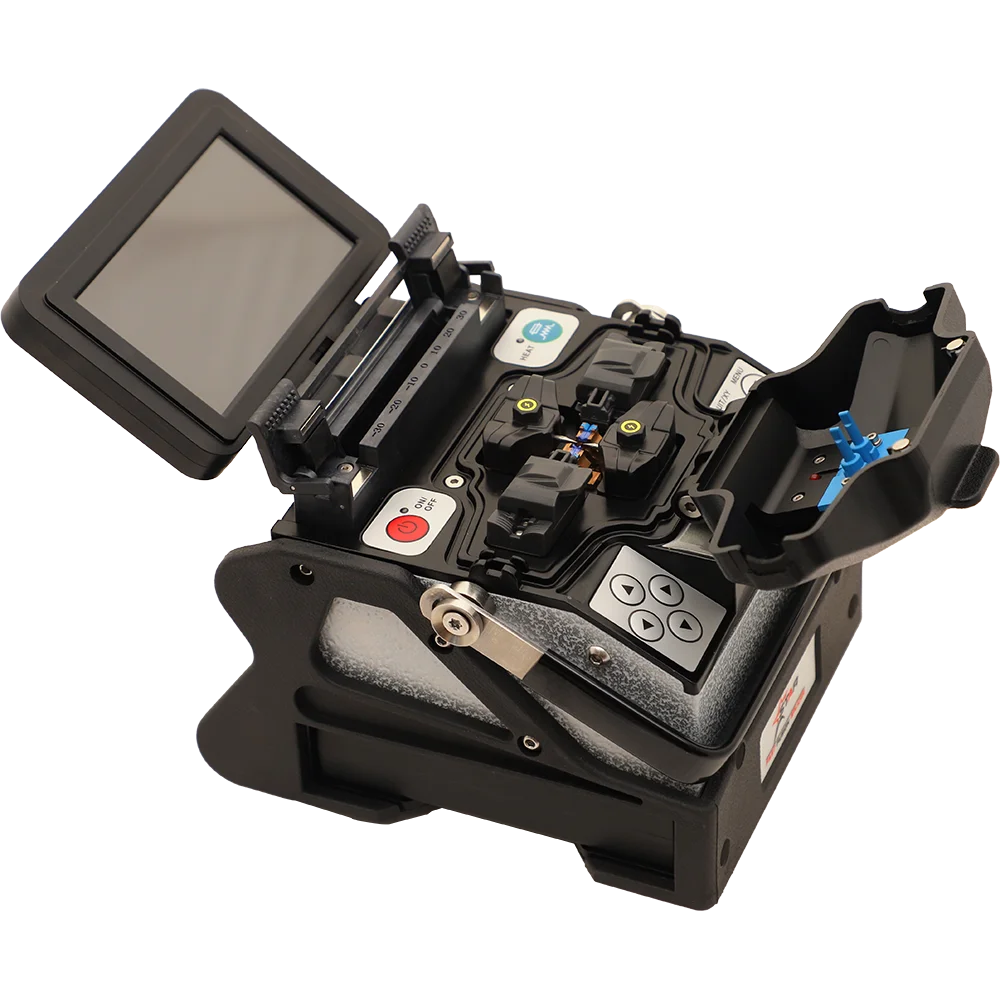

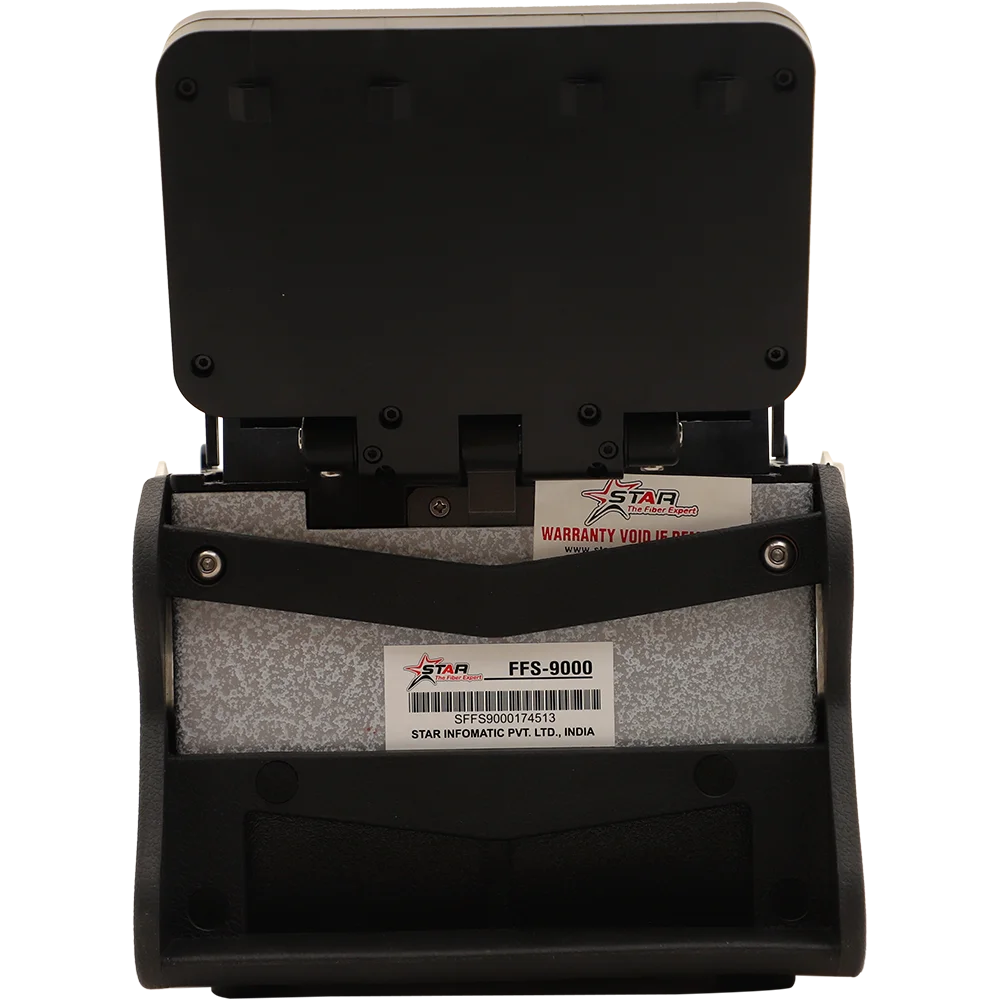

FFS-9000 Fusion Splicer

The Star FFS-9000 Optical Fiber Fusion Splicer is a premier fusion splicing machine designed for precise splicing of fiber optic cable ends. Featuring a double-core alignment structure, it offers a higher success rate of fusion with minimal loss. This advanced splicing machine boasts enhanced capabilities, including increased battery capacity and a colorized LCD screen, making it a standout choice for businesses seeking top performance.

With a typical fusion time of just 7 seconds and automatic intelligent heating upon closing the cover, the FFS-9000 excels in speed and efficiency. Its reliable design includes shockproof and dustproof features, positioning it as a leading option in the market. The FFS-9000 addresses all client and business needs with its rapid splicing process and robust functionality, setting it apart from other fusion splicing machines.

Category: Fusion Splicers

Description

The Star FFS-9000 Fusion Splicer is a portable splicing machine designed for efficiency and cost-effectiveness. Its low-power consumption design allows for extended operation with multiple functions running simultaneously, ensuring top performance and customer satisfaction.

This fusion splicer is compact, multi-functional, and highly portable. It can detect air pressure, temperature, humidity, and other environmental factors, automatically calibrating the arc for optimal results. Ideal for on-site fiber rectification, the FFS-9000 is well-suited for splicing GPON and single-mode fibers, pig-tailing new fibers, and inspecting installed ones.

Designed and manufactured in India, the FFS-9000 is the first fusion splicer from India for the global market. It combines high performance, safety, and an aesthetically pleasing design, making it a standout choice in the world of optical fiber fusion splicing.

Specifications

Applicable Fibers	Single / SMF(G.652/652D), MMF(G.651), DSF(G.653), NZDSF(G.655), G657A, G657B etc.
Cladding Dia./Sheath Dia.	80-150μm / 100-1000um
Cleave Length	5mm to 16mm
Splice Programs	Stored 40 Programs & 80 User-Configurable Options
Average Splice Loss	0.02dB (SM), 0.01dB(MM), 0.04dB(DS) and 0.04dB(NZDS) Measured by cut-back method relevant to ITU-T and IEC standards.
Return Loss	More than 60dB
Tube Heating Time	Typical 17sec, Slim 60mm, Slim 40mm Coating dia. 250um
Splice Time	7 Sec (Fast Mode) & 9 Sec (Typical)
Splice Loss Evaluation	Available
Tensile Test	2.25N
Screen	2 CMOS Camera with 4.3 inch Color LCD Non Touch for Fast Response
Optical Magnification	11.1V/6800 mAh lithium Battery, 13.5V/5A AC Adapter, 12V Car Power Supply
Battery Usage	Typical Operating 250 (splice / heat shrink) on a Single Charge 3h
Result Storage	Last 10000 Records
Electrode Life	5000 splices
Data Interface	USB2.0, PC Software Upgrade / Data Management
Operating Condition	Altitude : 0 to 5,000m above sea level, Wind : 15m/sec Temperature : 10 to 50 deg C, Humidity : 0 to 95%RH, non-dew
Weight	1.54kg (Without Battery), 1.82kg (Including Battery)
Size	150D×130W×126H(mm)
Weather Protection	Shock Resistance, Dust Resistance and Rain Resistance

Features

Double core align structure, higher success rate of fusion and lower loss.

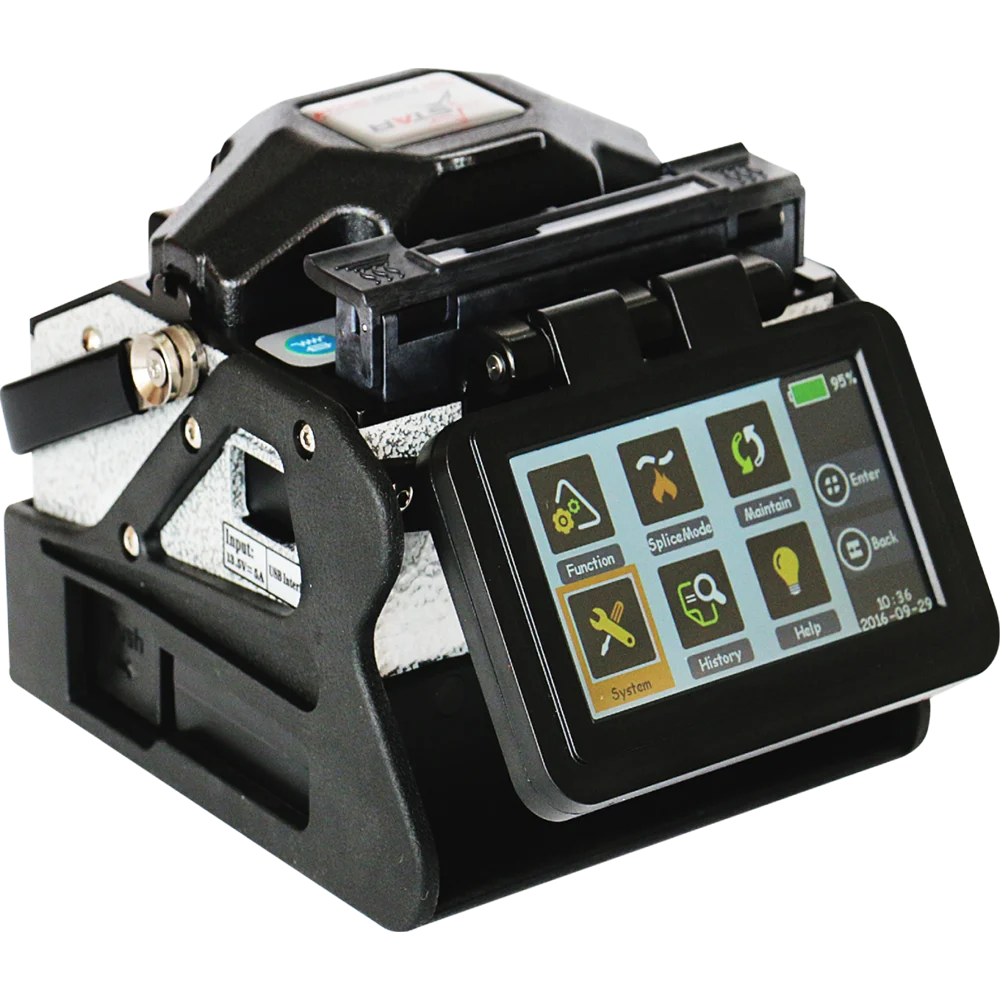

Adopt 4.3 inches 16:9 TFT colorized LCD screen.
Typical fusion time: 7 seconds.
Typical heating time: 17 seconds, automatic intelligent heating when closing the cover.
Reliability design strengthens shockproof, dust-proof and other functions.
Low power consumption design makes it possible to work longer with many functions operating at the same time.
Multi-functional, small-sized, portable, greatly improving working efficiency.
Capable to detect air pressure, temperature and humidity and other environmental factors and automatically calibrate arc.
Pluggable battery, convenient and quick charge.
