Fibershot 9090 Handheld Optical Light Source

Fibershot provides a comprehensive range of light sources designed for testing both single-mode and multimode fiber networks. These light sources work seamlessly with our Optical Power Meters to ensure accurate and efficient testing. Here’s what you need to know:

  • Wavelength Options: Our Laser Sources transmit constant wavelengths in various colors: 850 nm, 1300 nm, 1310 nm, 1550 nm, 1490 nm, and 1625 nm, catering to different fiber network requirements.
  • Enhanced Efficiency with WaveID: The Handheld Adjustable Light Source features WaveID mode, which encodes each wavelength with a unique WaveID code. This innovation allows the device to send and receive two wavelengths per test when paired with a Handheld Power Meter, effectively doubling testing efficiency and significantly reducing test times.

Choose Fibershot for reliable and efficient fiber network testing solutions with advanced features that streamline your workflow and enhance testing accuracy.

Category:

Description

Automatic Wavelength Identification for Enhanced Efficiency

The Fibershot Handheld Adjustable Light Source is an advanced fiber optic testing tool designed for optimal performance in fiber network installation, engineering acceptance, and maintenance. When used in conjunction with the Fibershot Handheld Optical Power Meter, it delivers fast and precise testing solutions for both single-mode (SM) and multimode (MM) fibers.

Key Features:

  • Automatic Wavelength Identification: Simplifies testing by automatically detecting and switching wavelengths, which significantly boosts testing efficiency.
  • Customizable Wavelengths: Offers 2 or 4 selectable wavelengths, with adjustable output power based on customer specifications.
  • User-Friendly Design: Features an ergonomic design, excellent tactile feel, and intuitive interface, making it easy and comfortable to use.

For accurate and efficient fiber network testing, choose the Fibershot Handheld Adjustable Light Source—combining functionality with a thoughtful design for an exceptional testing experience.

Specifications

Wavelength 1310/1550 nm
Emitter Type FP-LD
Output Power ≤10 nm
Spectral Width ≤10 nm
Output Stability ±0.05dB/15min; ±0.1dB/8hours
Modulation Frequencies CW,270Hz,1KHz,2KHz

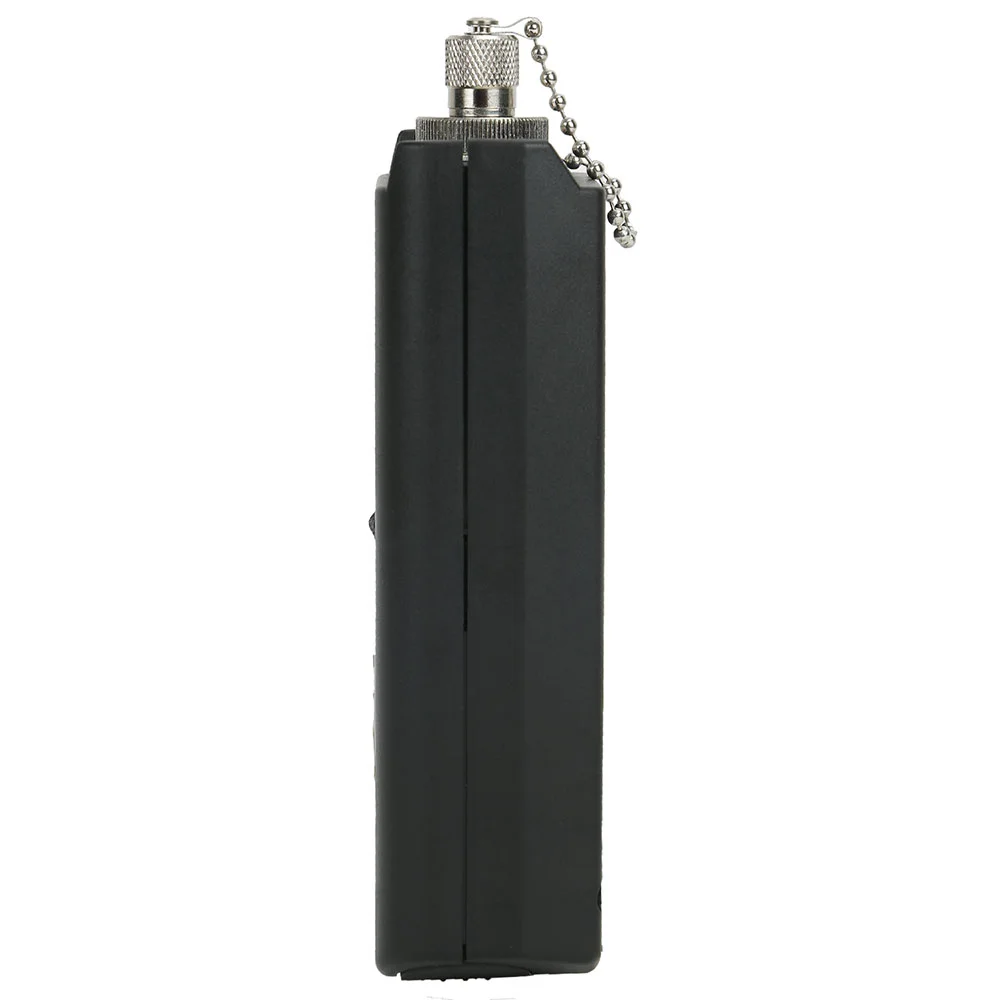

Optical Connector FC/PC

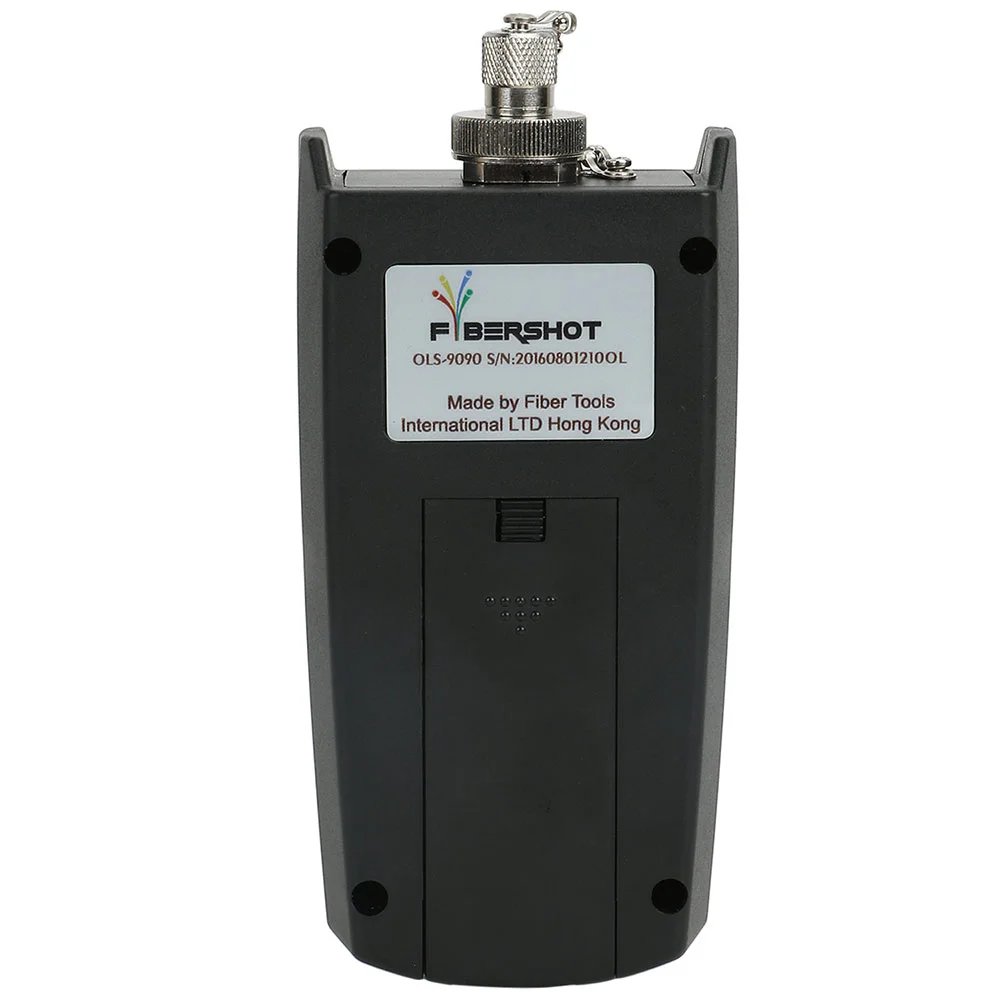

Power Supply Alkaline Battery(3 AA 1.5V)
Battery Operating Time 45 h
Operating Temperature -10~+60 ℃
Storage Temperature -25~+70 ℃
Dimension 152mm(W)×74 mm(D)×26 mm(H)
Weight 180 g

Features

  • Wave ID—Automatic Wavelength Identification and switching (when used with Fibershot handheld power meter)
  • Tone generation, 270HZ,330HZ,1KHZ,2KHZ
  • Intelligent backlight control (light intensity can be adjusted properly according to ambient light, which greatly reduced power consumption)

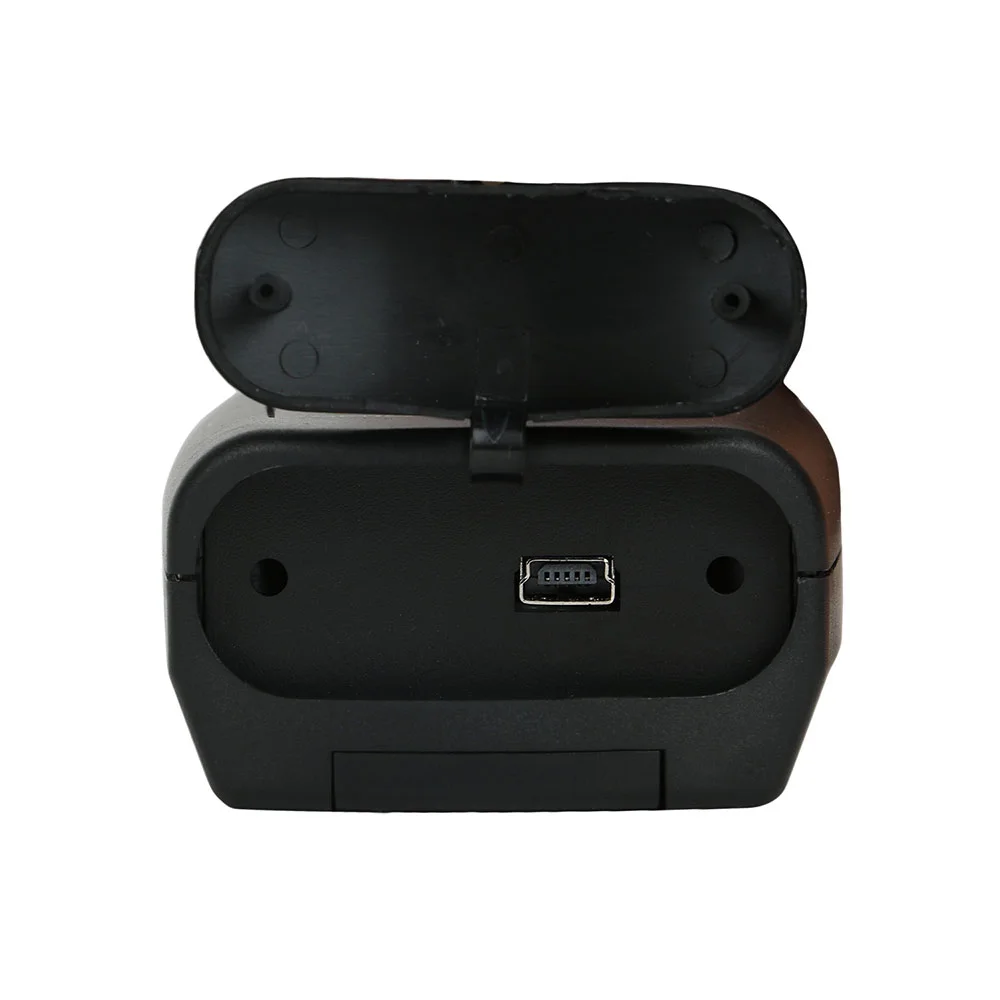

  • USB port for Battery Charging
