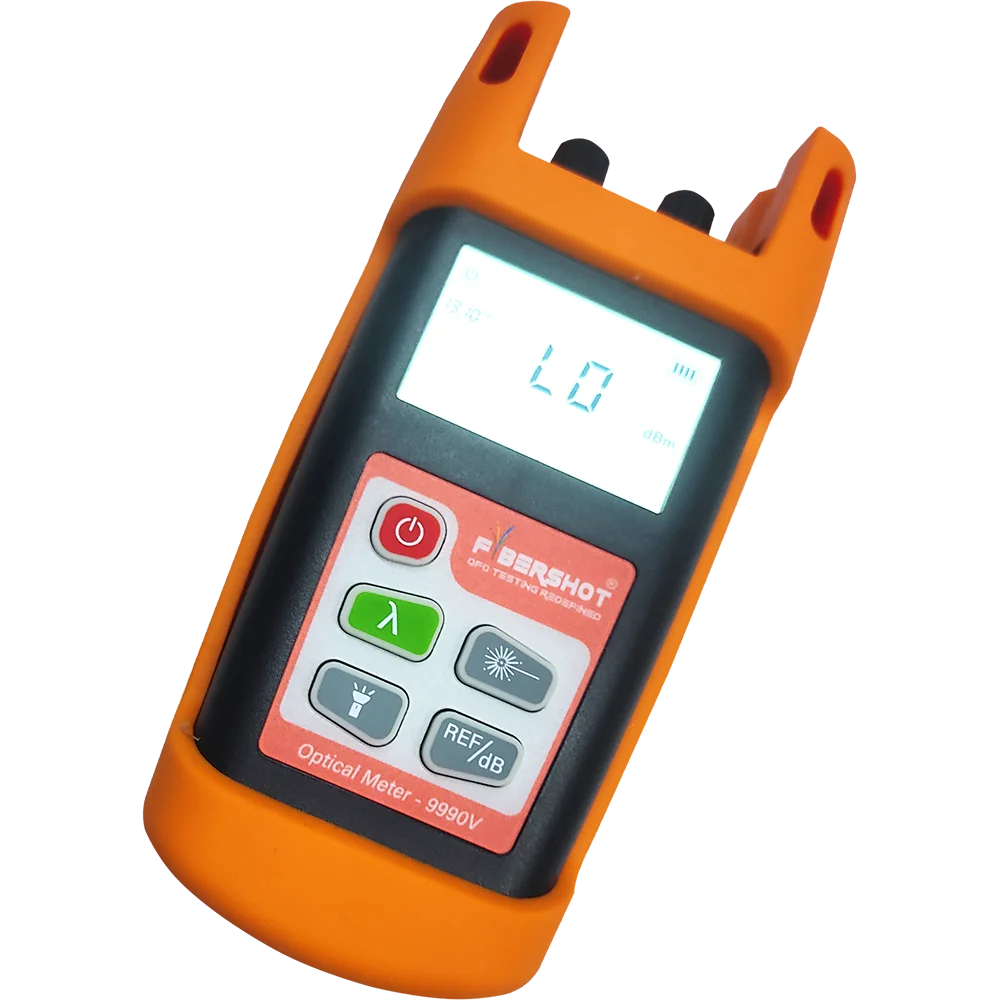

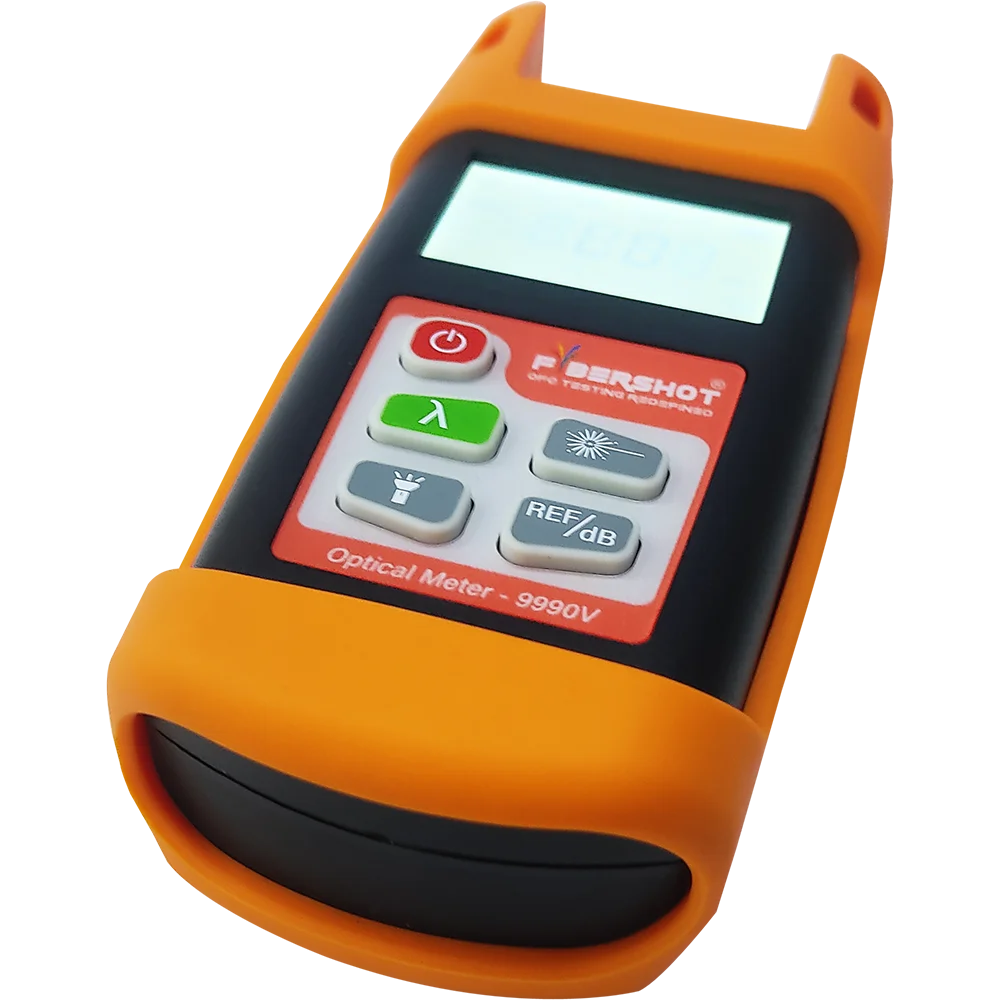

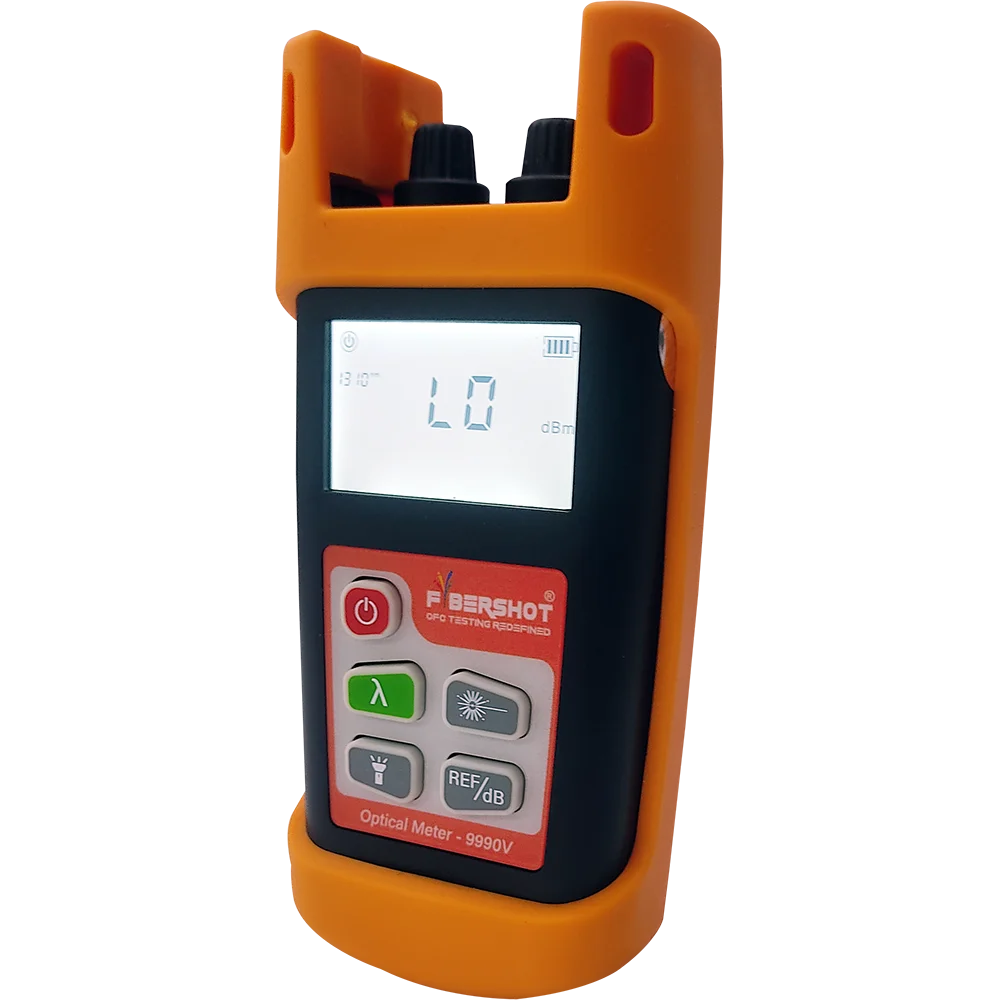

Fibershot 9990V Power Meter 2 in 1 OPM and VFL

Experience Unmatched Precision and Efficiency in Fiber Optic Testing.

Introducing the 9990V Power Meter: a state-of-the-art 2-in-1 device that combines an Optical Power Meter (OPM) and a Visual Fault Locator (VFL). This advanced tool is engineered for professionals who require top-tier accuracy and efficiency in their fiber optic testing and troubleshooting. Ideal for network technicians, engineers, and installers, the 9990V Power Meter delivers comprehensive functionality for precise fiber optic network analysis and maintenance.

Description

2-in-1 Optical Power Meter (OPM) and Visual Fault Locator (VFL): Combines two essential functions for comprehensive fiber optic testing.
Compact and Lightweight: Designed for easy portability and effortless operation.
Durable Construction: Built to withstand the rigors of field use.
Easy Calibration Options: Ensures ongoing accuracy and reliability.
Clear LCD Screen: Displays real-time measurements and status updates for quick and easy reading.
Wide Wavelength Compatibility: Supports 850 nm, 1300 nm, 1310 nm, 1490 nm, 1550 nm, and 1625 nm for versatile testing.

Specifications

Working temperature (°C)	-10~+60
Storage temperature (°C)	-25~+70
Automatic shutdown time (min)	10
Power supply	Rechargeable Li-Ion battery
Battery continuous working time (h)	12.5 (3x1500mAh) (1)
Dimensions (mm)	76* 177.5*40
Power supply	5V2A(2)
Weight (KG)	0.275(3)

OLS

Optical component	FP-LD
Output power (dBm)	-6~-7
Modulation	270Hz, 1KHz, 2KHz
Fiber category	SM, MM
Connector	2.5mm universal connector +FC or SC
Data Storage / Port	1000 / USB

OPM

Wavelength range (nm)	800~1700
Probe type	InGaAs
Detection range	0.3mm

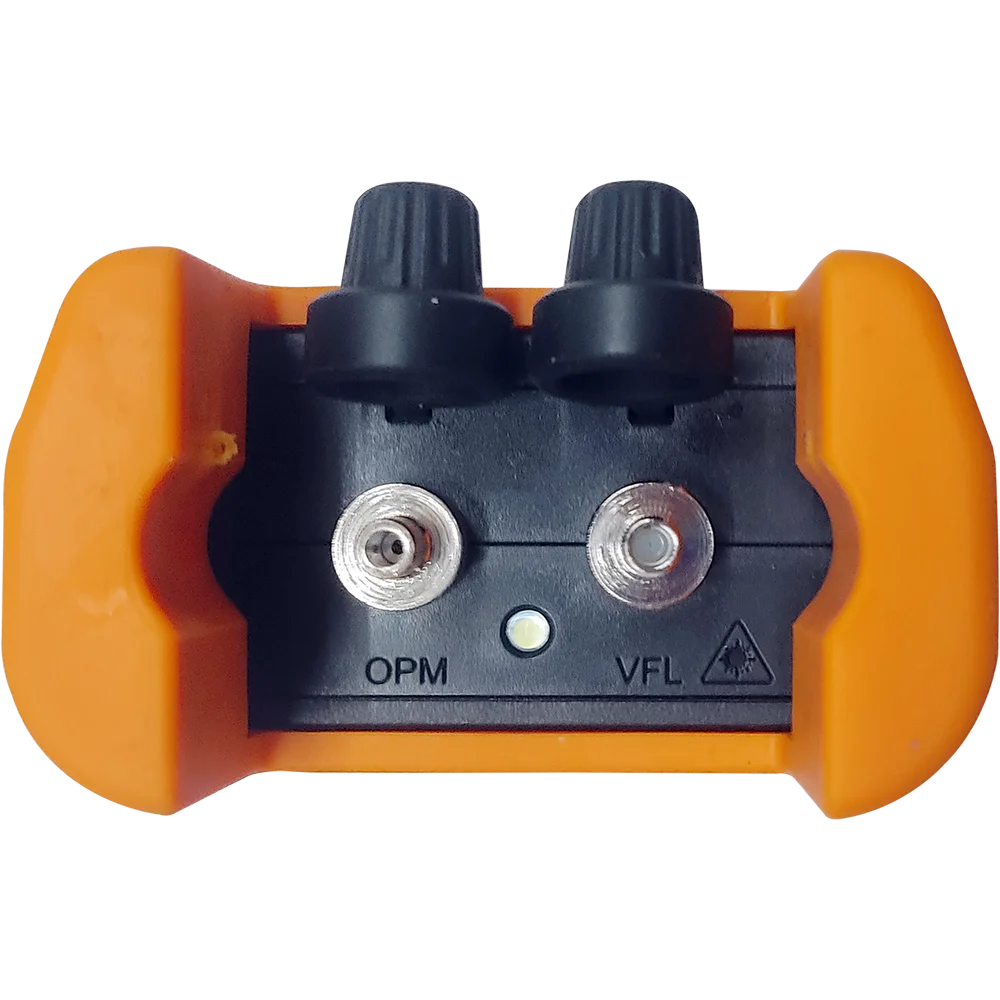

Optical port	Interchangeable Optical Connector FC /SC/LC
Power measurement range (dBm)	9990V Power Meter-A: -70~+10 9990V Power Meter-B: -50~+26
Display resolution	0.01dBm
Uncertainty	±1
Standard wavelength (nm)	850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm
Data Storage / Port	1000 / USB

VFL

Output power (mW)	10mW
Optical port	Interchangeable Optical Connector FC /SC/LC
Wavelength (nm)	650
Spectrum line width (20°C)(nm)	±10
Applicable ﬁber	SM, MM
Internal modulation	CW, 2Hz
