Fibershot Fiber Identifier

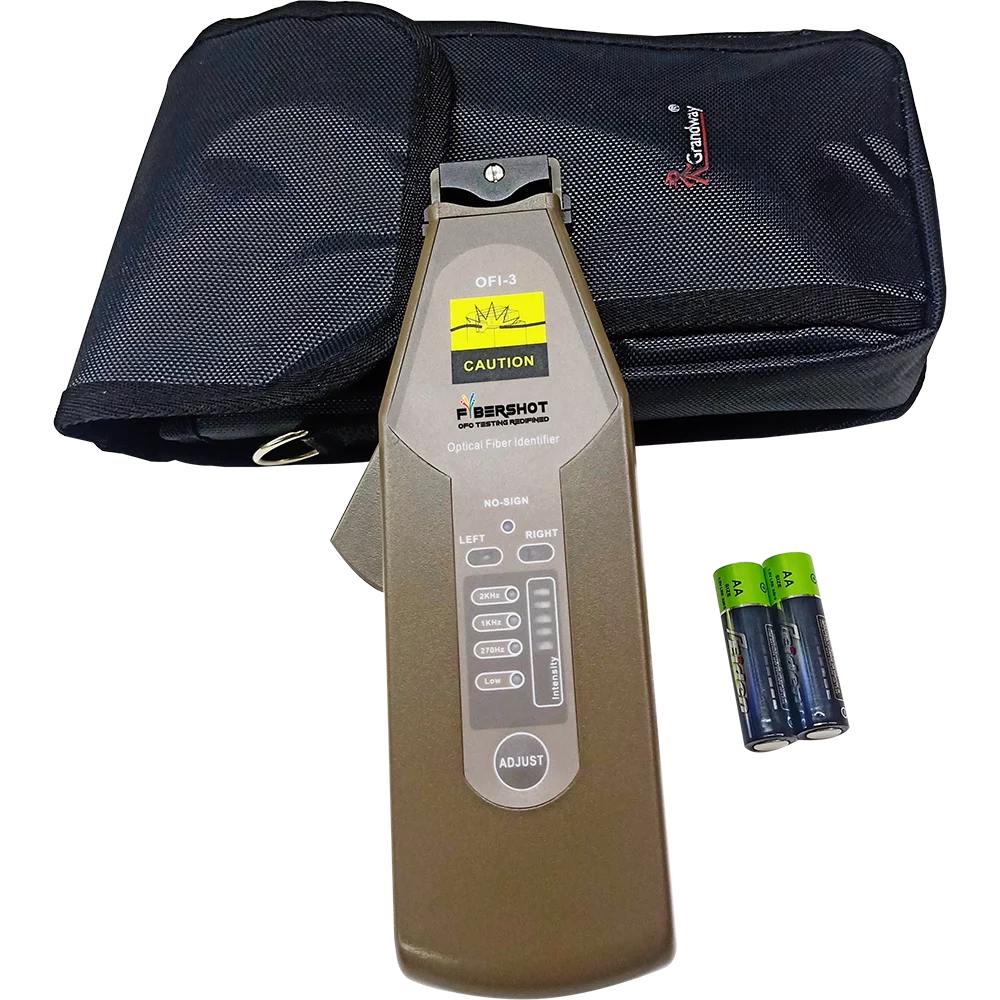

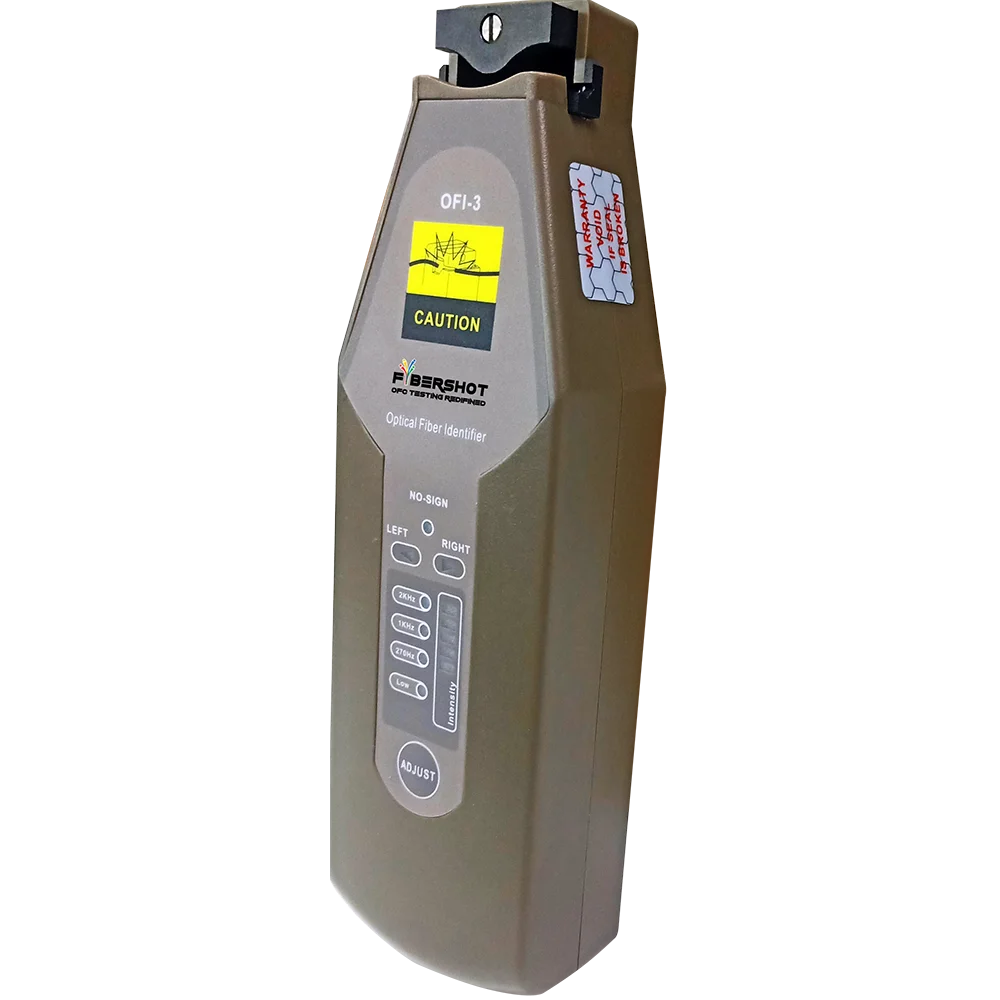

The OFI-3 Optical Fiber Identifier is an affordable, portable instrument designed to detect optical signals without disconnecting fiber or disrupting network traffic. Ideal for various fiber types, including 0.25 mm bare fiber, 0.9 mm tightly buffered fiber, and 2/3 mm jacket fiber, the OFI-3 is essential for efficient network management.

Applications:

  • Non-Disruptive Detection: Easily identifies optical signals without disconnecting fibers.
  • Versatile Usage: Ideal for installation, service, maintenance, and troubleshooting.

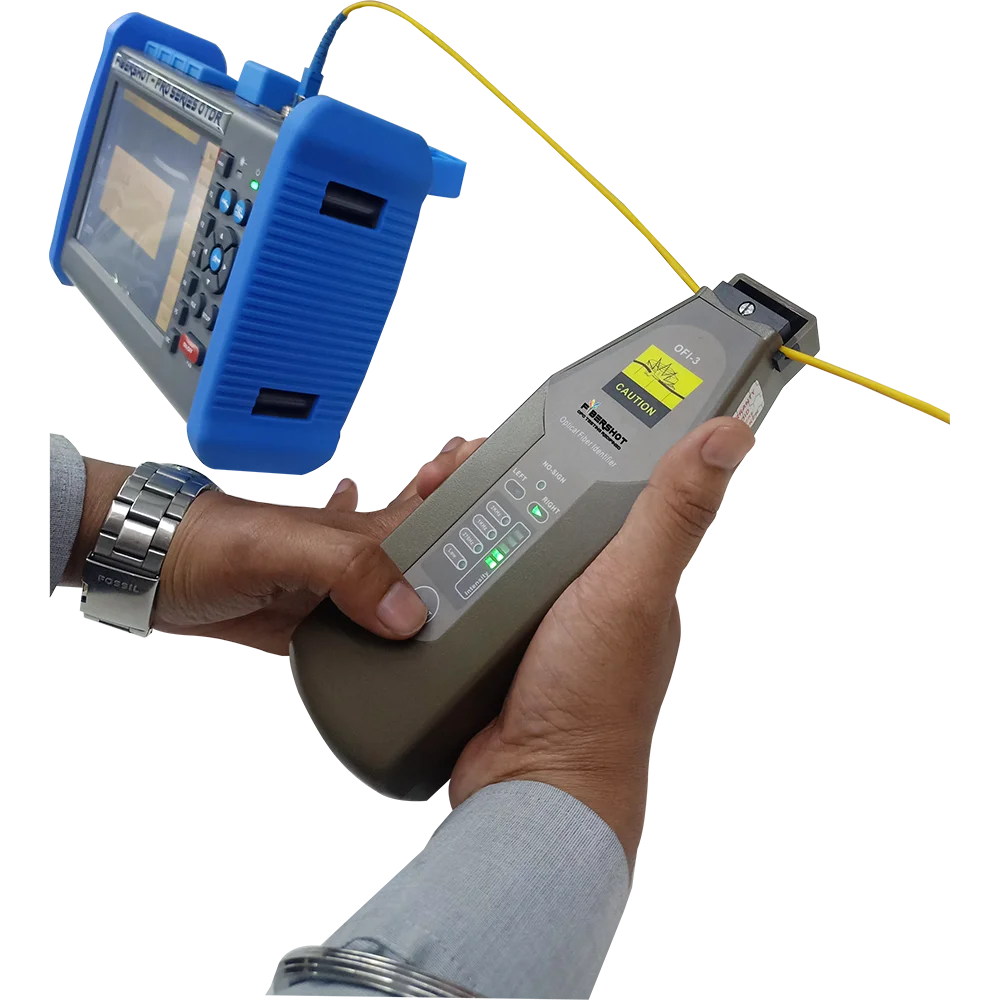

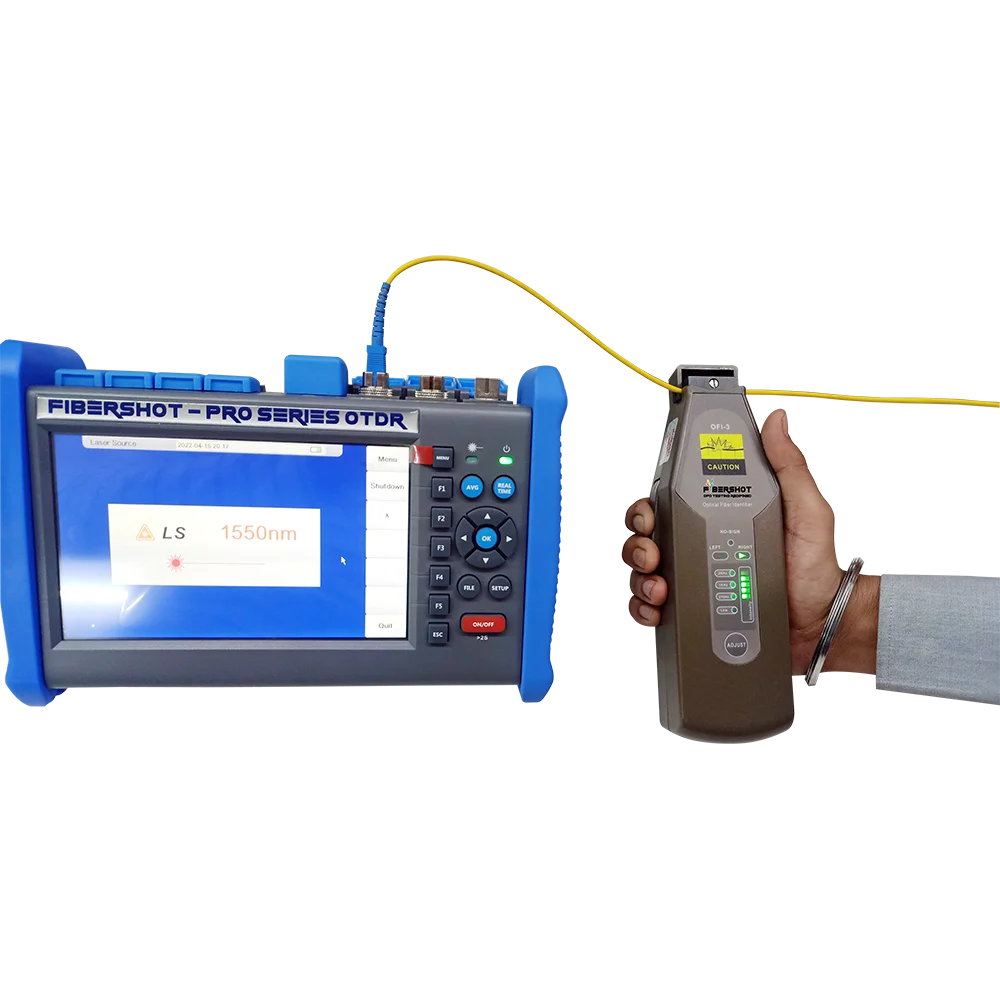

  • Integration Capability: Works seamlessly with FiberChek2 for comprehensive inspection and test reporting.
Category:

Description

  • User-Friendly Operation: Convenient and easy to use for quick fiber identification.
  • Clear LED Indicator: Provides simple and clear visual feedback for ease of use.
  • Frequency Identification: Detects 270 Hz, 1 kHz, and 2 kHz modulation frequencies.
  • Signal Direction and Intensity: Indicates both the direction and intensity of optical signals.
  • Natural Light Calibration: Includes a calibration function for natural light intensity to enhance accuracy.

Specifications

Wavelength 1310/1550 nm
Emitter Type FP-LD
Output Power ≤10 nm
Spectral Width ≤10 nm
Output Stability ±0.05dB/15min; ±0.1dB/8hours
Modulation Frequencies CW,270Hz,1KHz,2KHz
Wavelength 650±10 nm
Fiber Mode SM/MM
Output Power 1mw/10mw/20mw
Working Distance 5 Km/10 km/20 km
Spectral Width ≤5 nm
Emission CW or 2Hz
Optical Connector Universal 2.5mm adaptor for FC,SC,ST
Power Supply 2 AA 1.5V
Battery Operating Time 30 h
Operating Temperature -10°C~+50°C
Storage Temperature -20°C~+70°C
Dimension 3.6cm*6.2cm*20.2cm
Weight 0.27kg
