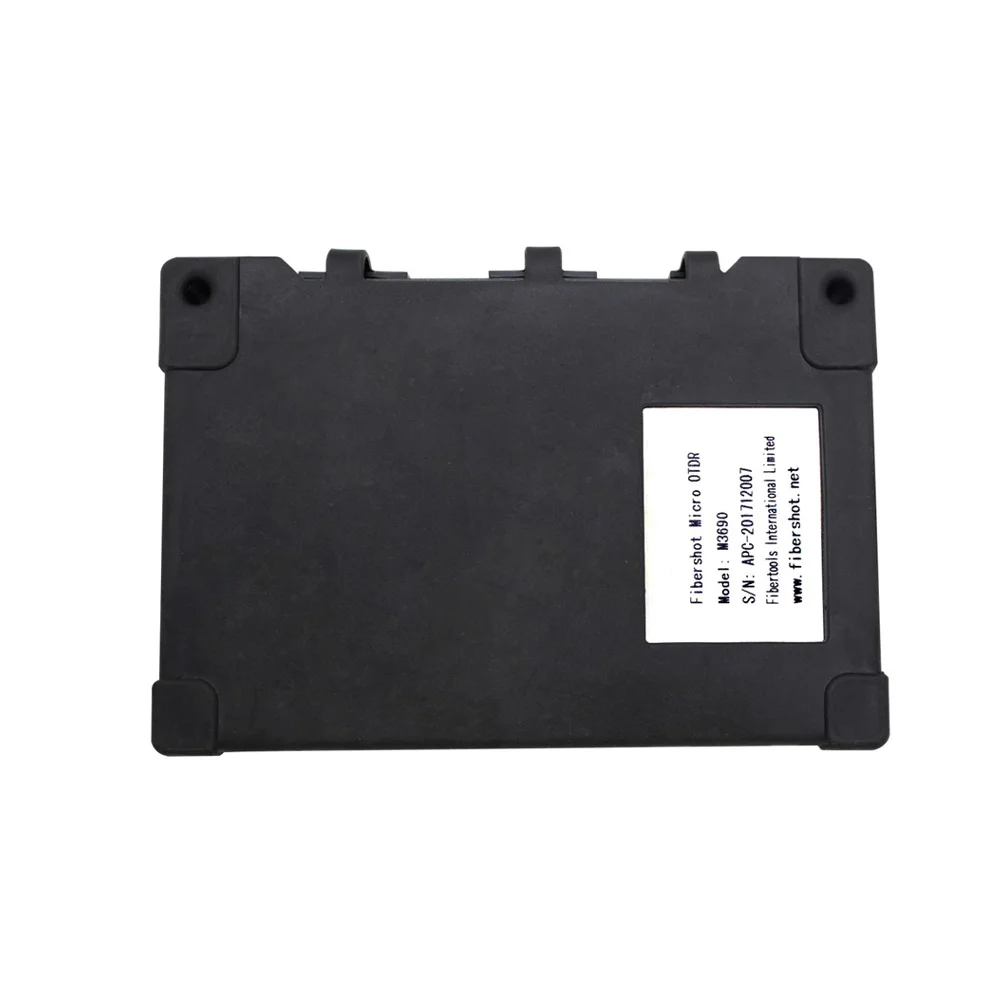

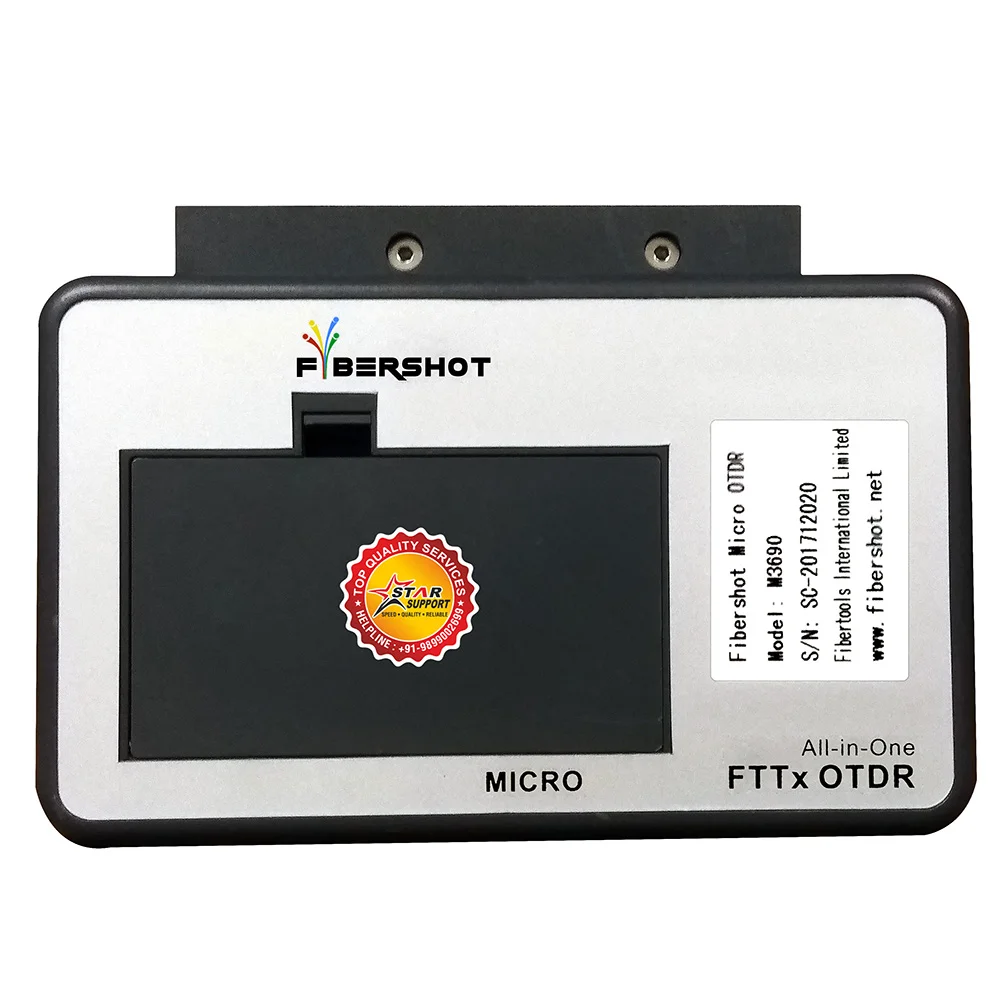

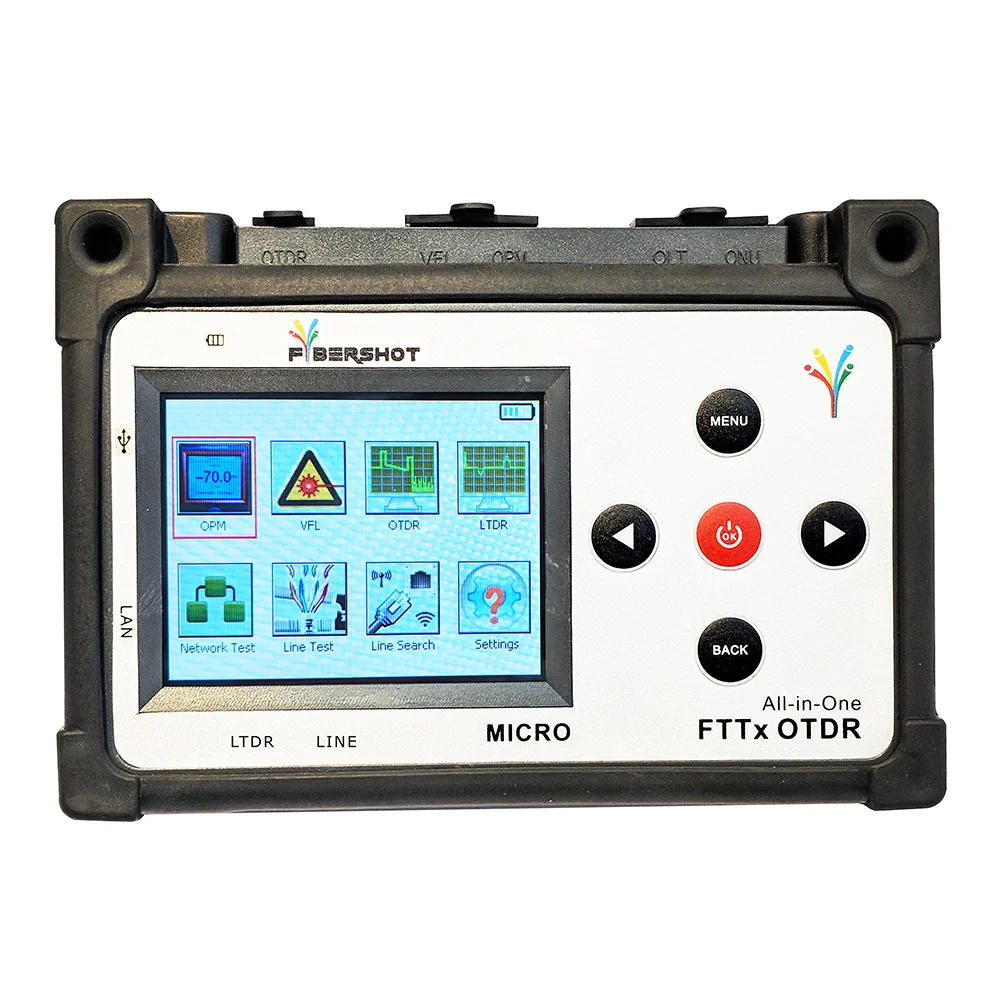

Fibershot Micro Series OTDR

The Fibershot Micro-OTDR is a versatile Optical Time Domain Reflectometer (OTDR) designed for the maintenance and installation of various types of cables, including cable-TV, broadband, FTTH (Fiber To The Home), and network cables. It is also suitable for applications involving power cables, coaxial cables, CCTV security systems, and camera transmission cables.

This advanced Fiber Testing Equipment excels at quickly identifying and locating faults and breaks in optical fibers and other cables within just 5 seconds. The Fibershot Micro-OTDR simplifies the testing process, improving efficiency and reducing operational costs, particularly for the final 100 meters of optical fiber and network cables used in FTTH installations.

With its user-friendly design and robust performance, the Fibershot Micro-OTDR is ideal for cable-TV and broadband operators, offering unmatched service and support for all your fiber testing needs.

Category:

Description

OTDR (Optical Time Domain Reflectometer): Efficiently locate faults and breaks in optical fiber, measure fiber length, transmission loss, and splice loss. Capable of detecting attenuation over 30km and breaking points up to 50km.

LTDR (Long-Term Data Recorder): Accurately measure the length, breaking points, short-circuit points, impedance mismatches, and distances between points for network cables, coaxial cables, and various other cables and wires.

OPM (Optical Power Meter): Measure the average optical power of fiber connections for precise evaluation and maintenance.

PON Power Meter: Evaluate PON upstream signal power (1310nm & 1277nm) to determine the presence of online ONU and ensure the ONU upstream pulse is functioning normally.

VFL (Visual Fault Locator): Track, route, and continuously check fibers in optical networks for effective troubleshooting and maintenance.

Network Test: Utilize the integrated Ethernet interface chip to perform various network tests, including ping, PPPOE dial, DHCP test, ARP test, and web test to identify network faults.

Internet Speed Test: Measure network download speeds and website response times for assessing network performance.

Line Test: Evaluate loop resistance and unbalance resistance of network cables (Cat5, Cat5e, Cat6, Cat7), coaxial cables, and other wires to diagnose faults in physical connections.

Line Search: Locate specific cables and wires by sending and receiving signals (audio and ultra-audio) for precise identification and tracing.

Specifications

OTDR
Laser Tube LD
Detecting Diode APD
Measurement Resolution 0.6m
Event Dead Zone 15m
Attenuation Dead Zone 20m
Test Pulse Width 10‛30‛100‛300ns‛1‛3us
Dynamic Range 18 dB
Measurement Length (Event) 50km
Measurement Length (Attenuation) 30km
Measurement Range 5-200m
Pulse Amplitude 10v
LTDR
Pulse Width 10‛30‛100‛300ns‛1‛3us
Measurement Resolution 0.6m
Measurement Range 5-200m
Pulse Amplitude 10v
Optical Power Meter
Wavelength Range (nm) 800-1600
Probe Type InGaAs
Power Measurement (dBm) -50 TO +26 dB
Uncertainty 3%
Display Resolution 0.1dBm
Fiber Category Single Mode
Connector SC/APC
PON Power Meter
Wavelength Range (nm) 1310nm & 1277nm
Measurement Range -40-+6dBm
Insert Loss Loss than 1dB
Uncertainty ±1dBm
Operation Wavelength (nm) 650nm
Visual Fault Locator
Operation Wavelength (nm) 650nm
Light Emitting Device FP-LD
Output Power (mw) 5mw
Modulation 0Hz,1Hz, 2Hz
Fiber Category Single Mode
Connector SC
Network Test
Download Speed 1000M
Ping Test 6 groups or setting
PPPoE Dial 6 groups or setting
DHCP Detect Display IP and Gateway
WEB Test Display WEB interface
Line Test
4 Groups Loop Resistance 1-8000 Ω
4 Groups Unbalanced Resistance 1-1000Ω
Uncertainty 5%
Line Search
Audio Hunt 800/1600HZ-10vpp
Ultra Audio Hunt 400KHz moulation 800/1600HZ-10vpp
Others
Power Supply Lithium/4000MAH
Power Adapter MicroUSb 5v/1000mA
Single-Phase Maximum Current ≤ 200mA
Standby Power ≤ 2uA
Battery Operating Time ≥ 10H
Auto-off Time (min) Adjustable
Working Temperature (°C) -10~+50
Storage Temperature (°C) -25~+70

Features

  • OTDR – full function PON OTDR that also allows Live Fiber Testing
  • LTDR – To Test Copper CAT-5/6, Cable TV Copper Cables, Electrical Wiring.
  • OPM – To Check Optical Signal Level
  • PON POWER METER – Check OLT/ONU, Useful for Internet Service Providers.
  • VFL – Check Fiber Faults Visually.
  • NETWORK TEST – No Need of Laptop to check Internet Speed & LAN Health.
  • LINK TEST – Can check Ping to the Router/Gateway.
  • LINE TEST – Check Break/Shorting Point in The Copper Cat-5/6 Cables
  • LINE SEARCH – Locate cables under the Wall or Find Cable in the Control Room.

Applications

  • Excellent service tool for FTTx
  • Broadband
  • Cable TV Service
