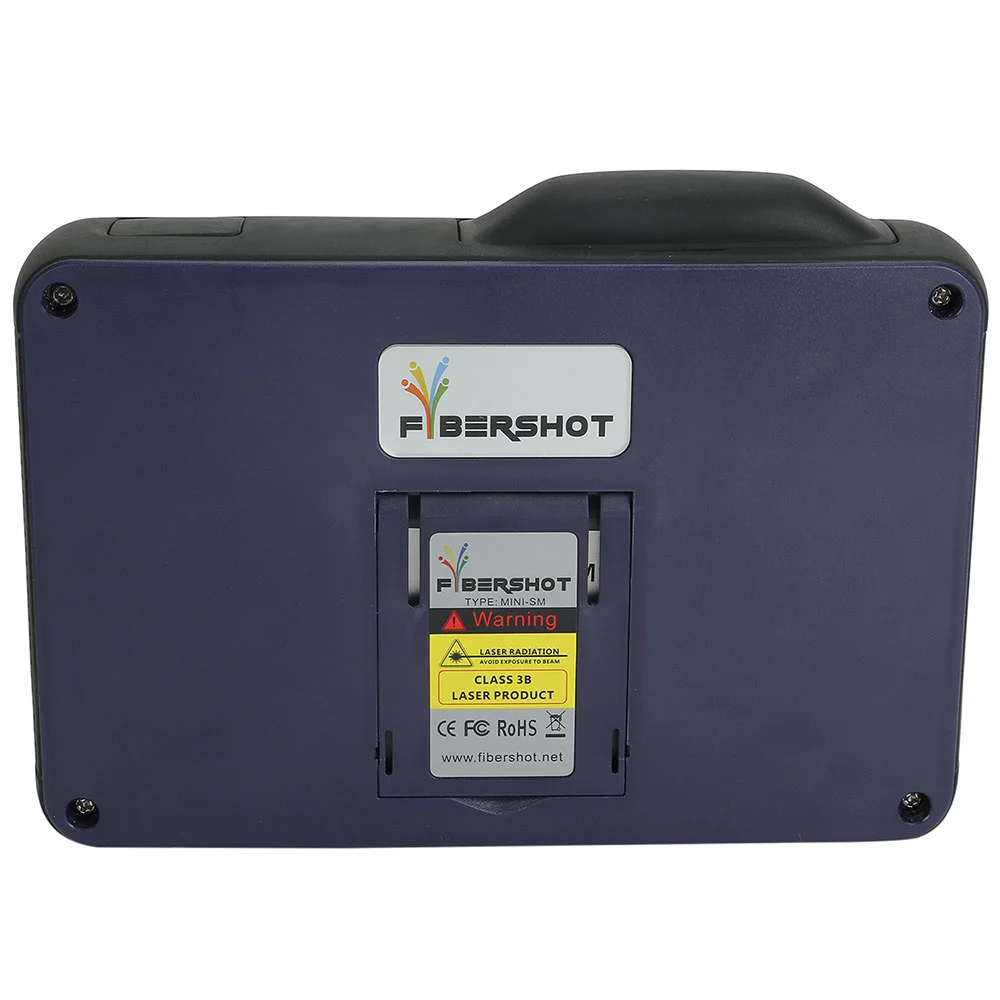

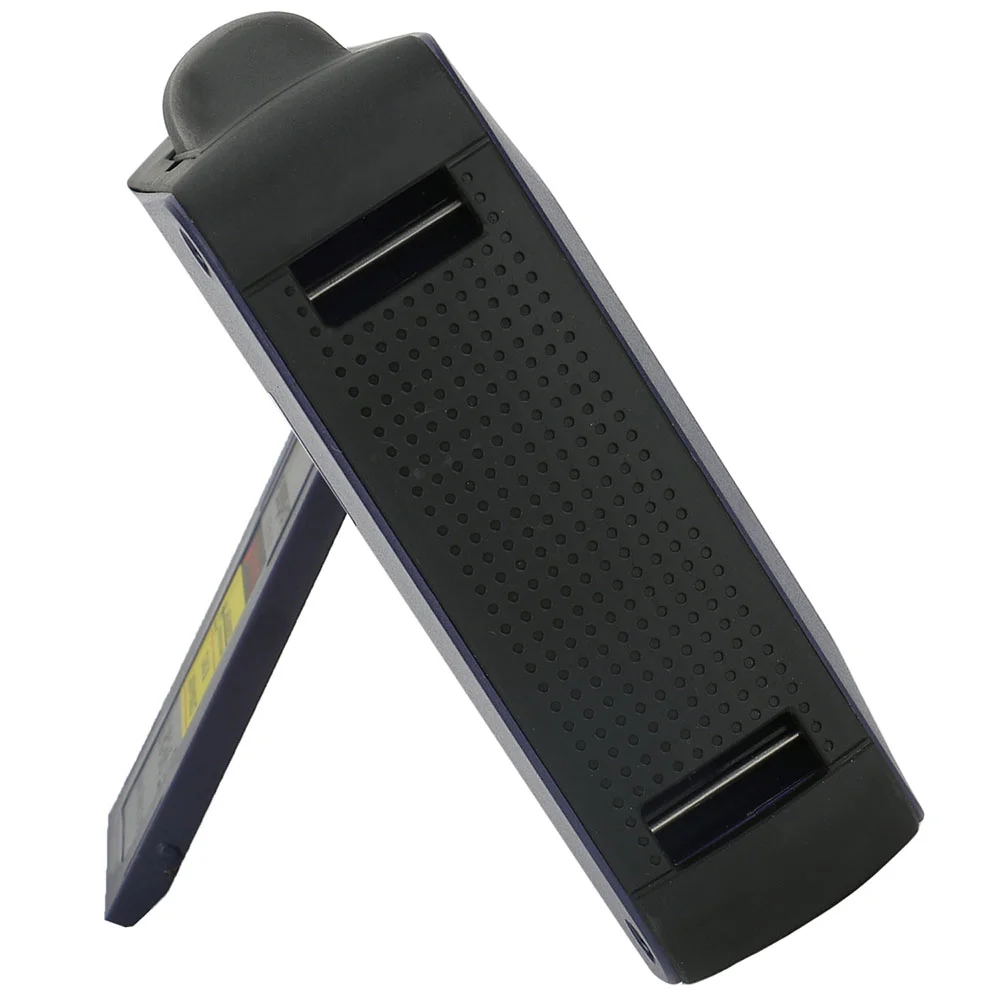

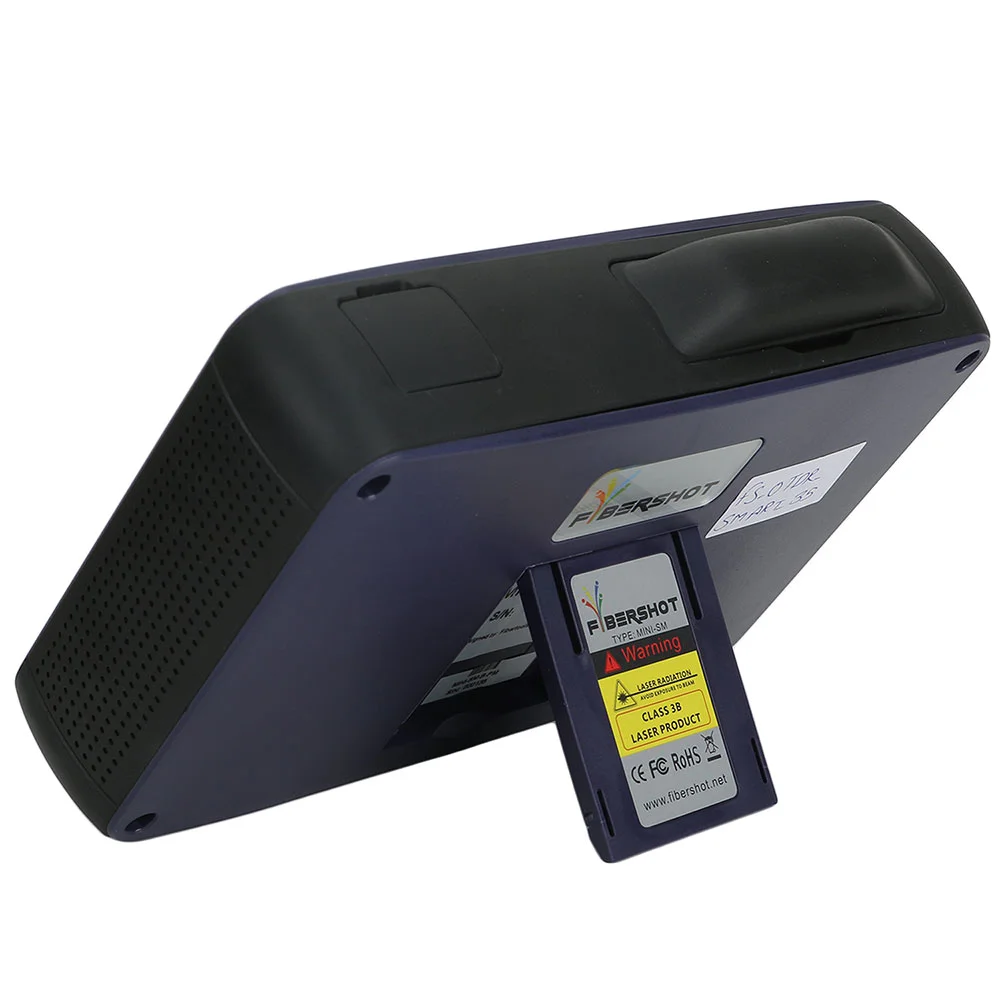

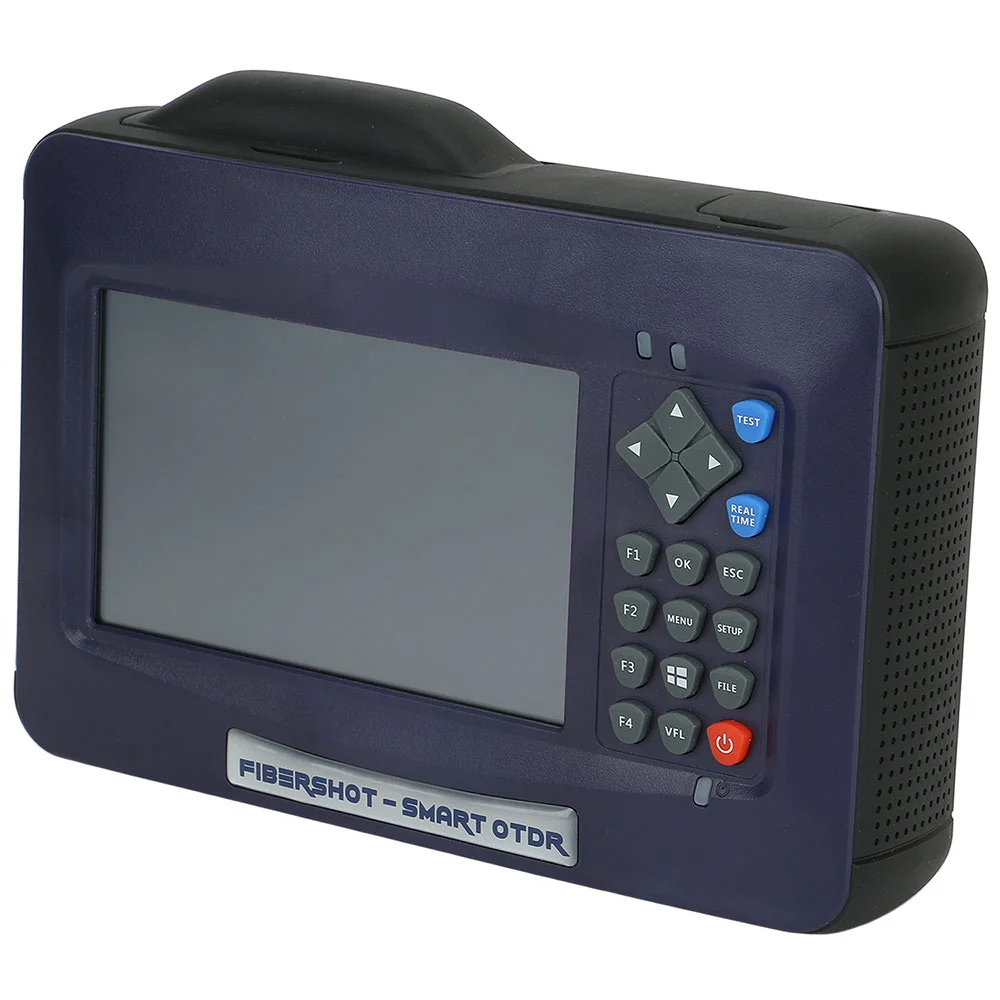

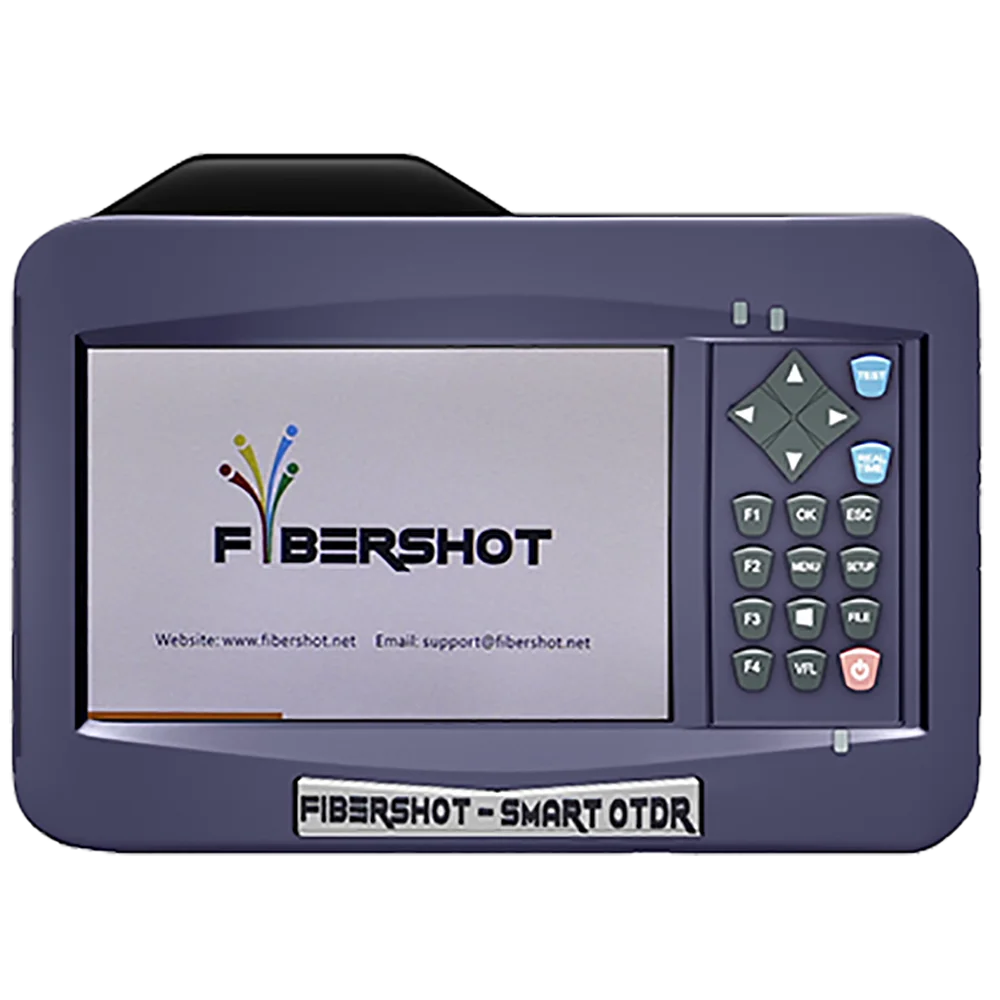

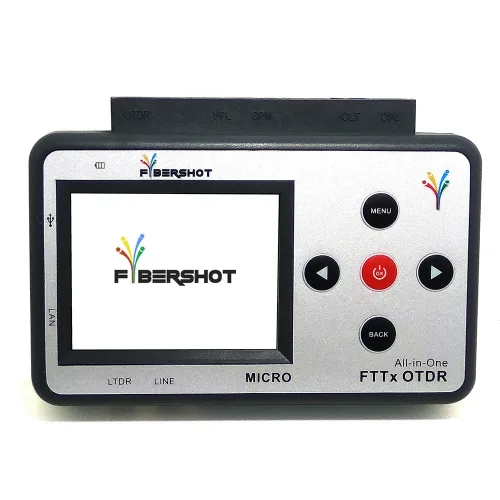

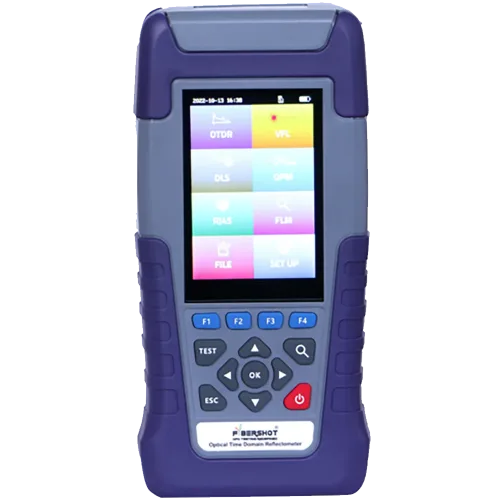

Fibershot Mini Series OTDR

Lightweight Fiber Testing Equipment for Outdoor Environments

The Fibershot Mini Series OTDR is designed for optimal performance in outdoor settings, featuring a compact, lightweight build that allows for easy one-handed operation. This Optical Time Domain Reflectometer (OTDR) offers precise fiber evaluation with a simple one-key operation, making it ideal for error-free testing. Its high resolution, affordability, and compact size make it a top choice for the installation, operation, and maintenance of optical networks, saving both time and money.

Ideal for Short Fiber Applications

Finding a cost-effective OTDR for short fiber applications can be challenging. Traditional fault locators often lack the necessary resolution for short spans, while standard OTDRs are typically large, expensive, and complex. The Fibershot Smart Series OTDR solves this problem by delivering all the essential features and performance needed for short fiber testing in a compact, handheld design. With unparalleled value and ease of use, the Fibershot Mini Series OTDR provides a high-quality, affordable solution for fiber testing. Some models even offer live fiber testing capabilities. Experience the exceptional performance and support of the best Optical Time Domain Reflectometer (OTDR) at a competitive price.

Category:

Description

Enhanced User Interface for Fiber Testing Equipment

The Fibershot Smart Series OTDR features a user-friendly interface that displays crucial metrics such as splice loss, connector loss, fiber attenuation, reflection points, link optical return loss, and distance to fiber events. This Optical Time Domain Reflectometer (OTDR) provides detailed test information in a smart and accessible way, allowing users to quickly access and interpret results.

Efficient Operation

With its simplified display style and structured menus, the Fibershot Smart Series OTDR reduces study time and improves user efficiency. Its intuitive design helps streamline the testing process.

HD Touchscreen for Clear Results

The 5-inch true color high-resolution touchscreen ensures excellent visibility of OTDR testing results, both indoors and outdoors. This advanced screen enhances readability and user interaction.

Touch and Test

The touchscreen allows for easy operation of the OTDR, even while wearing gloves. A touch pen can be used to adjust or check testing parameters, offering a smart and convenient way to operate the device.

Seamless Result Transfer

Results can be transferred to a PC or PDA via USB. The OTDR features 4GB of internal memory, capable of storing over 40,000 test results. Additionally, users can download reference traces and settings, send measurement results via email, and request remote assistance.

Specifications

Dimension 195×140.5×46mm / 0.9kg (battery included)
Display 5 inch TFT-LCD (touch screen )
Interface 3×USB port USB A Type×2, Micro-USB×1
Data Storage 40,000 groups of curves
Environmental Conditions Working Temp: -10℃~+50℃
Storage Temp: -20℃~+70℃
Humidity: ≤95% (non-condensation)
Accessories Main unit, 12V power adapter, Lithium battery, FC adapter, USB cord, User guide, CD disk, carrying case, wrist belt
Battery 7.4V/3300mAh lithium battery (with air traffic certification),
Continuously test: 6 hours (back light off)③,
Charging time: 3.5 hours
Test Parameters
Pulse Width 3ns, 5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1μs, 2μs, 5μs, 10μs, 20μs (20μs only for D35)
Testing Distance 100m, 500m, 2km, 5km, 10km, 20km, 40km, 80km, 120km, 160km, 240km
Sampling Resolution Minimum 5cm
Sampling Point Maximum 128,000 points
Linearity ≤0.05dB/dB
Scale Indication X axis: 4~70m/div, Y axis: 0.09~5dB/div
Distance Resolution 0.01m
Distance Accuracy ±(1m+measuring distance×3×10-5+sampling resolution) (excluding IOR uncertainty)
Refractivity Setting 1.2000~1.5999, 0.0001 step
VFL Module (Visual Fault Locator)
Wavelength 650nm
Power 10mw, CLASSIII B
Range 12km
Connector FC/UPC
Launching Mode CW/2Hz
PM Module (Power Meter)
Wavelength Range 800~1700nm
Calibrated Wavelength 850/1300/1310/1490/1550/1625/1650nm
Test Range -60~+5dBm
Resolution 0.01dB
Accuracy ±0.35dB±1nW
Modulation Identification 270/1k/2k Hz,Pi≥-40dBm
Connector FC/UPC



Features

  • Hand-held and portable
  • High cost performance
  • 5-inch HD touch screen
  • Simple interface and one-button testing
  • Long working hours
  • Support multi-languages
  • Live Fiber Testing (Available in Some Models)

Applications

  • CATV network testing
  • Access network testing
  • LAN/WAN network testing
  • Metro network testing
  • Lab and Factory testing
  • Real-time troubleshooting

Models

Type Testing Wavelength Dynamic Range Event/Attenuation dead-zone Live Fiber
A-32/30 1310/1550nm 32/30dB 1/4m No
B-35/32 1310/1550nm 35/33dB 1/4m No
C-35/30 1310/1625nm 35/30dB 1/4m Yes
