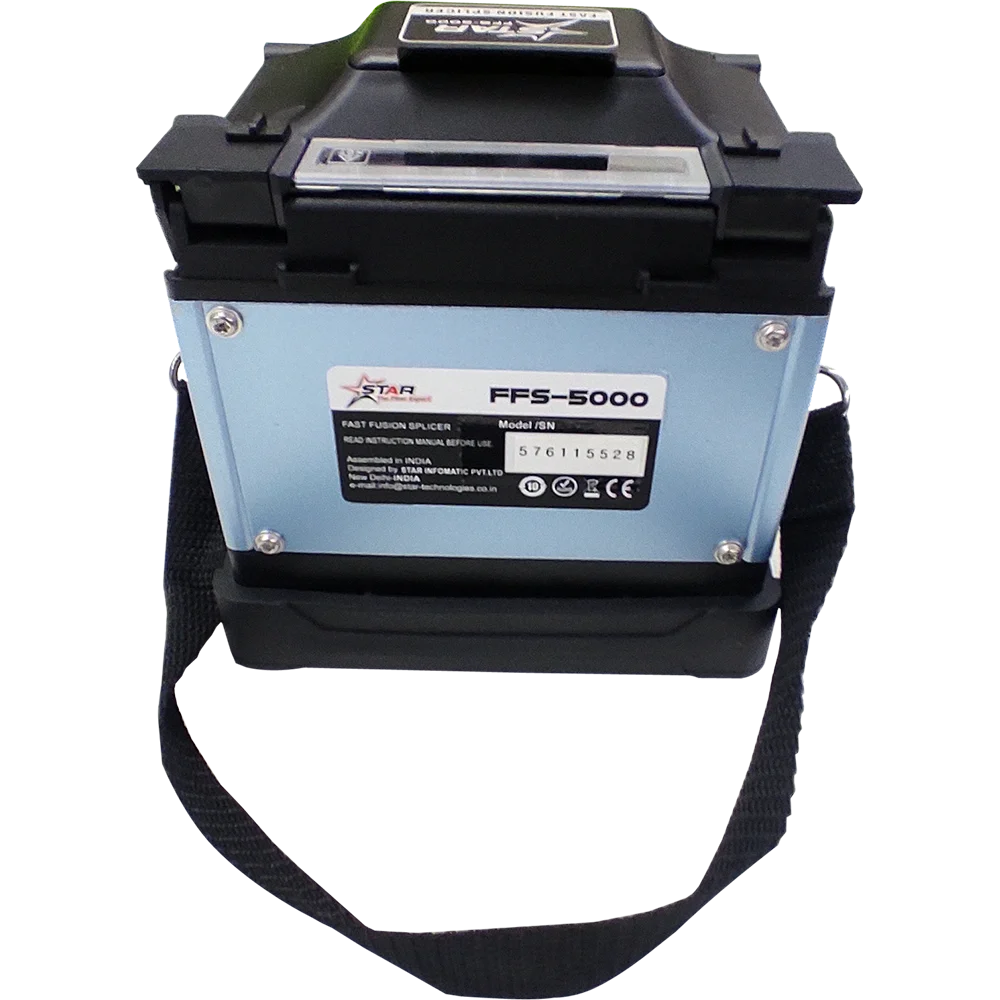

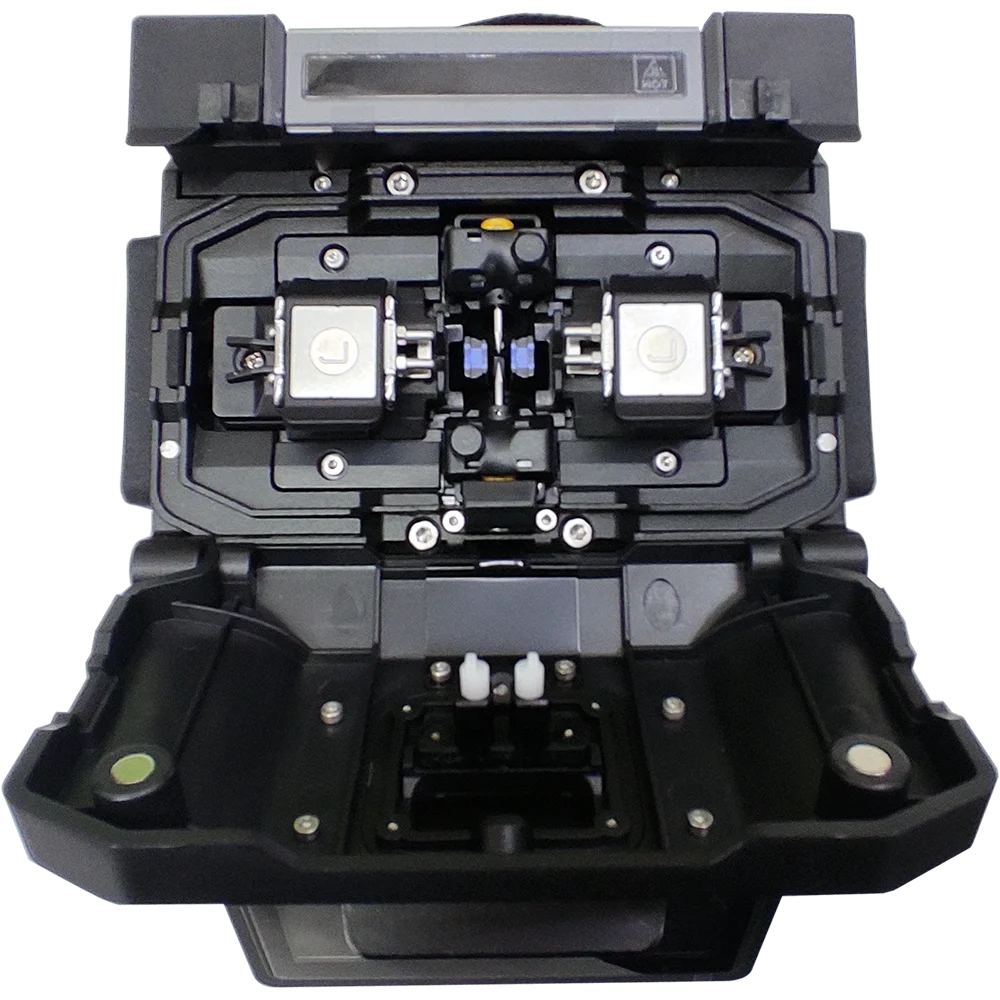

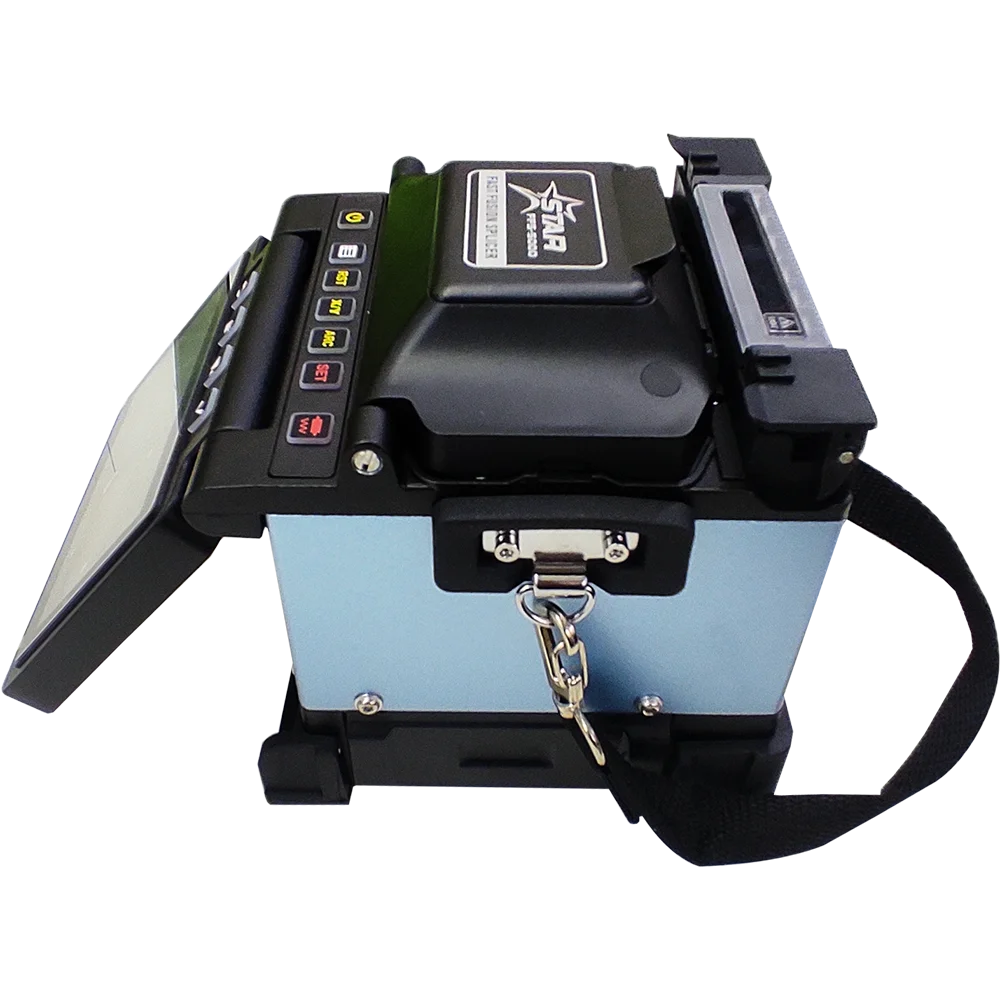

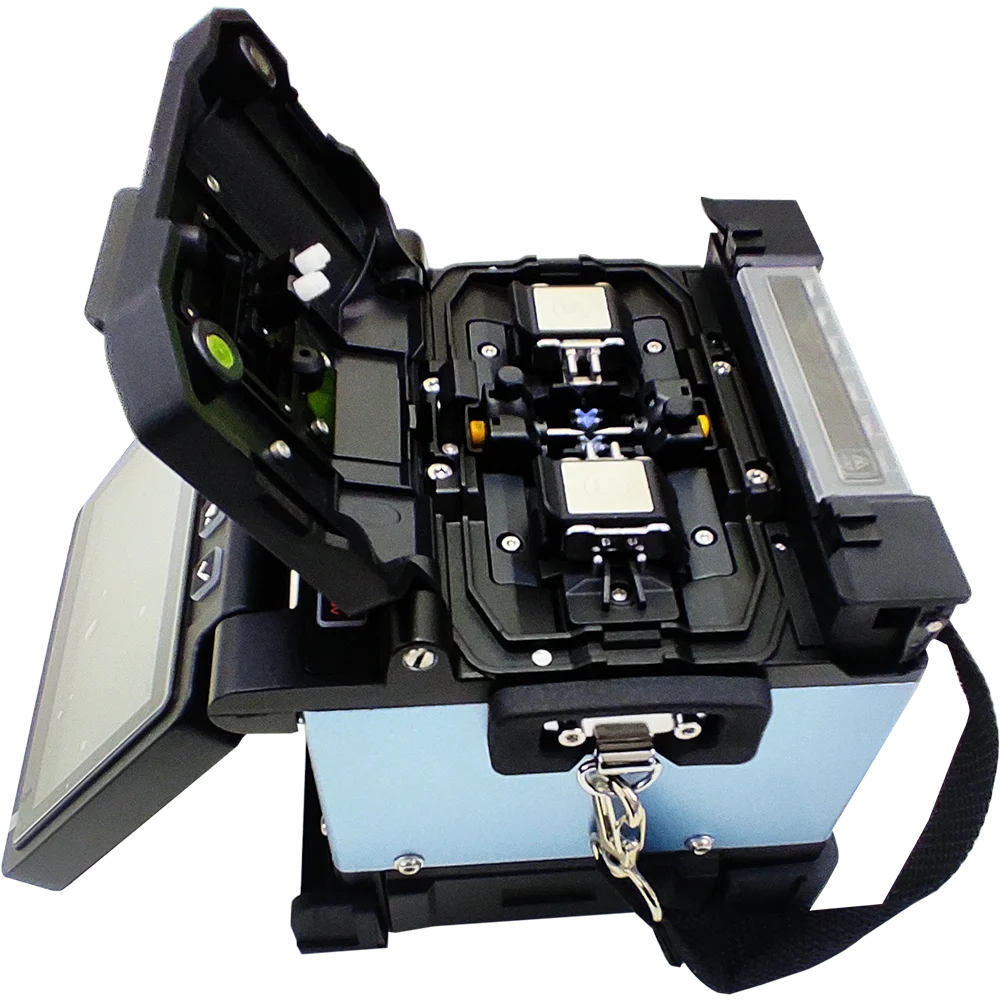

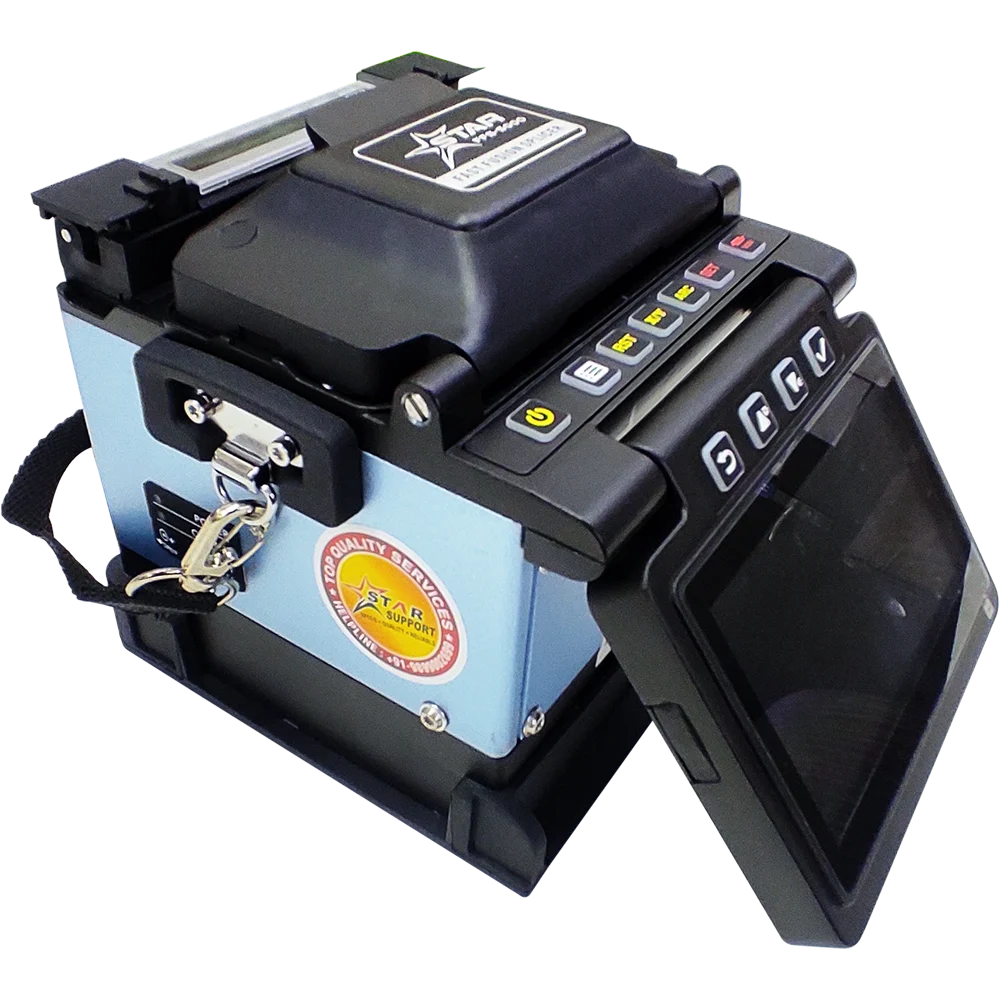

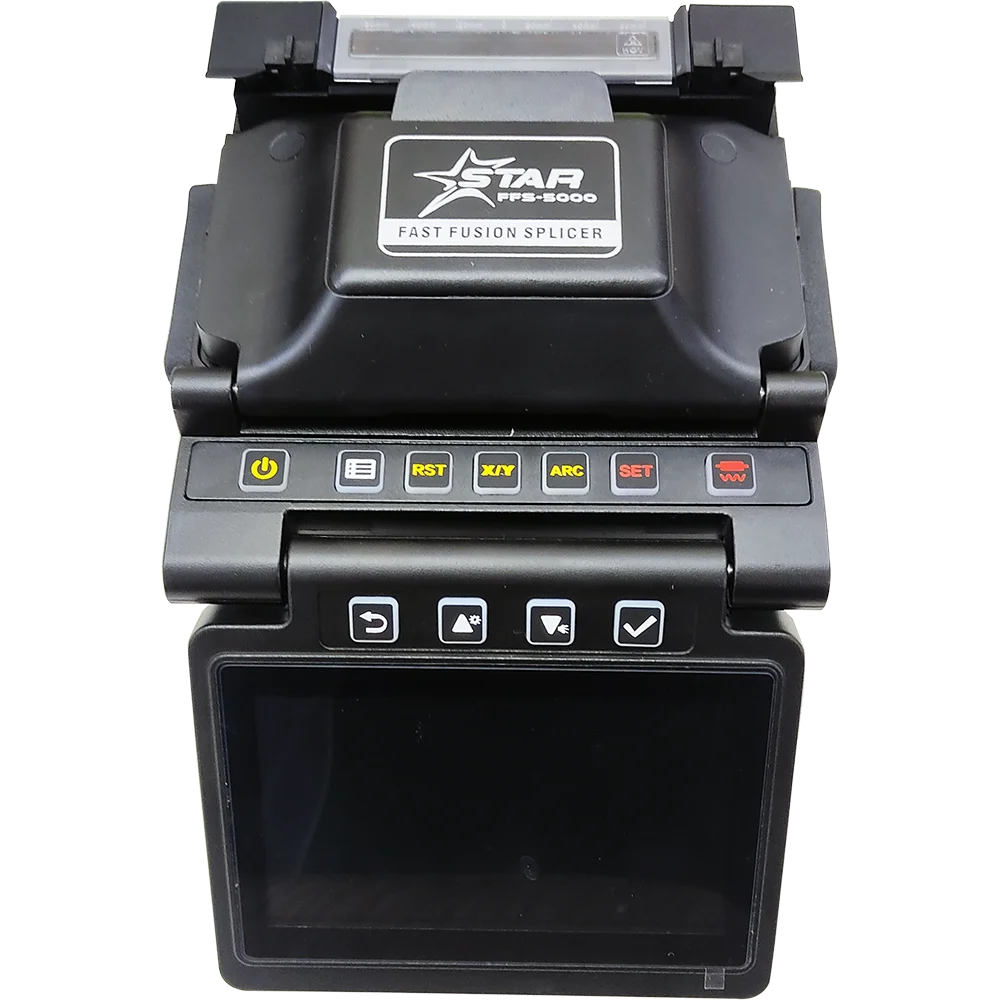

Star FFS-5000 Fusion Splicer

The Star FFS 5000 mini fiber splicing equipment is a state-of-the-art core alignment fusion splicer, offering superior accuracy and reduced loss compared to cladding alignment splicers. Compact and lightweight, this splicing machine is designed for easy transport and convenience.

With a range of advanced features, the FFS 5000 provides a user-friendly experience, allowing for precise splices with minimal effort. Additionally, it includes various safety features, making it a reliable and secure choice for professionals seeking an efficient and dependable fusion splicer.

Category: Fusion Splicers

Description

The Star FFS 5000 is a cutting-edge fusion splicer, designed to join optical fibers end-to-end using heat. This advanced splicing machine melts and fuses fibers together, creating a single, continuous fiber with precision. Ideal for both telecommunication and data communication applications, the Star FFS 5000 stands out as a top-tier fusion splicer. Equipped with the latest technology, it ensures precise and robust splices, making it the perfect choice for industrial and commercial use. If you need a reliable fusion splicer for high-quality results, the FFS 5000 is your ultimate solution.

Specifications

Applicable Fibers	Single / SMF(G.652/652D), MMF(G.651), DSF(G.653), NZDSF(G.655), G657A, G657B etc.
Cladding Dia./Sheath Dia.	80-150μm / 100-1000um
Cleave Length	8mm to 16mm
Splice Programs	Max 100
Average Splice Loss	0.02dB (SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS) and 0.02dB(BI) Measured by cut-back method relevant to ITU-T and IEC standards.
Return Loss	More than 60dB
Tube Heating Time	Typical 15sec. (Adjustable)
Splice Time	6 Sec (SM Fast) Program
Splice Loss Evaluation	Available
Tensile Test	2N
Screen	2 CMOS Camera with 4.3 inch Color LCD Non Touch for Fast Response
Optical Magnification	11.1V/6800 mAh lithium Battery, 13.5V/5A AC Adapter, 12V Car Power Supply
Battery Usage	Typical Operating 240 (splice / heat shrink) on a Single Charge 3h
Result Storage	Max 20000 Records
Electrode Life	5000 splices
Data Interface	USB2.0, PC Software Upgrade / Data Management
Operating Condition	Altitude : 0 to 5,000m above sea level, Wind : 15m/sec Temperature : -20 to 50 deg C, Humidity : 0 to 95%RH, non-dew
Weight	1.5kg (Without Battery), 1.8kg (Including Battery)
Size	136D×141W×136H(mm)
Weather Protection	Shock Resistance, Dust Resistance and Rain Resistance
