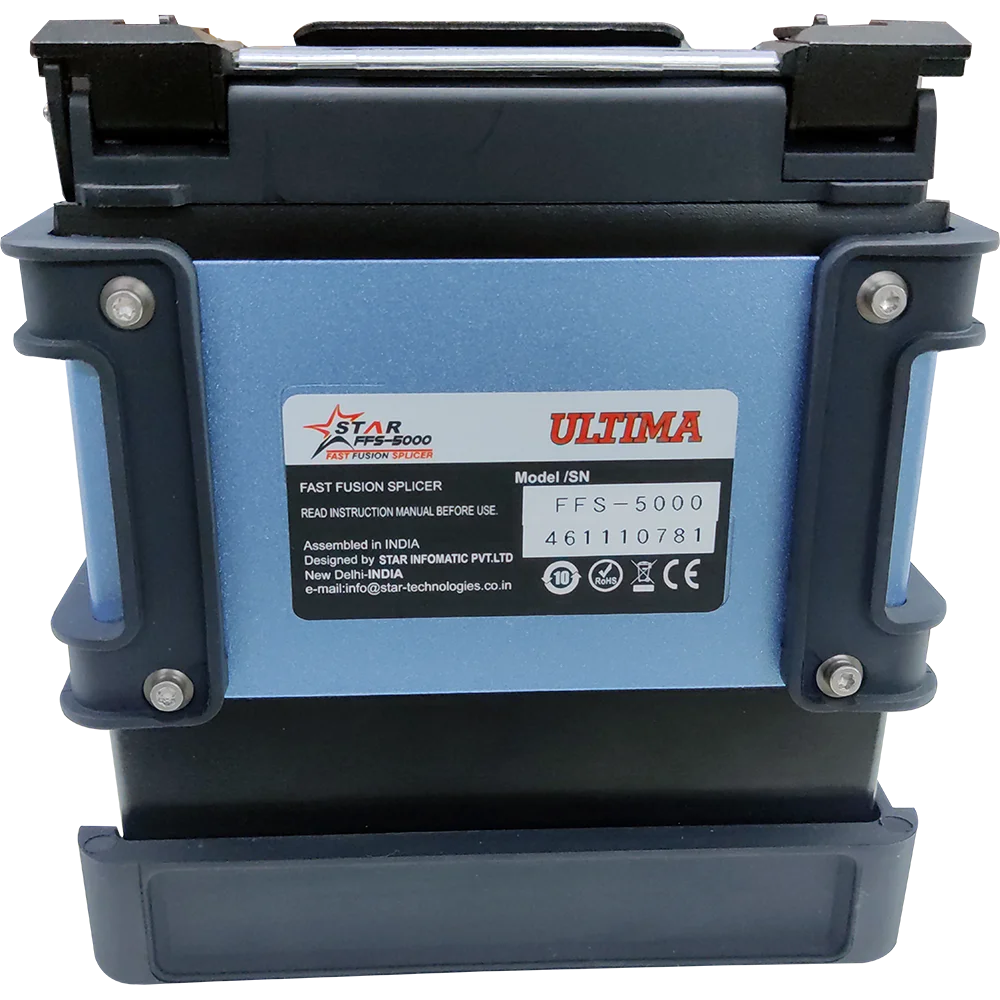

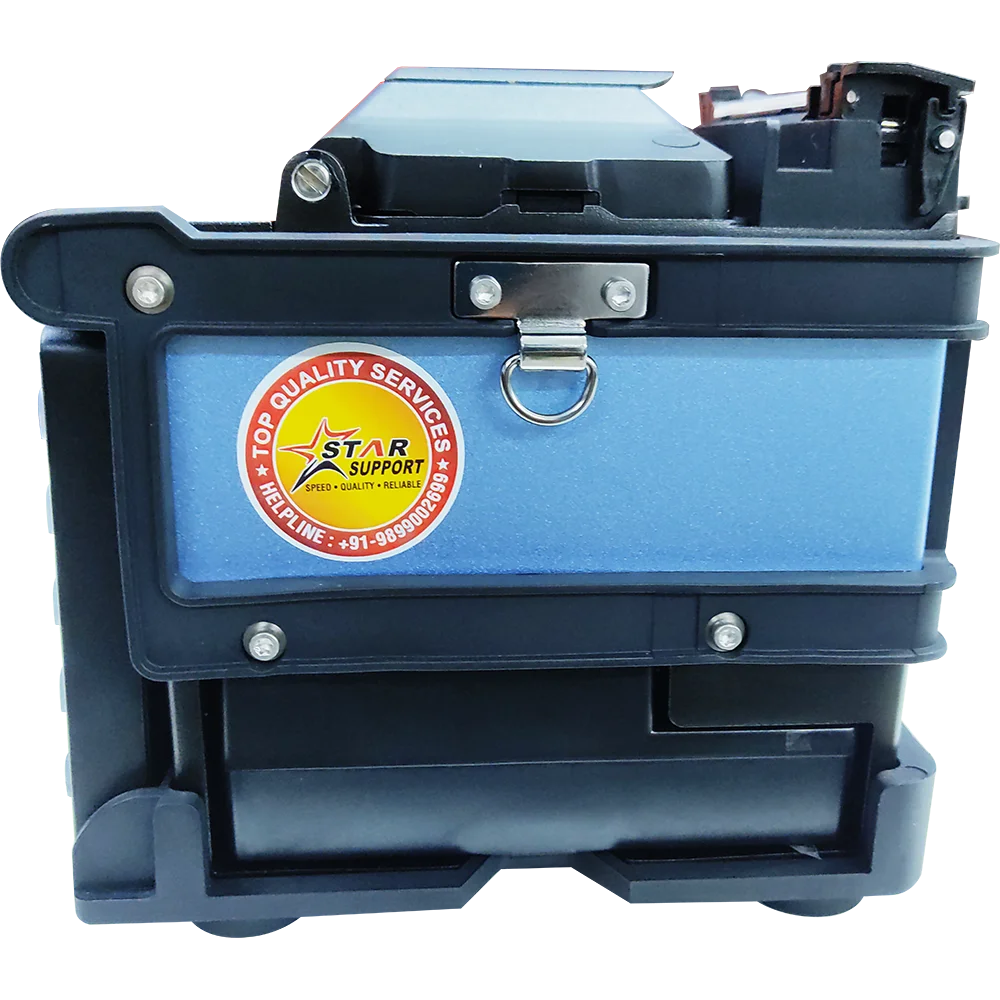

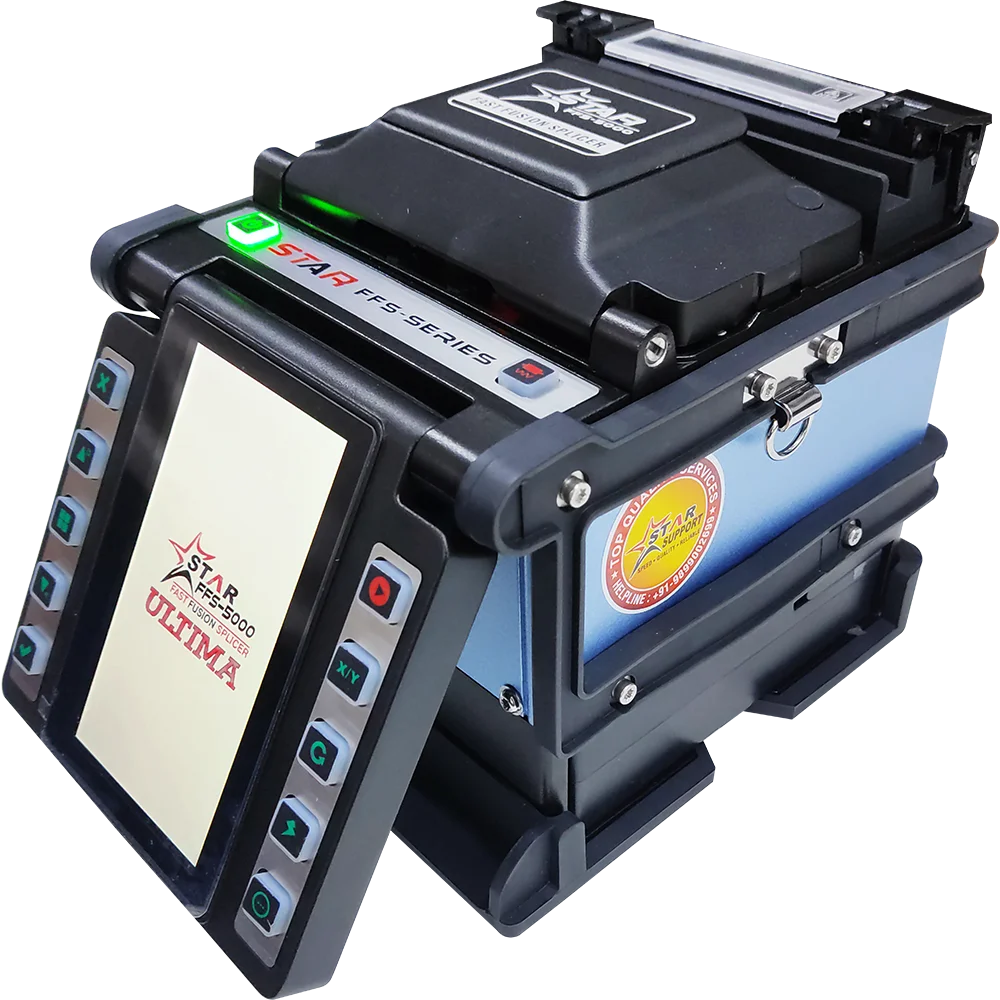

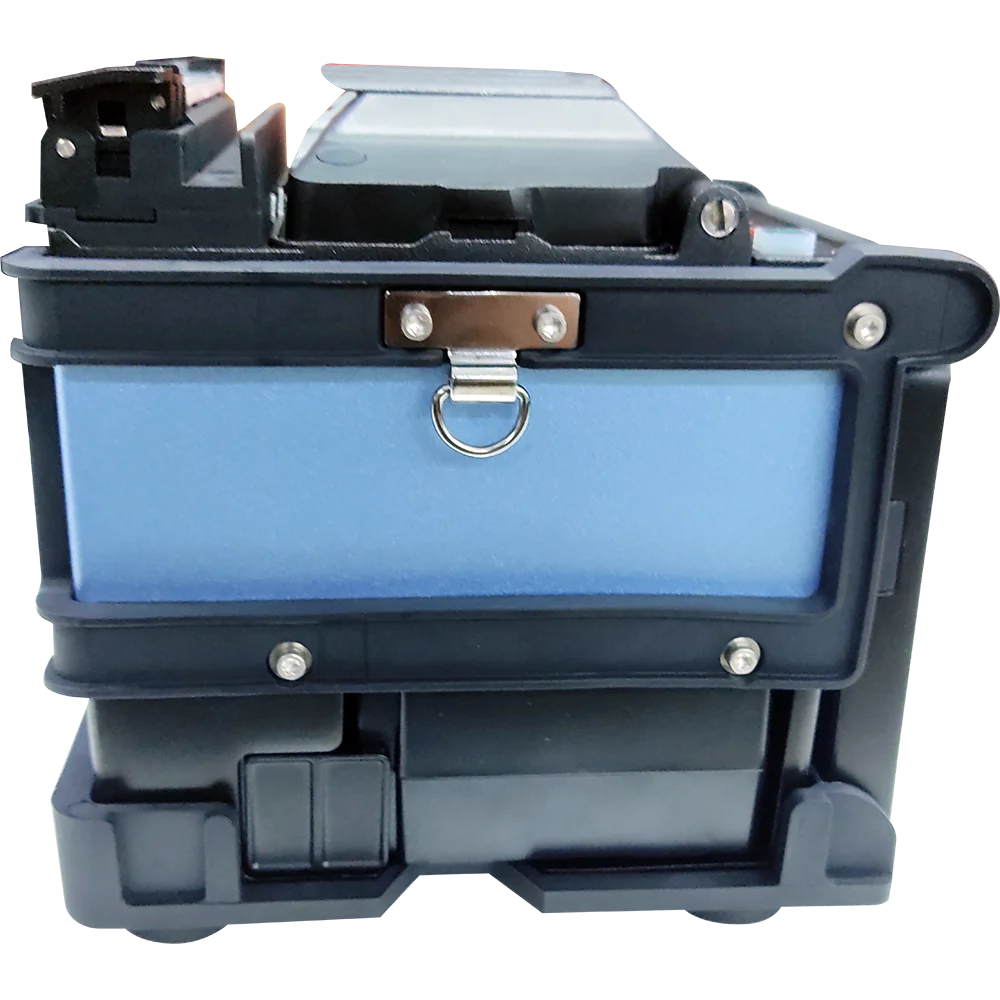

Star FFS-5000 Ultima Fusion Splicer

The Star FFS-5000 Ultima Optical Fiber Fusion Splicer is a versatile fusion splicer designed for precise and consistent fiber optic cable splicing. Ideal for both field and workshop use, this splicing machine offers exceptional performance and high splicing efficiency.

With the ability to complete over 300 splices on a single charge, the FFS-5000 Ultima features a fast DC charger for quick recharges and supports dual voltage with automatic voltage detection. Its innovative energy-saving air-cooled dual thermal protection design ensures smooth operation without electromagnetic interference. This all-in-one fusion splicing system includes all necessary components for accurate optical fiber splicing, and its core detection system effectively identifies broken fiber ends, making it a top choice for reliable and efficient splicing in various applications.

Category: Fusion Splicers

Description

The Star FFS-5000 Ultima Optical Fiber Fusion Splicer is a premier fusion splicer designed for reliable and efficient optical fiber cable splicing. Essential for optical cable maintenance and construction, this splicing machine features a high-capacity lithium-ion battery, DC charging capabilities, and a USB 2.0 multi-functional fiber holder. It ensures seamless splicing of couplers, patch cords, and various fiber types.

Renowned for its quality and performance, the FFS-5000 Ultima stands out among splicing machines in high demand. Its advanced technology and cost-effectiveness make it a top choice for businesses seeking superior fiber optic splicing solutions without breaking the bank. This optical fiber splicing machine combines cutting-edge features with affordability, making it a valuable asset in today’s dynamic industry.

Specifications

Splicer Type	Single Fiber Fast Fusion Splicer
Fiber Alignment	High Precision PAS Alignment
Applicable Fibers	Single / SMF (G.652/652D), MMF (G.651), DSF (G.653), NZDSF (G.655), G657A, G657B etc.
Splicing Time	6 Sec. [SM Fast] Program
Heating Time	13 Sec. (Adjustable) Sleeve 60mm, Sleeve 40mm Coating
Splice Loss	Low Loss Joining: Average – 0.01db (SMF), 0.01db (MMF), 0.01db (NZ/DS)
Heating Programs	30 Pre Set Program & User Definable
Cleave Length	5mm to 16mm
Splicing Programs	100 Pre Set Program & User Definable
Splice Data Storage	25000 Results
Tension	2N
Screen	5 inch High Definition LCD Colour Screen
Fiber Magnification	320x for X or Y single axis view, 150x for both X&Y dual axis view
Loss Estimation	Provided
Electrode Life	5500 arc discharges
Operating Condition	Altitude 05500m, Humidity 095%, Temperature -20 to +60 Degrees Centigrade & Wind Velocity up to 15 m/sec
Power Supply	AC to DC Adaptor 100-240v, 50/60Hz & 12V Car Charger Type Power Adaptor
Battery Parameters	5600mAh High Capacity Li-Ion Battery
Port	DC Charging, USB 2.0
Size & Weight	(155x135x150) mm (1.8)kg (2.2kg with battery)

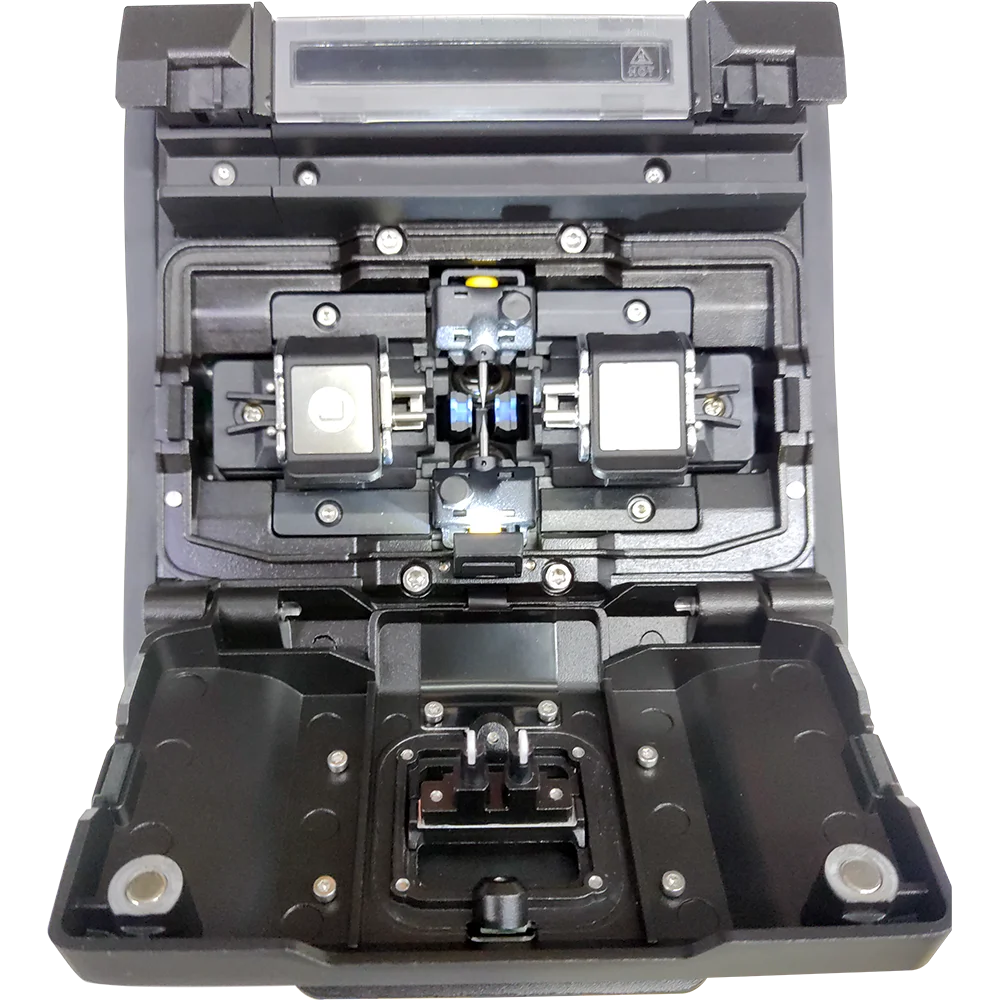

Holder Type	Multi-functional Fiber Holder for Easy Splice of Couplers, Patch Cords & All Fiber Types
Durability	Shock Resistance, Dust Resistance and Water Resistance
Battery Usage	Typical Operating More than 300+ (splice / heat shrink) on a Single Charge of 3 hours
